Yakima FullSwing 4 - Operation and Final Checks; Accessing Vehicle Rear; Pre-Drive Safety Inspections

“click”
1033275E-4/15

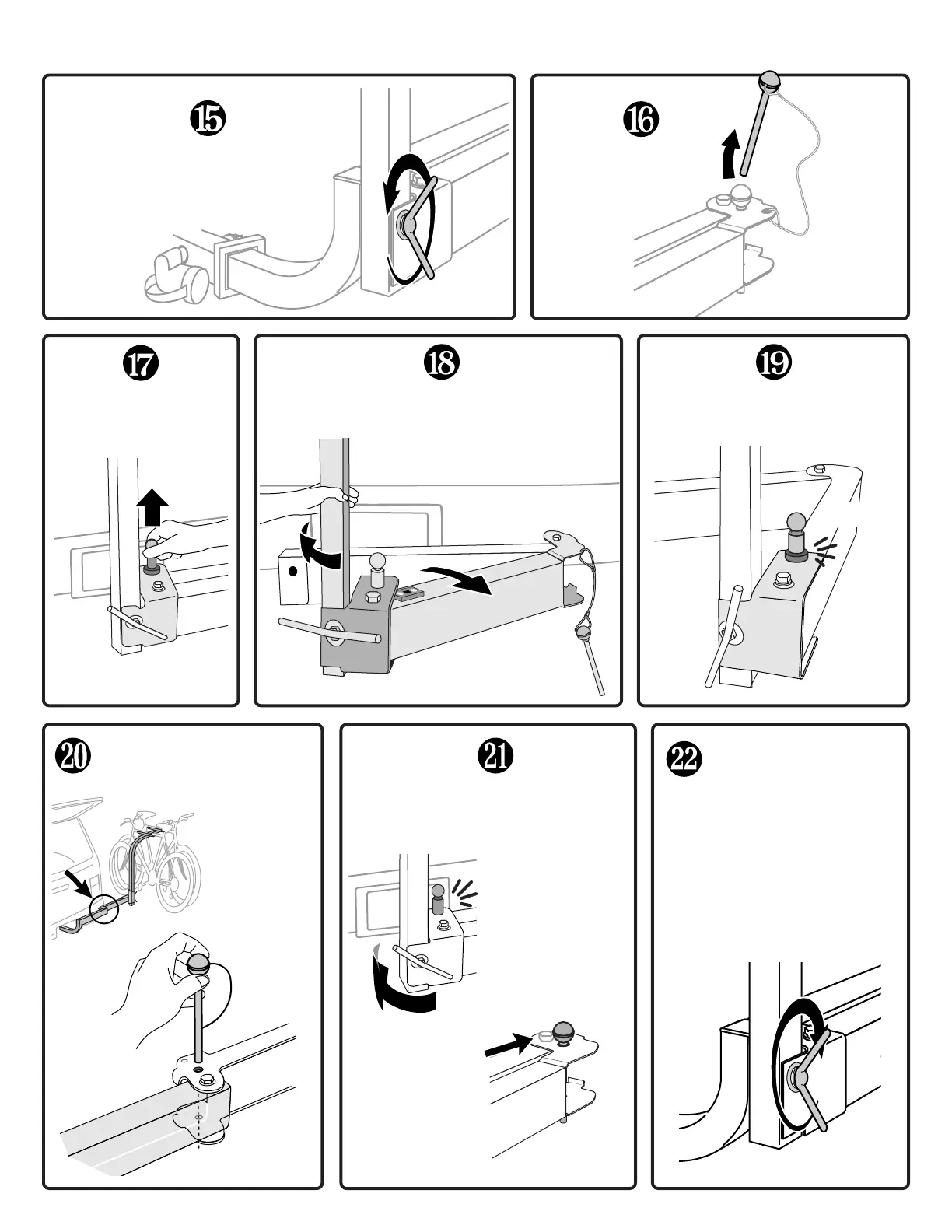

ACCESSING REAR WHEN BIKES ARE LOADED
Lift spring pin…
LOOSEN WING BOLT
COMPLETELY.
Stabilize loaded arm
by inserting ball-pin
into hole.
BEFORE
DRIVING
AWAY
• Çlose gate and tighten
large wing bolt.
• Perform Safety Checks
(next step).
You should hear a click as
mast snaps into place.
REMOVE
BALL-PIN.
Pull gate away from vehicle,
while rotating mast…
CLOSE THE GATE.
You should hear a
click as mast
snaps into place.
Replace the
ball-pin.
