Delayed Egress
7100, 7200 Series Exit Device
Installation Instructions
8094700162000 10/20
12

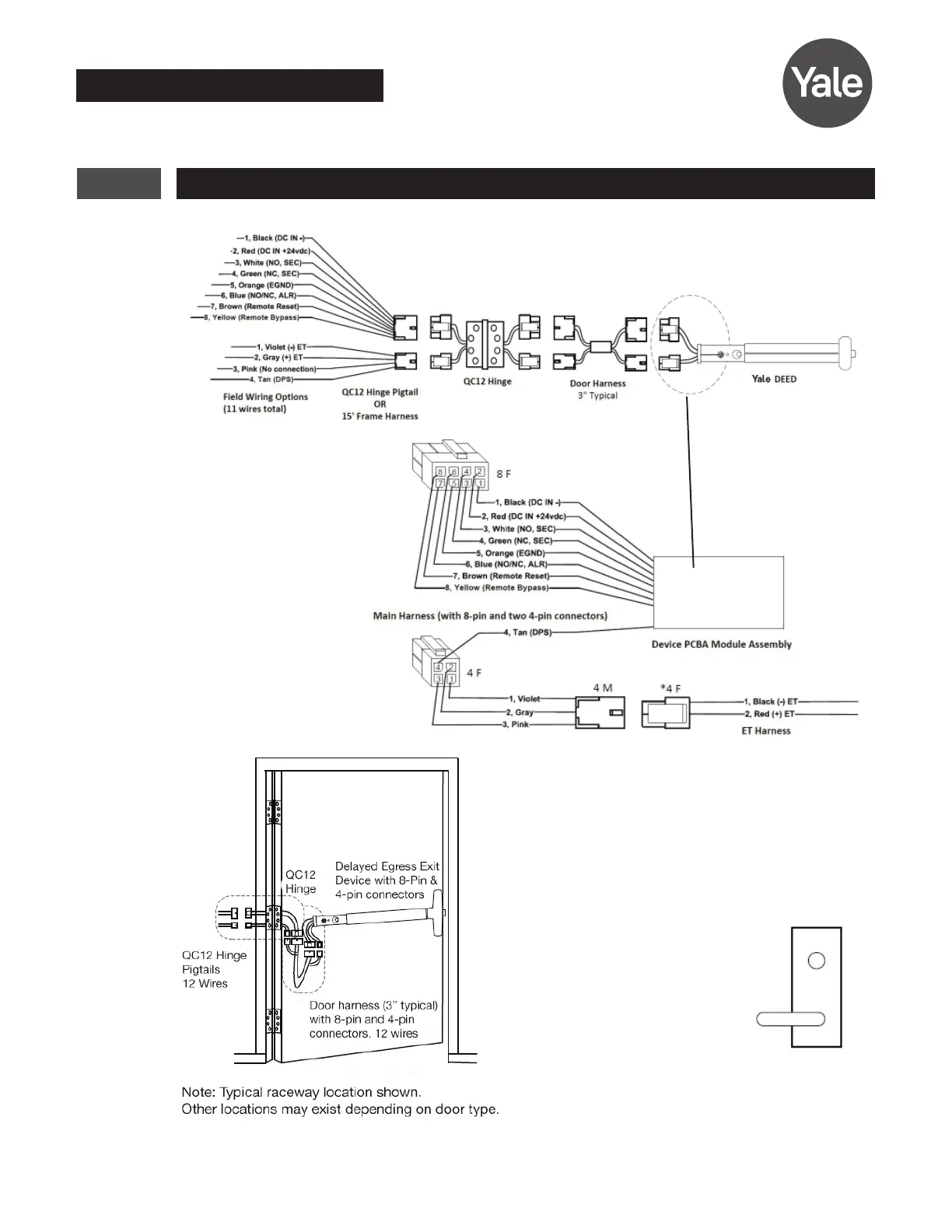

ElectroLynx Wiring Deed with Electrified Trim (ET) Option and QC12 Hinge
QC12 Hinge - Field Wiring
Options
Wiring to 8-pin and 4-pin
connectors is REQUIRED
(12 wires max).
• If external DPS wiring
is NOT REQUIRED, set
PCBA Dip Switch S2-7
ON.
• If external DPS wiring
is REQUIRED, set
PCBA Dip Switch S2-7
OFF.
Supplied with DEED when ordered Fail Safe or
Fail Secure Electrifi ed Trim (ET)
*Requires field to route two wires from ET through
the chassis and the wire channel in back of rail then
install loose Molex Female 4-pin(*4F) connector
(supplied) onto pre-crimped female terminals onto
Black wire pin 4-1, Red wire pin 4-2.
690F Electrified Trim (ET)
Fail Safe
Or
691F Electrified Trim (ET)
Fail Secure
To Next Page
