Yale Assure Lock YRD450 User Manual

Part of ASSA ABLOYP/N YRD400-KF-0022 Rev ATrusted every day
7

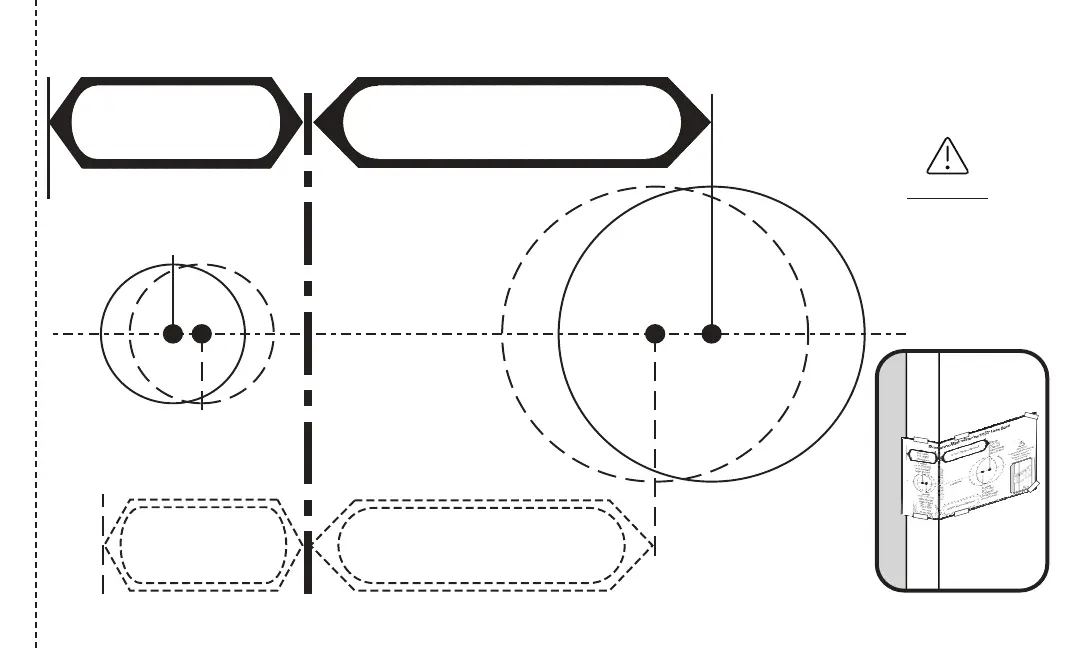

Template to Mark a Door for 21/8" Face Bore
FOLD OVER DOOR
EDGE
Centerline
Center
of 1" (25mm)
hole through
edge of door
For 1-3/8"
35mm()
Thick Door
2-3/8" 60mm Backset()
2-3/4" 70mm Backset()
For 1-3/ "4
mm(44.5)
Thick Door
Center
of 2-1/8" (54mm)
hole through face
of door
Center
of 2-1/8" (54mm)
hole through face
of door
Center
of 1" (25mm)
hole through
edge of door
Door
CAUTION:
If printed from electronic file,
Measure a dimension
to check scale.
set print scale to 1:1.
Cut Here

Yale Assure Lock YRD450 Specifications

General

Brand	Yale
Model	Assure Lock YRD450
Category	Locks
Language	English
