Hardware Troubleshooting
Helpful Tip:
Ensuring smooth deadbolt operation can enhance your battery life.
If you feel resistance, ensure deadbolt
strike plate aligns with deadbolt. If deadbolt
strike plate is out of alignment, please
attempt to adjust knob/lever/handleset
strike using steps below. The
knob/lever/handleset latch engagement into
the strike is the main component used for
door alignment.
If deadbolt does not fully extend, consider
increasing depth of deadbolt strike pocket
in frame.
To adjust Knob/Lever/Handleset strike
plate:
1. Remove plate from door frame with a
manual screwdriver. (Using an electric
driver may strip screw heads or enlarge
screw holes.)
2. Locate strike plate tab.
Bend the tab towards surface of
strike. Note: a small change may be all
that is required
3. Reinstall strike plate using a manual
screw driver and test again.
4. If door cannot be adjusted sufficiently
with strike tab, both
knob/lever/handleset latch and deadbolt
latch could require adjustment – we
suggest you contact a local locksmith
for assistance.

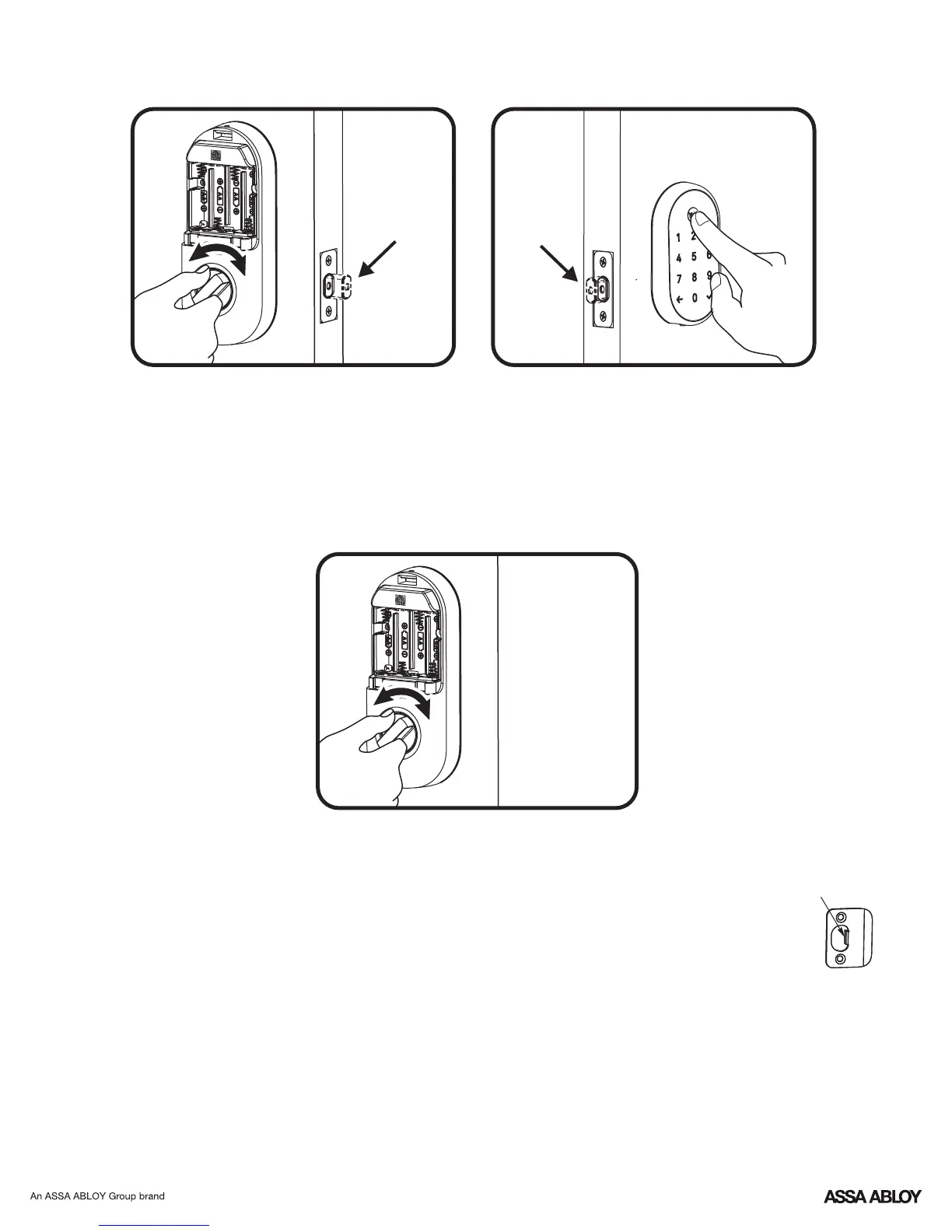

Thumbturn
Door Open
Keypad
Door Open
If deadbolt does not extend or retract easily when testing thumbturn and keypad operation,
revisit inside and outside lock installation steps. It is important that the bolt be in the
retracted position during lock installations and that installation procedure is followed
carefully.
Thumbturn
Door Closed
Test with door
closed using
thumbturn.
To Next Page
