3.3 Front view

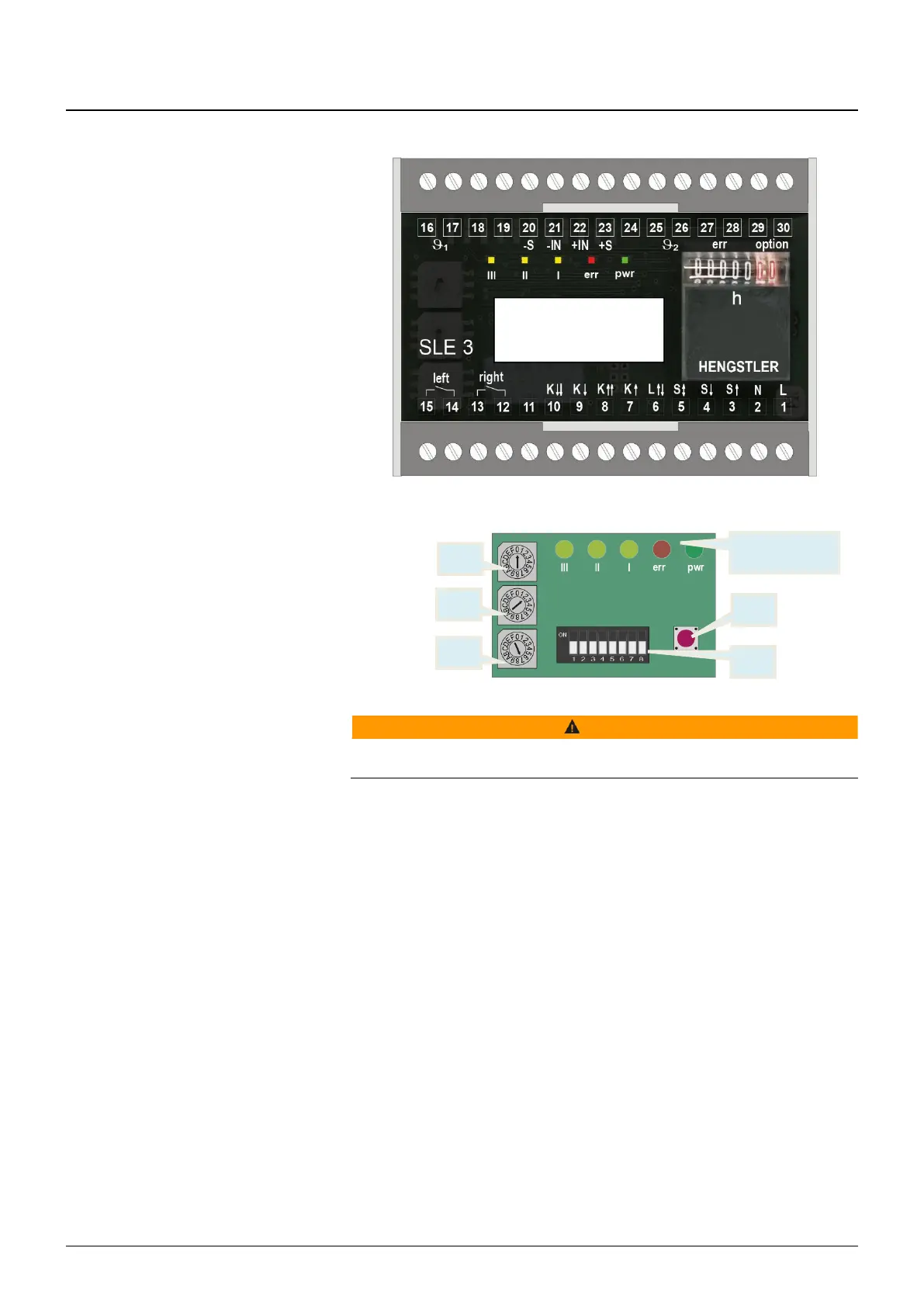

Display board
S1: Selector switch motor management
S4: Setting cut-off point, rough
S2: Setting cut-off point, fine
S3: DIP switch: to activate the testing bay
functions, relay operation and motor man-
agement
S5: Enter button: e.g. crane test
WARNING
The setting of the stored cut-off point may only be changed by a qualified person.
Unauthorized changes will void the warranty!
S1
S4
Signaling and
status LEDs
S5
S3
S2
