15
P/N YRD604-KD-BLE-0047 Rev A

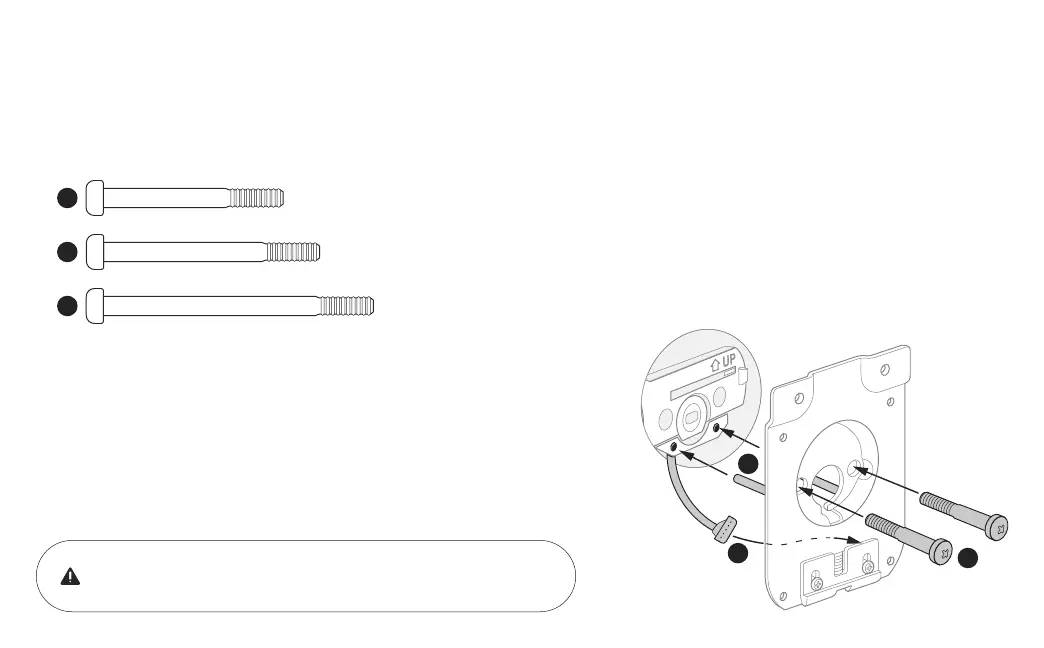

1. Refer to measurements B, C, and D on the Door Checker (page 5) to select screws.
x 2 Teal Screws (13/8” door thickness)
x 2 Black Screws (13/8” - 13/4” door thickness)
x 2 Silver Screws (13/4” - 21/4” door thickness)
B
2
3
4
C
D
4
Install Mounting Plate
2. Route the wire cable into the designated slot in the mounting plate.
3. Guide posts of the mounting plate into the holes on the exterior keypad.
4. Tighten screws with a screwdriver to secure the mounting plate. As you tighten
the screws, make sure the mounting plate and the keypad are straight.
Ensure that the wire cable is not pinched to prevent it from
reducing your lock’s battery life.
