FRONT BRAKE ADJUSTMENT
3. Install:
● Diaphragm
● Reservoir cap
NOTE:
If bleeding is difficult, it may be necessary to
let the brake fluid system stabilize for a few
hours. Repeat the bleeding procedure when
the tiny bubbles in the system have disap-
peared.
j. Add brake fluid to the level line on the res-
ervoir.
WARNING
Check the operation of the brake after
bleeding the brake system.
EC362040

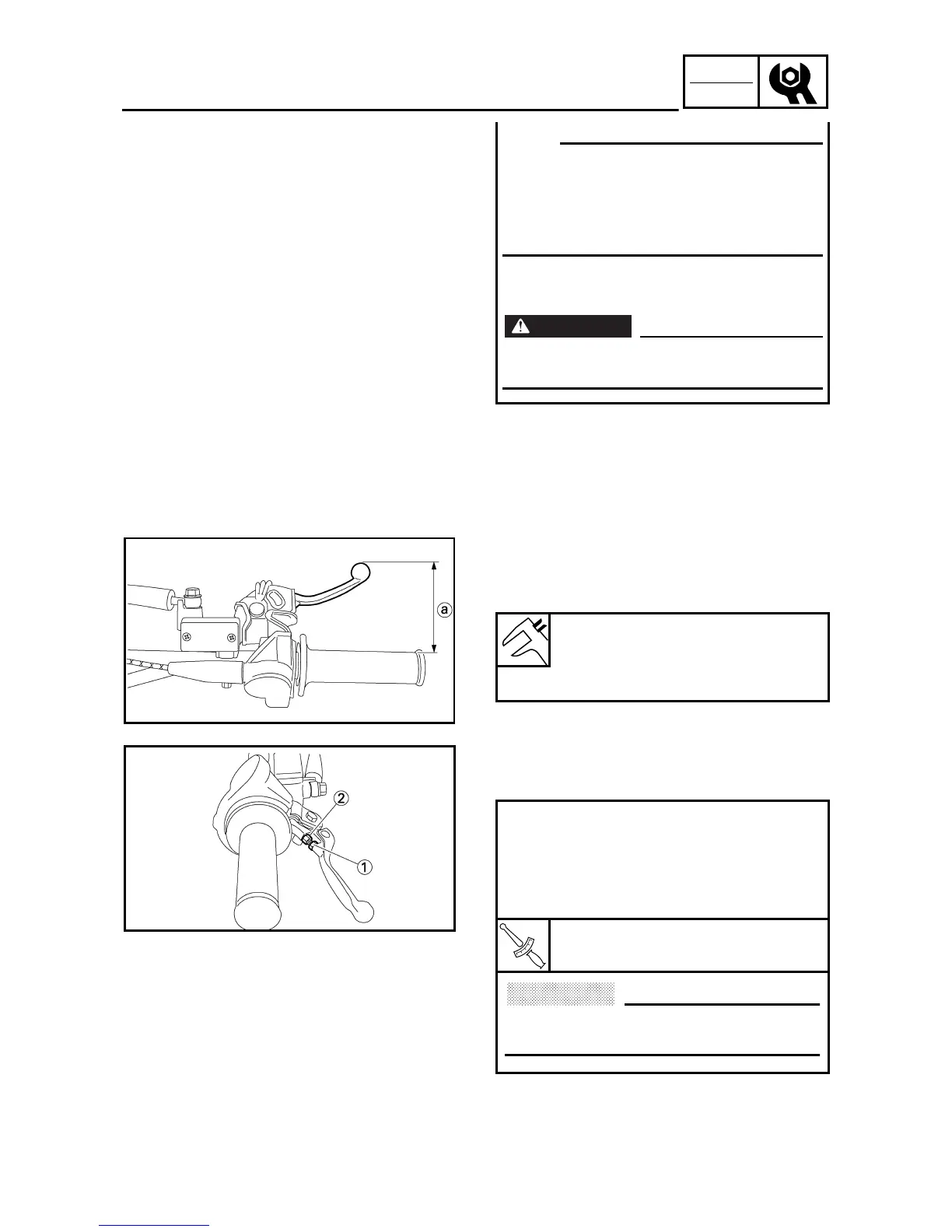

FRONT BRAKE ADJUSTMENT
1. Check:
● Brake lever position a
2. Remove:
● Lever cover
3. Adjust:
● Brake lever position
4. Install:
● Lever cover
Standard brake lever position:
95 mm (3.74 in)
Extent of adjustment:
76 ~ 97 mm (2.99 ~ 3.82 in)
Brake lever position adjustment steps:
● Loosen the locknut 1.
● Turn the adjusting bolt 2 until the lever
position a is within specified position.
● Tighten the locknut.
T
R
.
.
Locknut:
5 Nm (0.5 m • kg, 3.6 ft • lb)
CAUTION:
Be sure to tighten the locknut, as it will
cause poor brake performance.
5PA30310
5PA30320
