4 - 47
ENG
EC4L5000

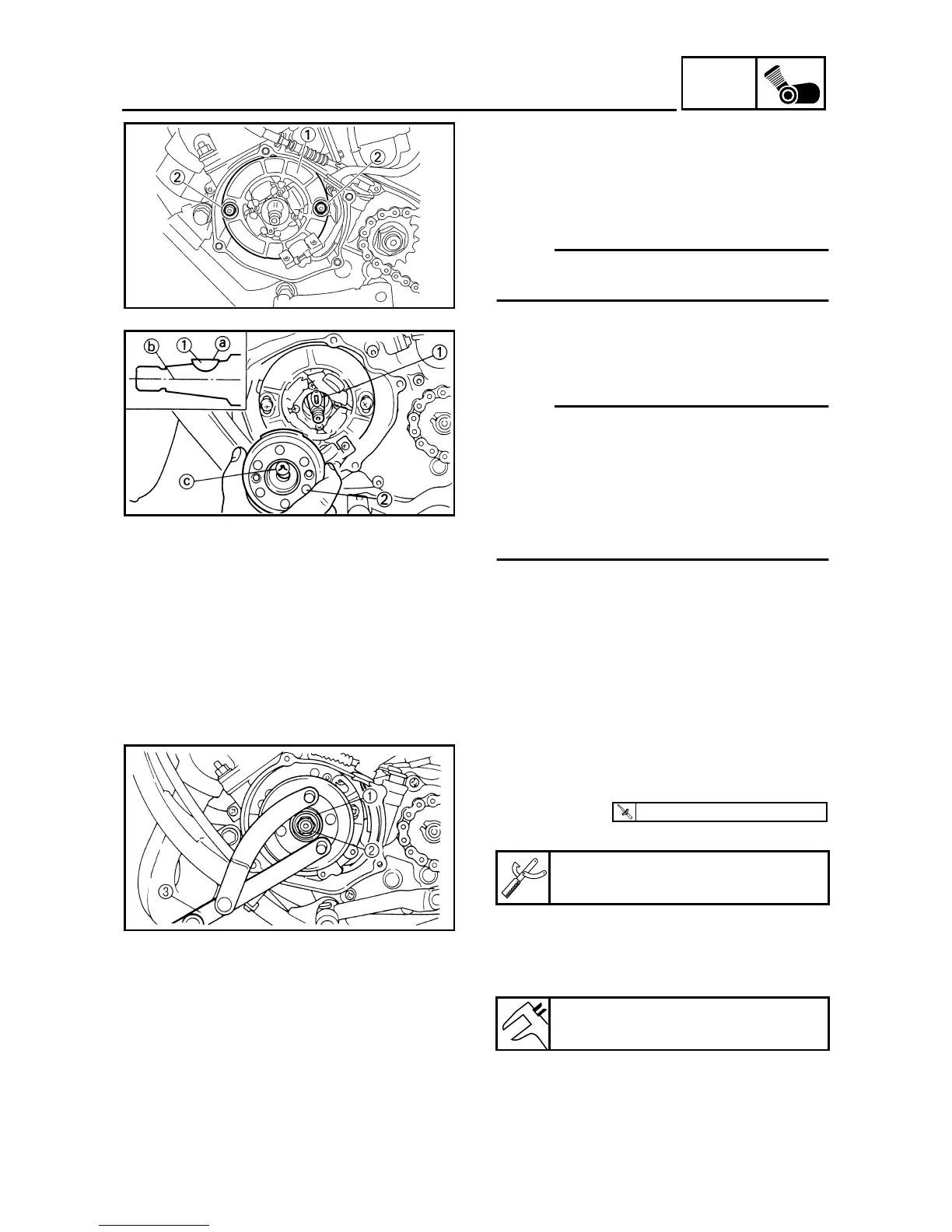

ASSEMBLY AND INSTALLATION
CDI magneto
1. Install:
● Stator 1
● Screw (stator) 2
NOTE:
Temporarily tighten the screw (stator) at this
point.
5PA41430
2. Install:
● Woodruff key 1
● Rotor 2
NOTE:
● Clean the tapered portions of the crankshaft
and rotor.
● When installing the woodruff key, make sure
that its flat surface a is in parallel with the
crankshaft center line b.
● When installing the rotor, align the keyway c
of the rotor with the woodruff key.
5PA41440
3. Install:
● Washer 1
● Nut (rotor) 2
Use the rotor holding tool 3.
Rotor holding tool:
YU-1235/90890-01235
5PA41450
T
R
.
.
33 Nm (3.3 m · kg, 24 ft · lb)
4. Adjust:
● Ignition timing
Refer to “IGNITION TIMING CHECK” sec-
tion in the CHAPTER 3.
Ignition timing (B.T.D.C.):
0.9 mm (0.035 in)
CDI MAGNETO
