KICK SHAFT, SHIFT SHAFT AND PRIMARY DRIVE GEAR
KICK SHAFT, SHIFT SHAFT AND PRIMARY DRIVE GEAR
PRIMARY DRIVE GEAR

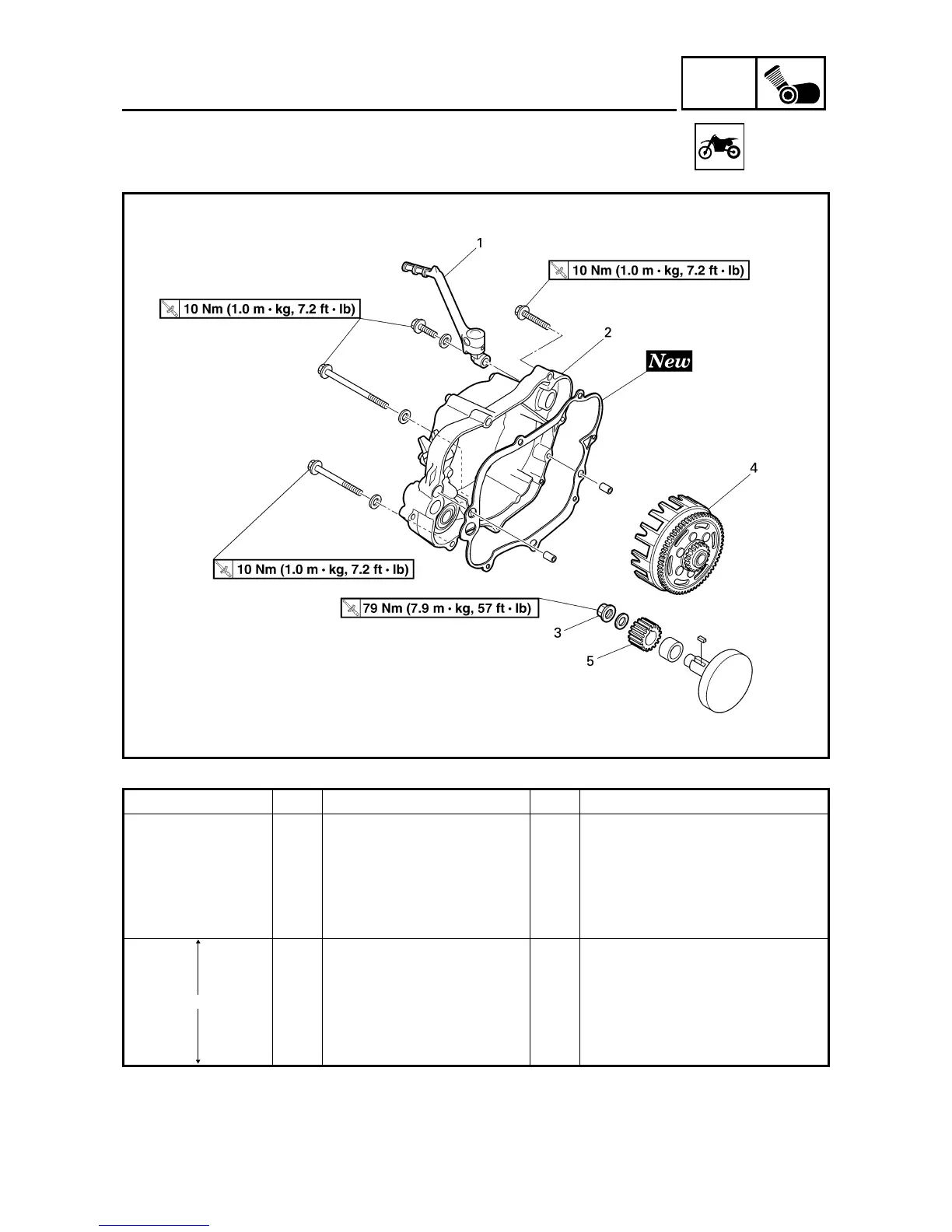

5PA40960
Extent of removal:
1
Primary drive gear removal
Extent of removal Order Part name Q’ty Remarks
PRIMARY DRIVE GEAR
REMOVAL
Drain the transmission oil. Refer to “TRANSMISSION OIL
REPLACEMENT” section in the CHAP-
TER 3.
Brake pedal
Radiator hose 2 Disconnect at water pump side.
1 Kickstarter crank 1
2 Right crankcase cover 1
3 Nut (primary drive gear) 1 Only loosening.
Refer to “REMOVAL POINTS”.
4 Primary driven gear 1 Refer to “CLUTCH AND PRIMARY
DRIVEN GEAR” section.
5 Primary drive gear 1
1
To Next Page
