FRONT WHEEL
4-10
EAS21900
REMOVING THE FRONT WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
NOTE:
Place the vehicle on a suitable stand so that
the front wheel is elevated.
2. Remove:
• Left brake caliper
• Right brake caliper
NOTE:
Do not apply the brake lever when removing
the brake calipers.
3. Loosen:
• Front wheel pinch bolt
• Front wheel axle
4. Elevate:
• Front wheel
NOTE:
Place the vehicle on a suitable stand so that
the front wheel is elevated.
5. Remove:
• Front wheel axle
• Front wheel
6. Remove:
•Collars
EAS21920
CHECKING THE FRONT WHEEL
1. Check:
• Wheel axle
Roll the wheel axle on a flat surface.
Bends → Replace.
WARNING
EWA13460
Do not attempt to straighten a bent wheel
axle.
2. Check:
•Tire
• Front wheel
Damage/wear → Replace.
Refer to "CHECKING THE TIRES" on page
3-31 and "CHECKING THE WHEELS" on
page 3-34.

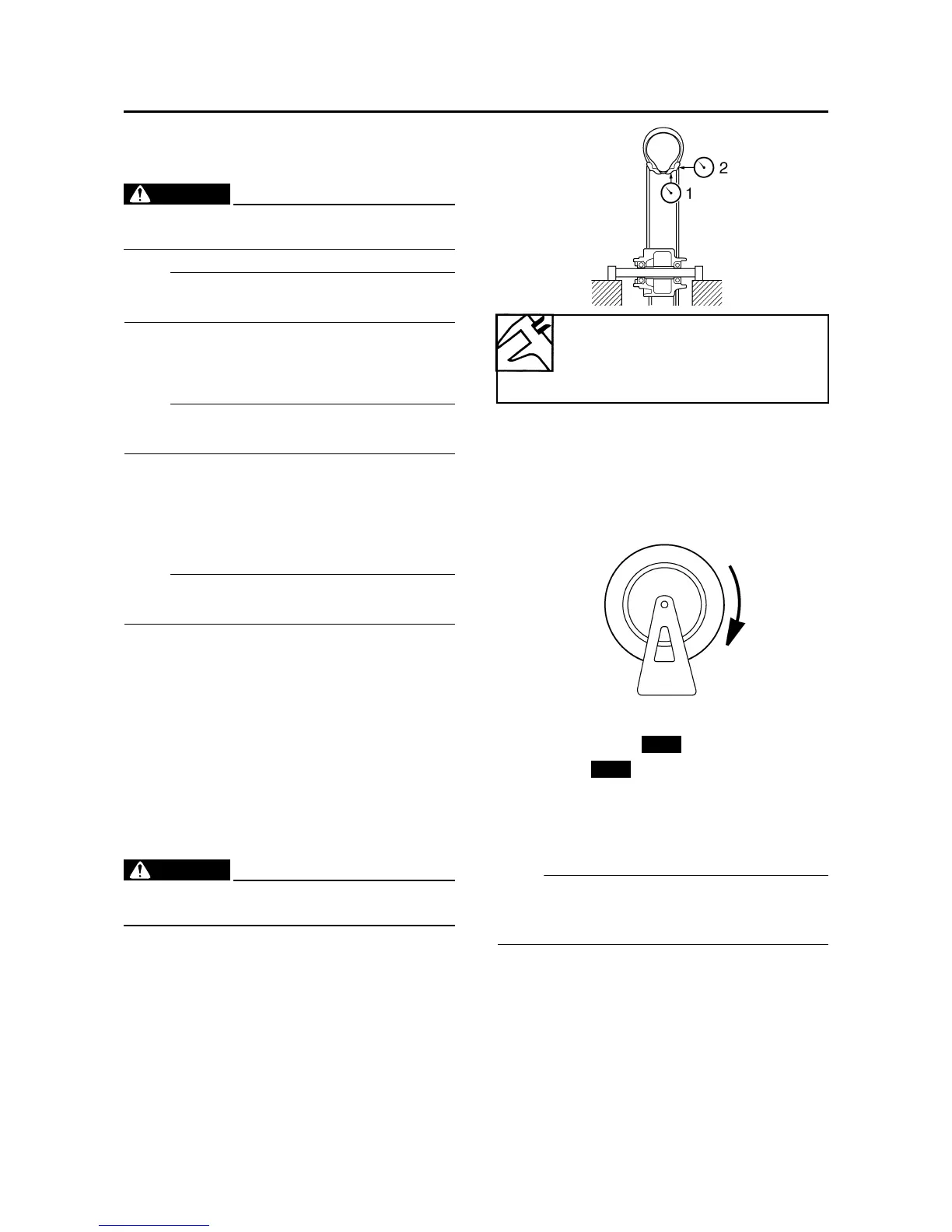

3. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limits → Replace.
4. Check:
• Wheel bearings
Front wheel turns roughly or is loose →
Replace the wheel bearings.
• Oil seals
Damage/wear → Replace.
5. Replace:
• Wheel bearings
• Oil seals
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Clean the outside of the front wheel hub.
b. Remove the oil seals “1” with a flat-head
screwdriver.
NOTE:
To prevent damaging the wheel, place a rag “2”
between the screwdriver and the wheel sur-
face.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
New
New
To Next Page
