PICKUP ROTOR
5-34
EAS4S81041

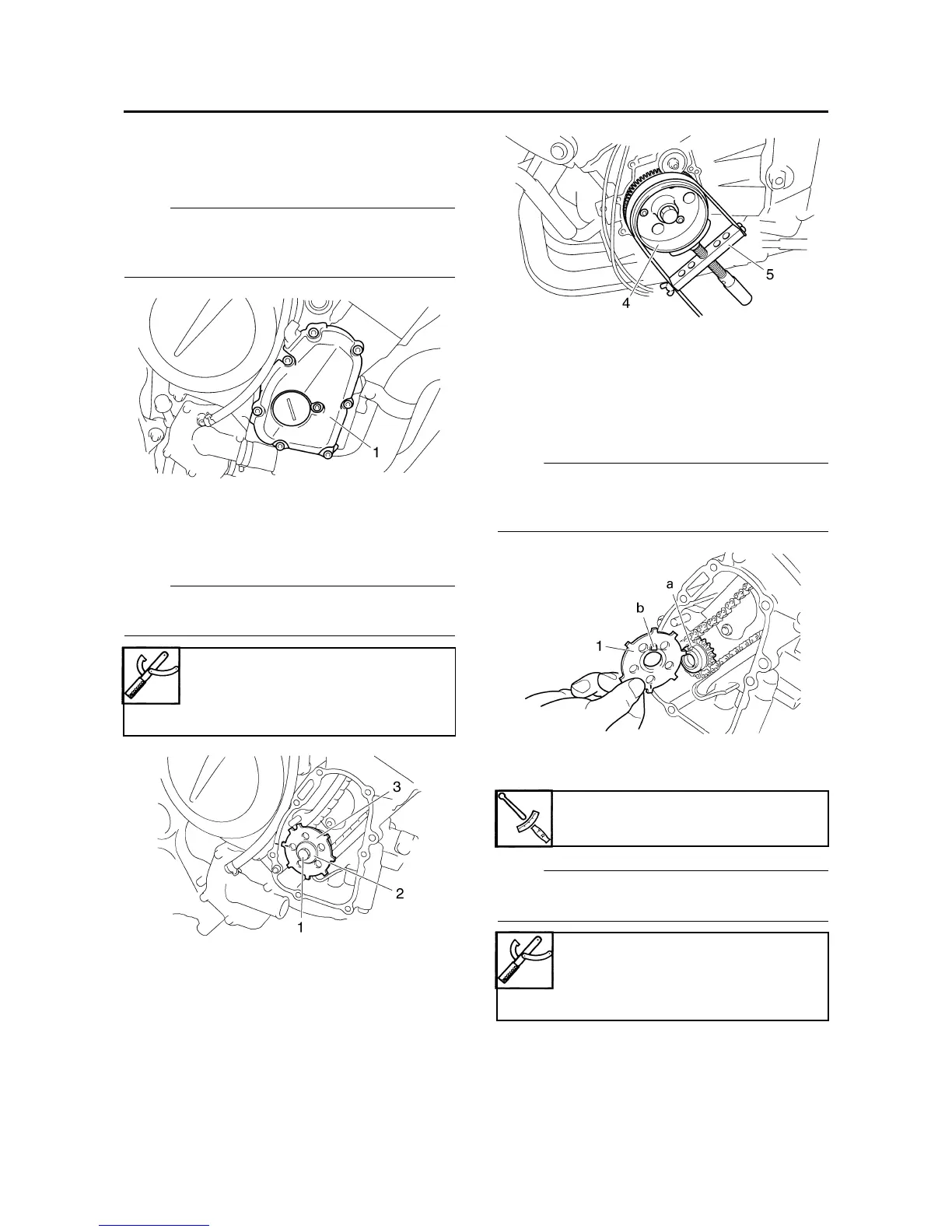

REMOVING THE PICKUP ROTOR
1. Remove:
• Pickup rotor cover “1”
NOTE:
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
2. Remove:
• Pickup rotor bolt “1”
• Washer “2”
• Pickup rotor “3”
NOTE:
While holding the generator rotor “4” with the
sheave holder “5”, loosen the pickup rotor bolt.
EAS4S81042
INSTALLING THE PICKUP ROTOR
1. Install:
• Pickup rotor “1”
•Washer
• Pickup rotor bolt
NOTE:
When installing the pickup rotor, align the
groove “a” in the crankshaft sprocket with the
projection “b” in the pickup rotor.
2. Tighten:
• Pickup rotor bolt “1”
NOTE:
While holding the generator rotor “2” with the
sheave holder “3”, tighten the pickup rotor bolt.
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
Pickup rotor bolt
35 Nm (3.5 m·kg, 25 ft·lb)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
