REAR BRAKE
4-49
1. Install:
• Brake caliper seals
• Brake caliper piston
EAS22670

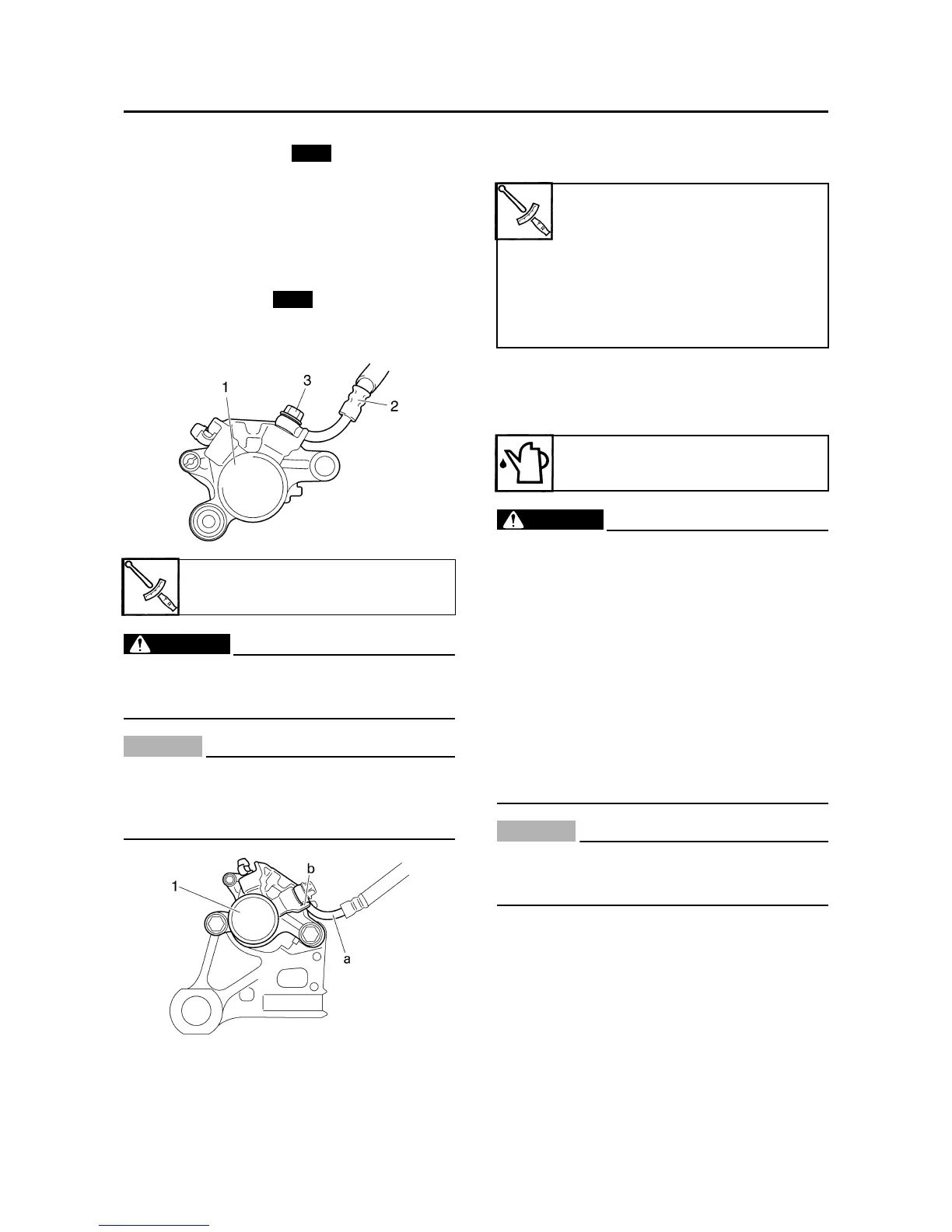

INSTALLING THE REAR BRAKE CALIPER
1. Install:
• Brake caliper “1”
(temporarily)
• Copper washers
• Brake hose “2”
• Union bolt “3”
WARNING
EWA13530
Proper brake hose routing is essential to
insure safe vehicle operation. Refer to
"CABLE ROUTING" on page 2-47.
CAUTION:
ECA14170
When installing the brake hose onto the
brake caliper “1”, make sure the brake pipe
“a” touches the projection “b” on the brake
caliper.
2. Remove:
• Brake caliper
3. Install:
• Brake pad spring
• Brake pad shims (on to the brake pads)
• Brake pads
• Brake caliper
4. Fill:
• Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid.
Other brake fluids may cause the rubber
seals to deteriorate, causing leakage and
poor brake performance.
• Refill with the same type of brake fluid
that is already in the system. Mixing brake
fluids may result in a harmful chemical
reaction, leading to poor brake perfor-
mance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor
lock.
CAUTION:
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
5. Bleed:
• Brake system
Refer to "BLEEDING THE HYDRAULIC
BRAKE SYSTEM" on page 3-26.
6. Check:
• Brake fluid level
Below the minimum level mark “c” → Add
the recommended brake fluid to the proper
level.
Refer to "CHECKING THE BRAKE FLUID
LEVEL" on page 3-24.
Brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
New
New
Brake caliper bolt (front side)
27 Nm (2.7 m·kg, 20 ft·lb)
Brake caliper bolt (rear side)
22 Nm (2.2 m·kg, 16 ft·lb)
Brake pas pin
17 Nm (1.7 m·kg, 12 ft·lb)
Screw plug
3 Nm (0.3 m·kg, 2.2 ft·lb)
Recommended fluid
DOT 4
To Next Page
