OIL COOLER
6-6
EAS26420
CHECKING THE OIL COOLER
1. Check:
• Oil cooler
Cracks/damage → Replace.
2. Check:
• Oil cooler inlet hose
• Oil cooler outlet hose
Cracks/damage/wear → Replace.
EAS26430

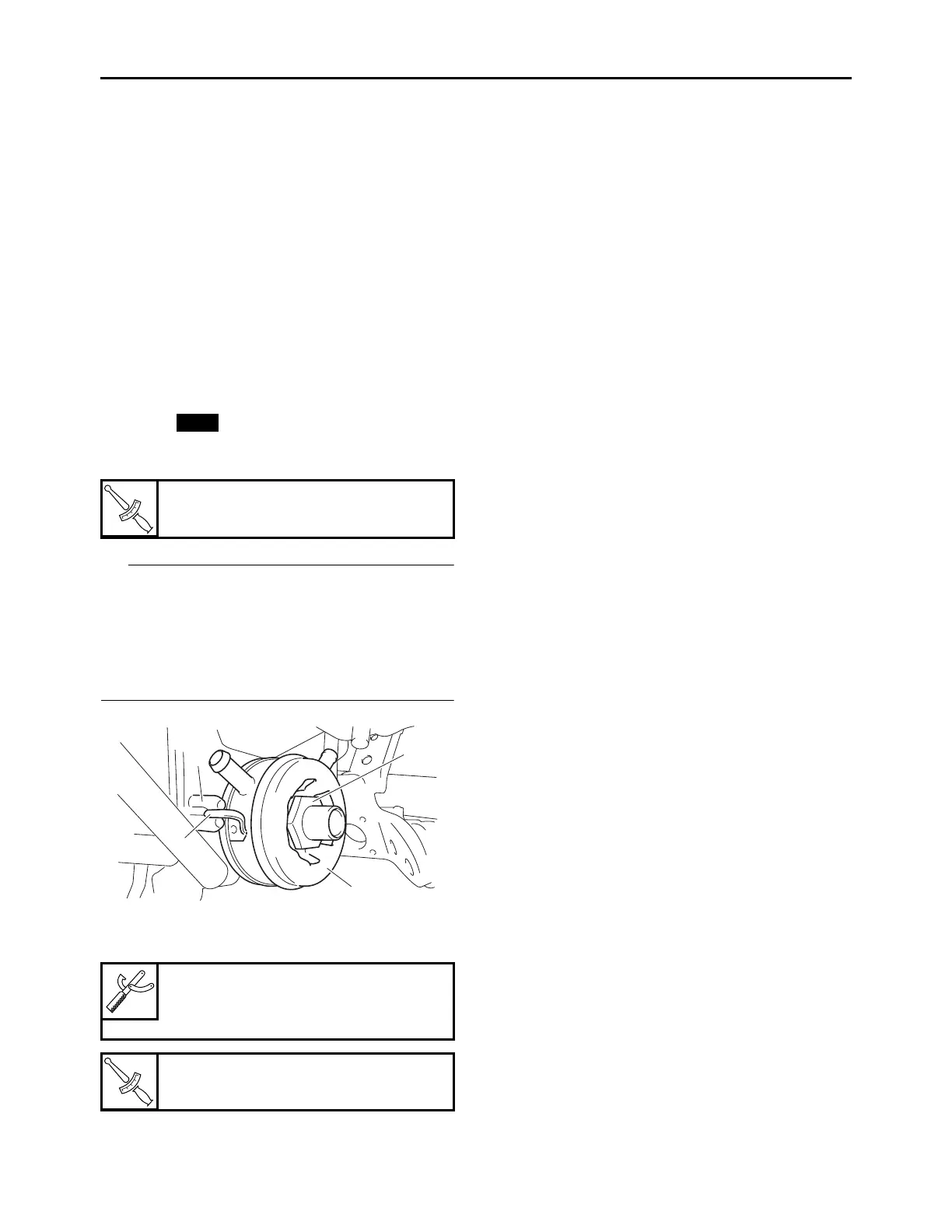

INSTALLING THE OIL COOLER
1. Clean:
• Mating surfaces of the oil cooler and the
crankcase
(with a cloth dampened with lacquer thinner)
2. Install:
• O-ring
• Oil cooler “1”
• Oil filter cartridge union bolt “2”
T
IP
• Before installing the oil cooler, lubricate the
union bolt threads and washer with engine oil.
• Make sure that the O-ring is positioned proper-
ly.
• Align the projection “a” on the oil cooler with the
slot “b” in the crankcase.
3. Install:
• Oil filter cartridge
Refer to “CHANGING THE ENGINE OIL” on
page 3-12.
4. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-18.
• Crankcase
(with the specified amount of the recom-
mended engine oil)
Refer to “CHANGING THE ENGINE OIL” on
page 3-12.
5. Check:
• Cooling system
Leaks → Repair or replace any faulty part.
6. Measure:
• Radiator cap opening pressure
Below the specified pressure → Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-3.
T
R
.
.
Oil filter cartridge union bolt
63 Nm (6.3 m·kg, 45 ft·lb)
Oil filter wrench
90890-01469
YM-01469
T
R
.
.
Oil filter cartridge
17 Nm (1.7 m·kg, 12 ft·lb)
New
a
b
2
1
