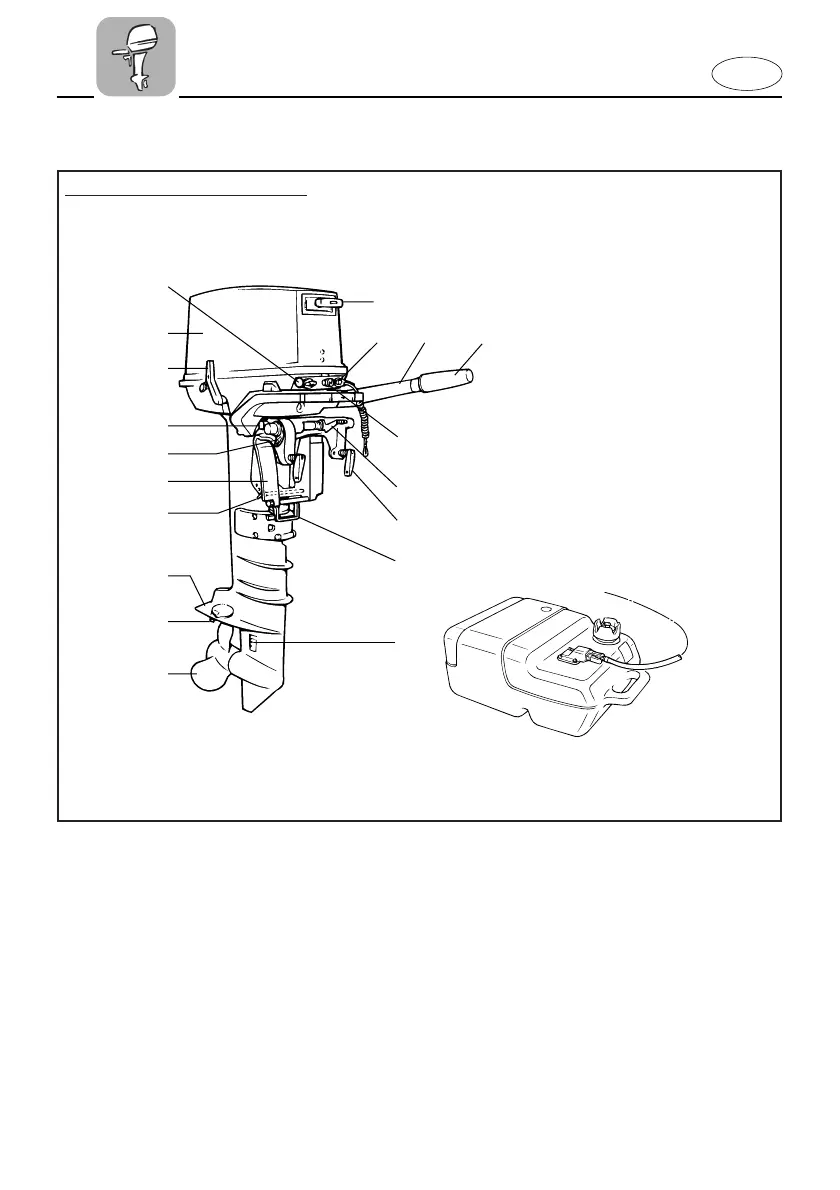

MAIN COMPONENTS
1 Recoil starter handle
2 Throttle control grip
3 Tiller handle
4 Engine stop button /
Engine stop lanyard switch
5 Choke knob
6 Tilt lock lever
7 Transom clamp handle
8 Shallow water lever
9 Cooling water inlet
0 Propeller
q Trim tab
w Anti-cavitation plate
e Trim angle adjusting rod
r Clamp bracket
t Rope attachment
y Tilt support knob
u Gear shift lever
i Top cowling
* o 2p connector
* p Fuel tank
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
