EMD66010

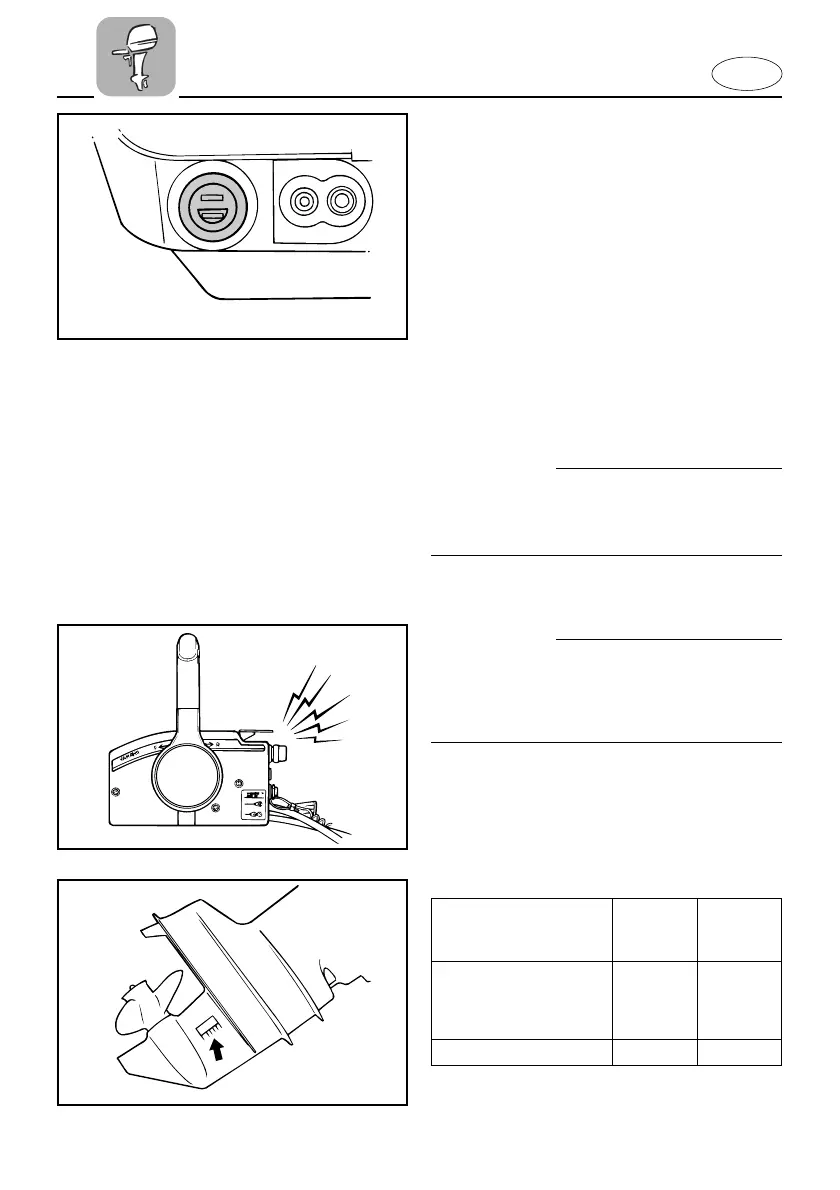

2P CONNECTOR
(for Manual start model)
AC12V-80W power is delivered through
this connector. When using it, keep in
mind the following points:
1. Use a genuine Yamaha connector.
2. Use lighting equipment only.
3. Connect a lighting equipment directly
to the 2P connector.
4. Capacity the lighting equipment must
be more than 12V-80W; otherwise,
the bulb could be burnt out.
5. When the connector is not used,
place the cap on it.
cC
Do not connect the 2P connector directly
to the battery terminals. Otherwise, the
electrical system will be damaged.
EMU00169
WARNING SYSTEM
cC
Do not continue to operate the engine if
the warning device has activated. Consult
your Yamaha dealer if the problem can-
not be located and corrected.
EMU00170*
OVERHEAT WARNING
This engine has an overheat warning
device. If the engine temperature rises too
high, the warning device will activate.
(
1
); Included (—); N/A
If the warning system has been activated,
stop the engine and check the water inlet
for clogging.
314012
Activation of
warning device
The engine speed
will automatically
decrease to about
2,000 r/min.
The buzzer will sound.
Tiller Remote
control control
model model
11
— 1
605021
701054
