2-6
EMC40010

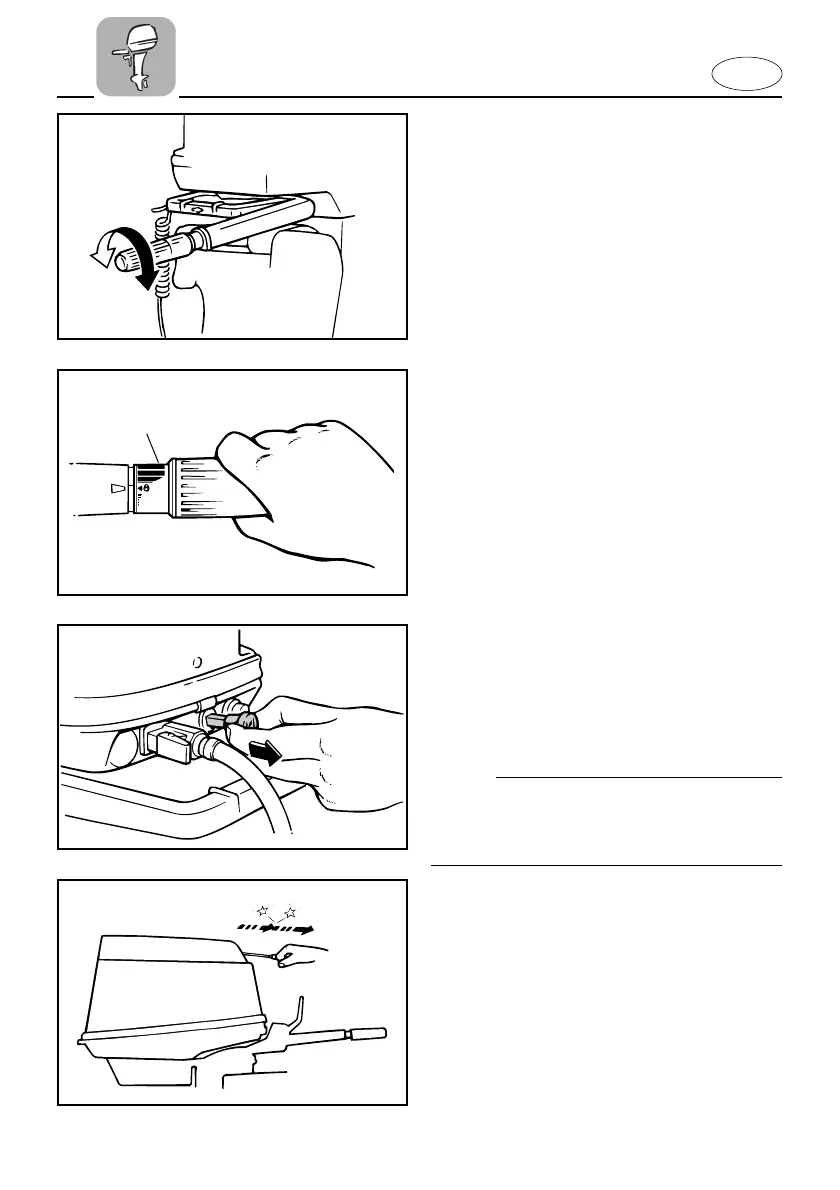

THROTTLE CONTROL GRIP
(for Tiller control model)
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
Throttle indicator
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicator
GB
503014
1
EMC42010
CHOKE KNOB
Pulling out this knob (setting it to ON)
supplies a rich mixture required to start
the engine.
NOTE:
The choke knob for Remote control model
has the same function as the choke switch
on the remote control box.
EMC44010
RECOIL STARTER HANDLE
(If equipped)
Pull the handle gently until resistance is
felt. Then vigorously pull the handle
straight out to crank the engine to start it.
61R-9-73-2 (GB,F,ES) 5/9/00 10:32 AM Page 14
