2-11
GB
EMD00011
STEERING FRICTION ADJUSTING
SCREW (for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel bracket.
EMD00310*
Adjustment
w
Do not overtighten the friction
screw/bolt.
If there is too much resistance, it may be
difficult to steer, which could result in an
accident.
EMC87011

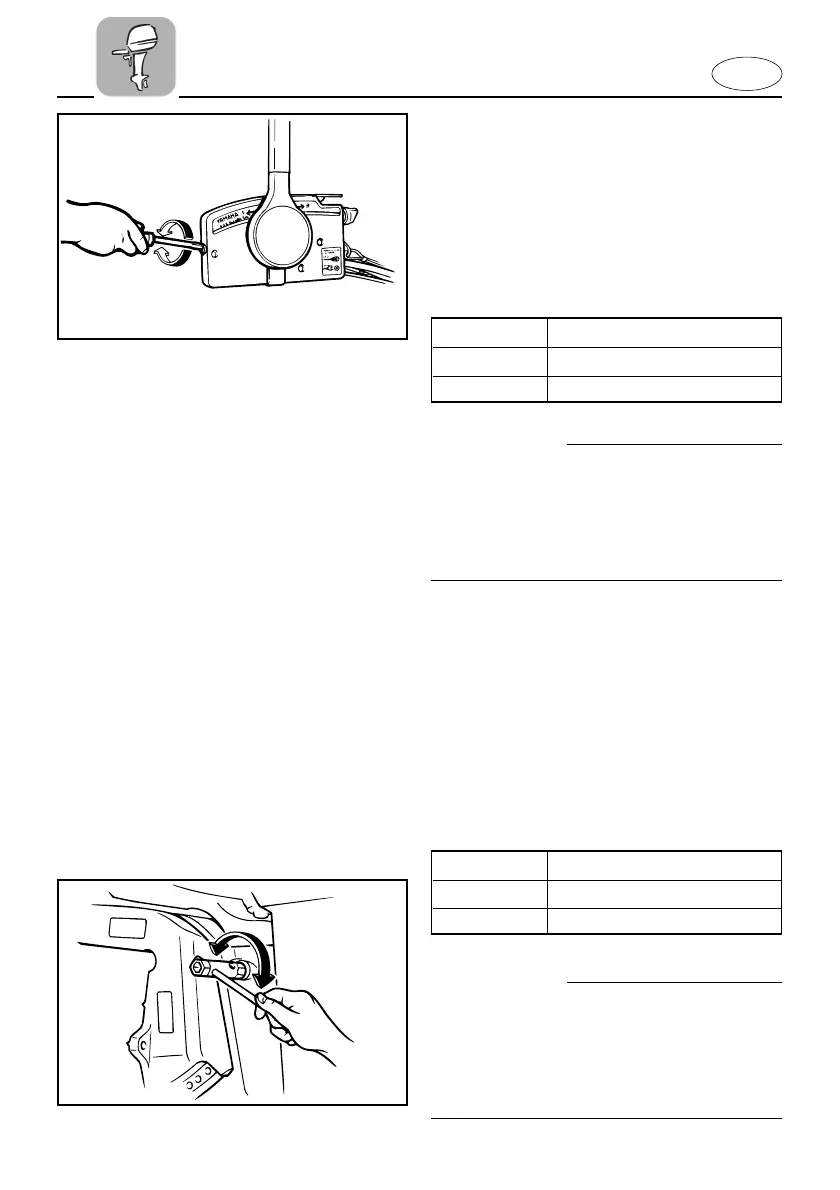

Throttle friction adjusting screw
A friction device in the remote control box
provides resistance to movement of the
remote control lever.
This is adjustable for operator preference.
An adjusting screw is located at the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw.
If there is too much resistance, it may be
difficult to move the lever, which could
result in an accident.
408015
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
Resistance Screw/bolt
Increase Turn clockwise
Decrease Turn counterclockwise
