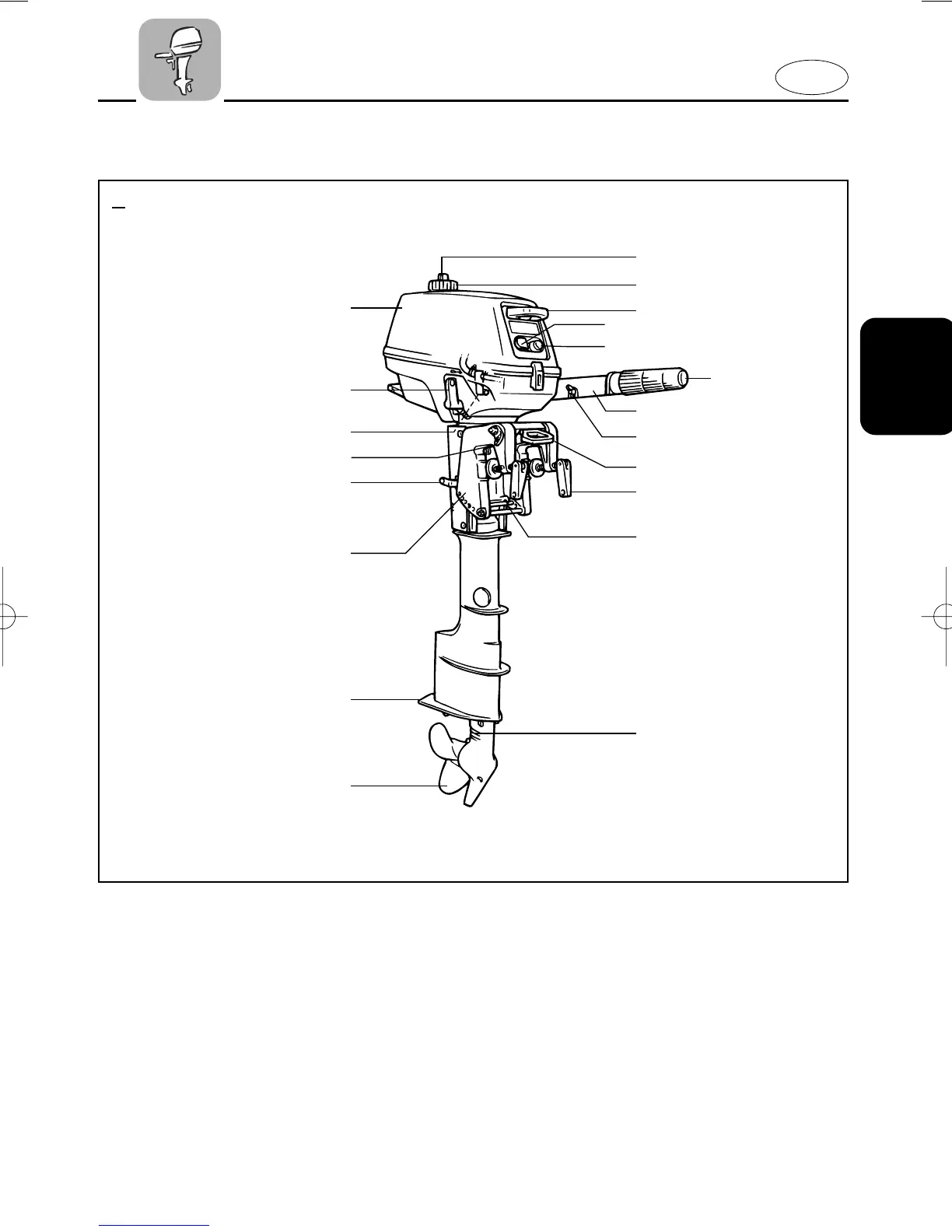

MAIN COMPONENTS
y
e
w
q
!5
!4
@1
!7
o
!8
@0
u
i
101122*
!2
!9
!6
!3
!1
!0
r
1 Air vent screw
2 Fuel tank cap
3 Recoil starter handle
4 Top cowling
5 Cowling lock lever
6 Tiller handle
7 Throttle control grip
8 Throttle friction knob
9 Engine stop button
0 Gear shift lever
q Fuel cock
w Choke knob
e Rope attachment
r Carrying-handle
t Transom clamp handle
y Tilt support bar (lever)
u Clamp bracket
i Trim angle adjusting-rod
o Anti-cavitation plate
p Cooling water inlet
a Propeller
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
