TOP COWLING LOCK LEVER
3

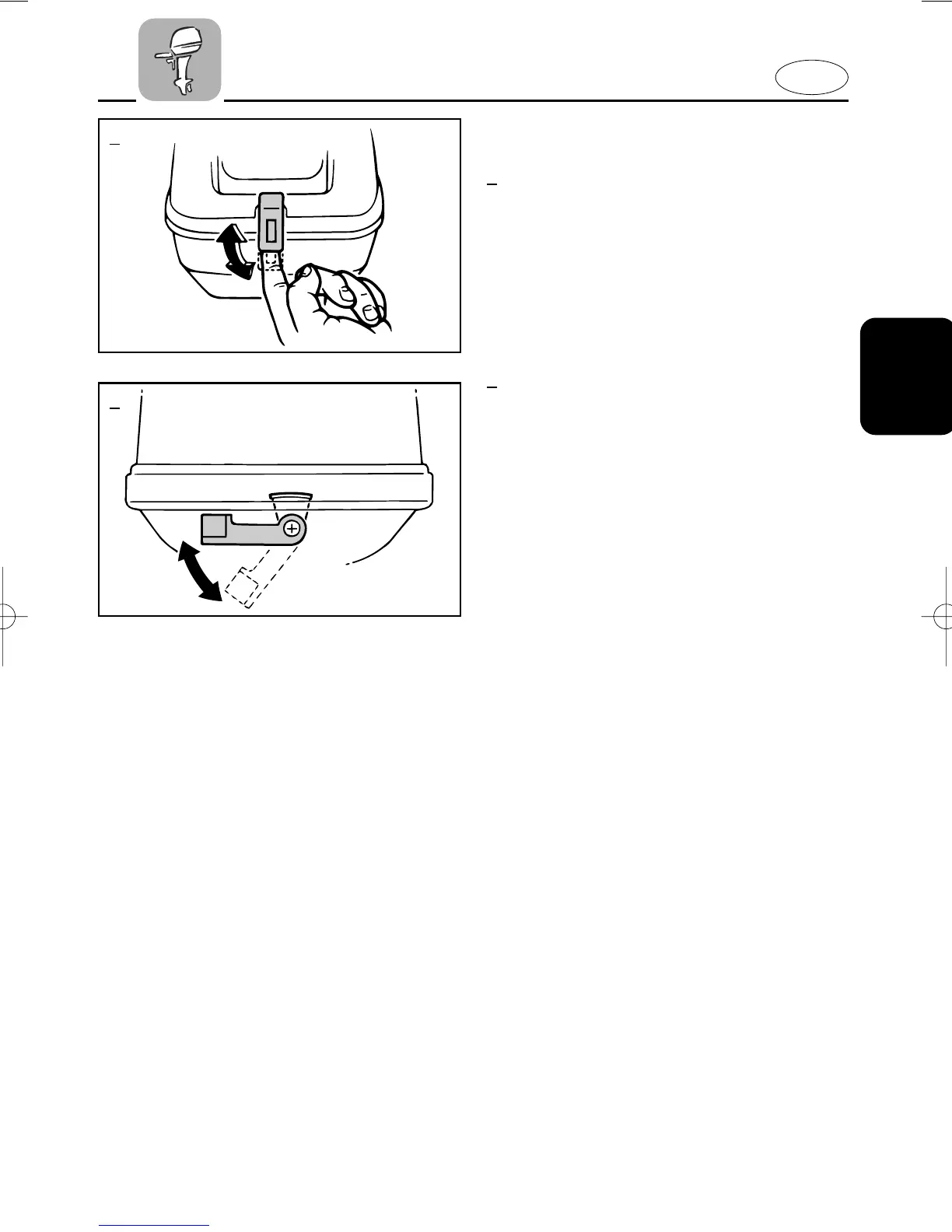

To remove the engine top cowling, pull
up the front and rear lock levers. Then
lift off the cowling. When replacing the
cowling, check to be sure it fits properly
in the rubber seal. Then lock the cowling
again by moving the levers downward.
5
To remove the engine top cowling, push
the lock lever downward. Then lift off
the cowling. When replacing the cowl-
ing, check to be sure it fits properly in
the rubber seal. Then lock the cowling
again by moving the lever upward.
