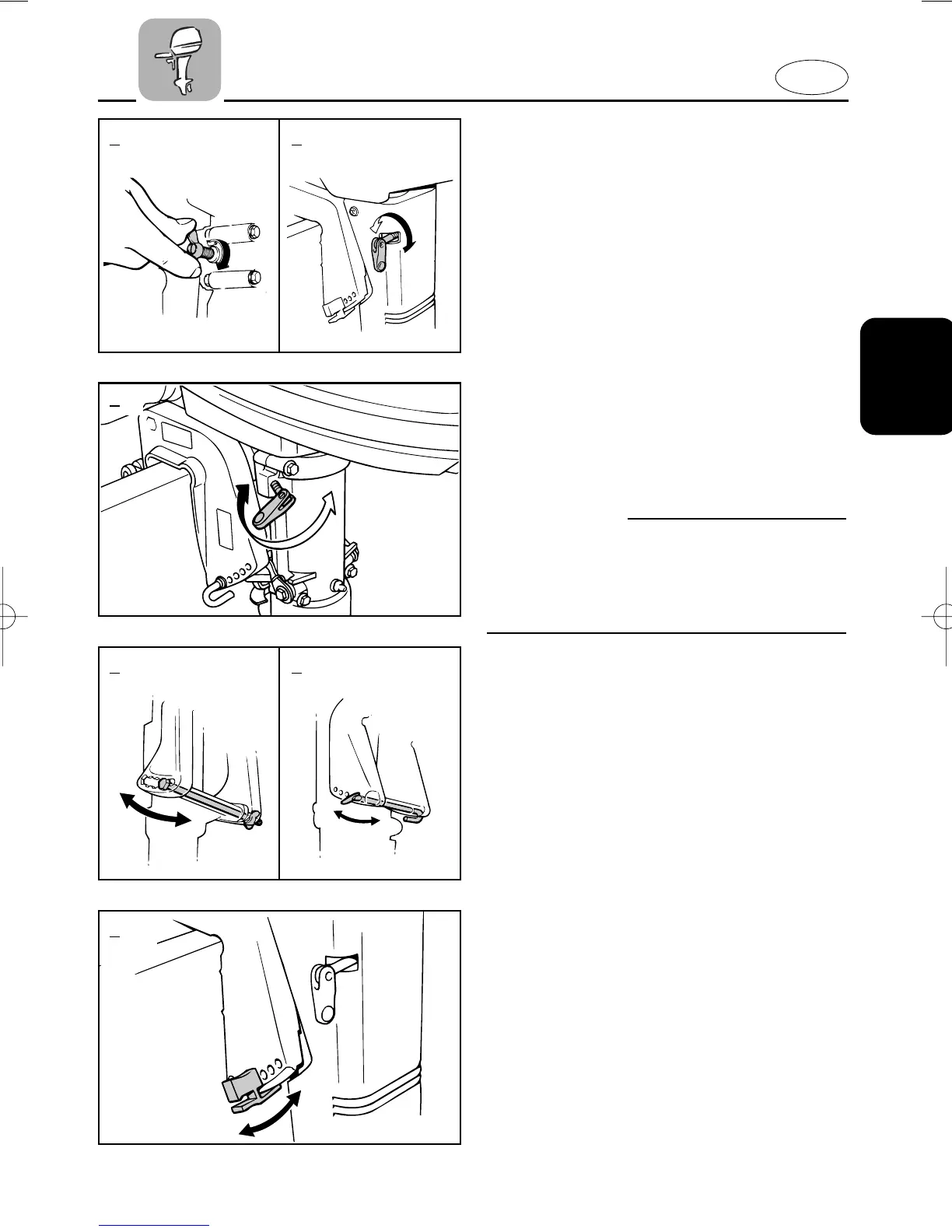

STEERING FRICTION ADJUSTMENT
(for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable
for operator preference.
An adjusting screw/bolt is located on the
swivel bracket.
To increase the resistance:
Turn the adjusting screw/bolt clockwise.
To decrease the resistance:
Turn the adjusting screw/bolt counter-
clockwise.
w
Do not overtighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
2 3
5
2 3
5
