Yamaha 2A - Tiller Handle; Fuel Cock

2-8
E
315021*
q
e
w
CLOSE
q
OPEN
OPEN
CLOSE
q
EMC60010

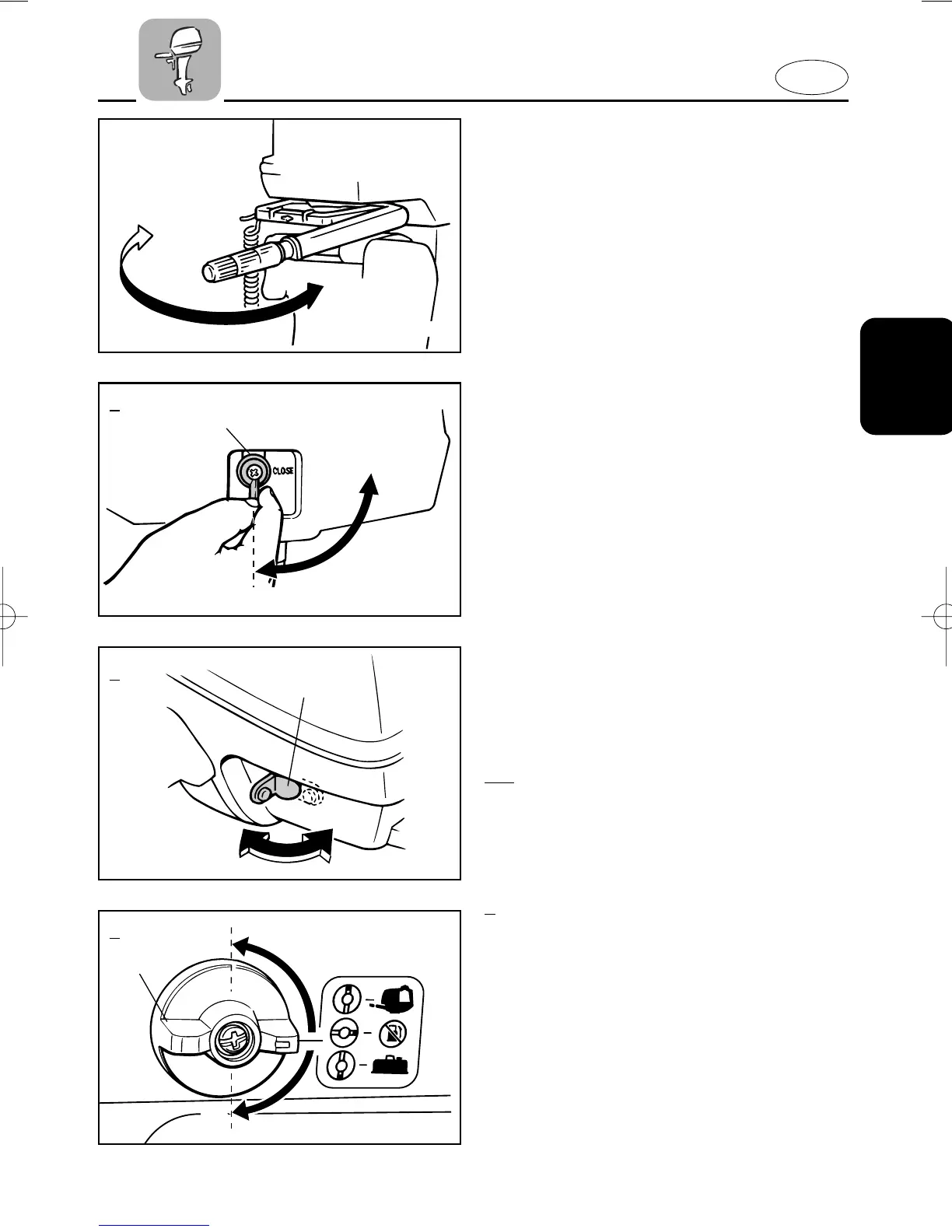

TILLER HANDLE
Moving the tiller handle sideways to
adjust the steering direction.
503015
EMC22110
FUEL COCK
A fuel cock is provided on top / bottom
cowling to open or close the fuel flow
from the fuel tank. There are two posi-
tions (2-hp/3-hp) or three positions (4-
hp/5-hp) on this fuel cock.
1 Fuel cock
CLOSE
With the lever / knob in this position, fuel
does not flow. Always turn the knob to
this position when the engine is not run-
ning.
OPEN
2/3
With the lever / knob in this position, fuel
flows to the carburetor. Normal running
is done with the lever / knob in this posi-
tion.
5
There are two “OPEN” positions on the
fuel cock for selecting the fuel flow from
the built-in tank or the separate tank.
2 “OPEN” position for the built-in tank
3 “OPEN” position for the separate tank
With the knob in both positions, fuel
flows to the carburetor. Normal running
is done with the knob in these positions.
2
3
5
