4-17

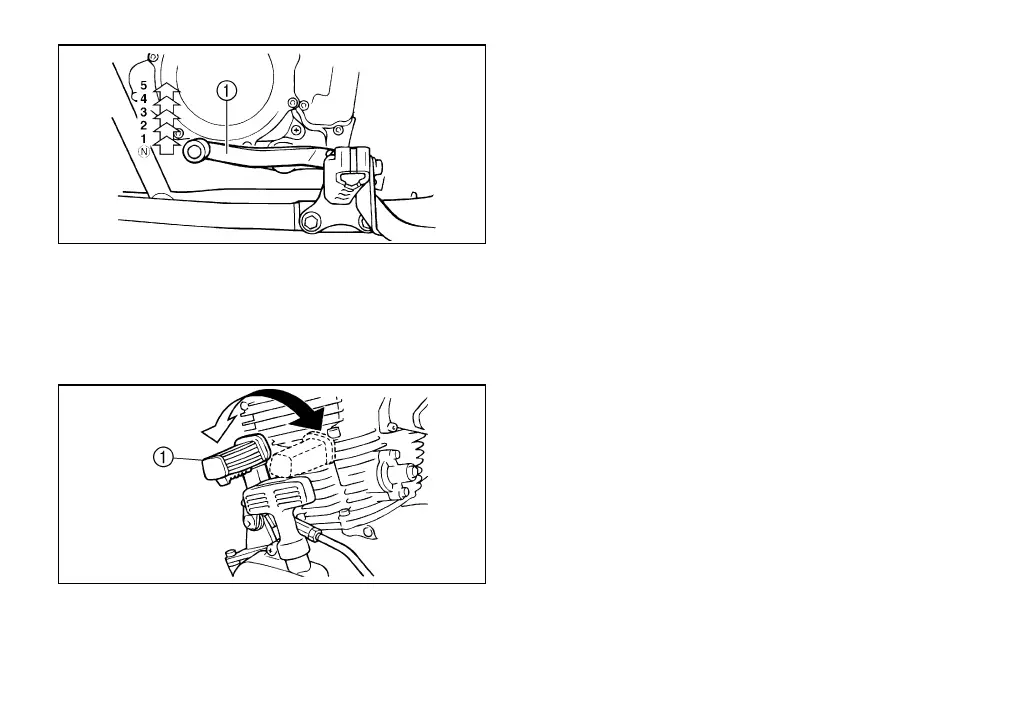

1. Shift pedal N. Neutral
1. Pédale de sélection N. Point mort
1. Pedal del cambio N. Punto muerto
1. Drive select lever
1. Levier de présélection
1. Palanca de selección de gama
EBU00083
Shift pedal
This machine is equipped with a constant-mesh
5-speed transmission. The shift pedal is located
on the left side of the engine. Neutral is at the bot-
tom position.
EBU00085
Drive select lever
The drive select lever is used for driving the ma-
chine either forward or in reverse. Refer to page
6-11 for drive select lever operation.
