Yamaha BOLT - Right View

Description
3-3
3
EAU32231

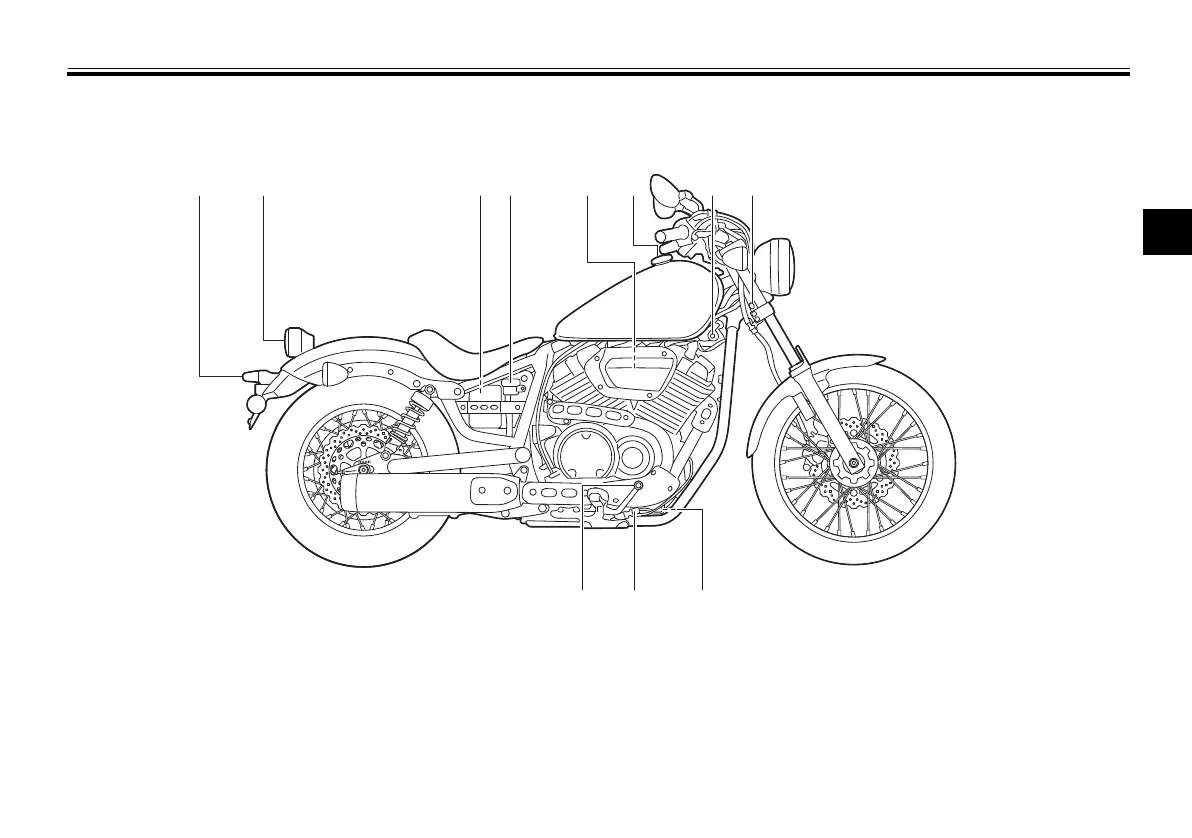

Right view
Bolt
1 2 3 4 5 6 7 8
10 911
1. License plate light (page 7-33)
2. Brake/tail light (page 7-32)
3. Battery (page 7-28)
4. Rear brake fluid reservoir (page 7-22)
5. Air filter element (page 7-15)
6. Fuel tank cap (page 4-8)
7. Main switch (page 4-1)
8. Steering lock (page 4-11)
9. Engine oil filter cartridge (page 7-11)
10.Rear brake light switch (page 7-21)
11.Brake pedal (page 4-7)
