Seat

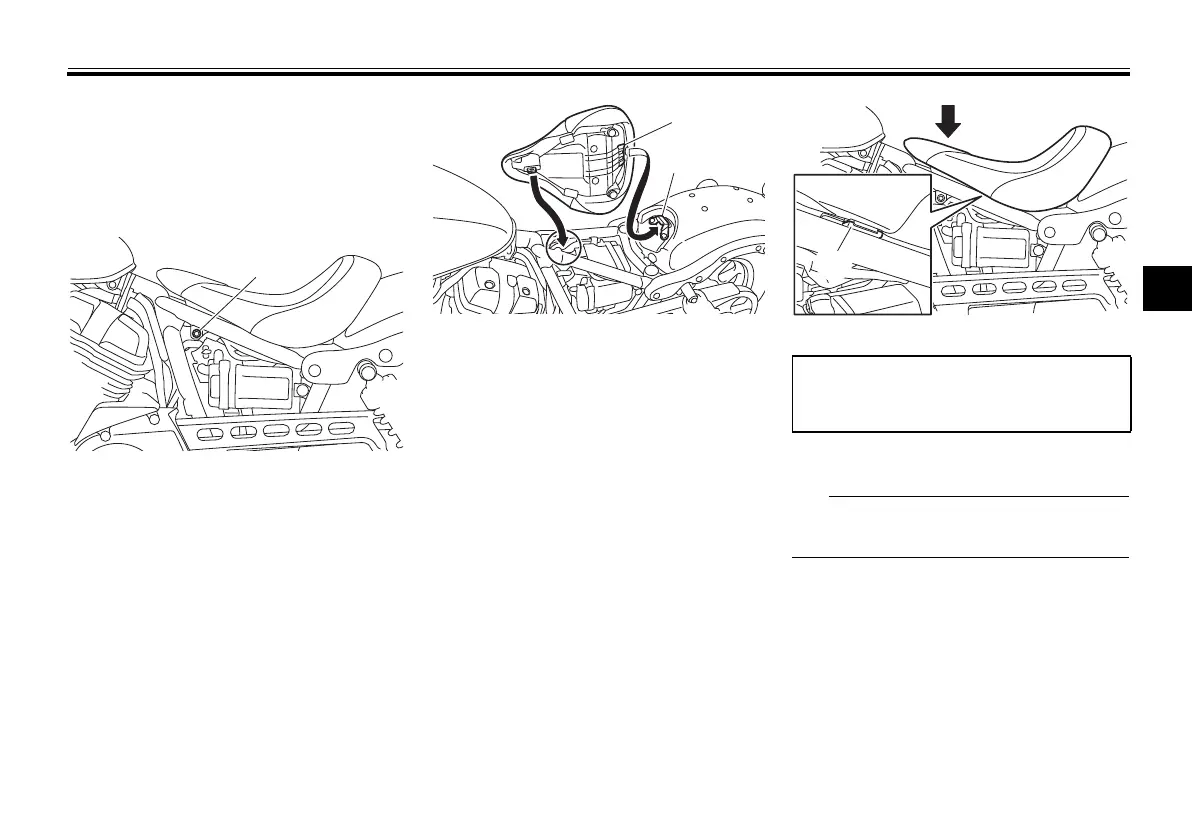

To remove the seat
1. Remove panel A. (See page 7-9.)
2. Remove the bolt.
3. Lift the front of the seat up, and
then pull the seat off.
To install the seat
1. Insert the projection on the rear of
the seat into the seat holder as
shown.
2. Place the seat in the original posi-
tion.
3. While pushing the front of the seat
down so that there is no space be-
tween the rubber dampers and the
frame, tighten the bolt to the spec-
ified torque.
4. Install the panel.
Make sure that the seat is properly se-
cured before riding.
1. Bolt
1. Projection
2. Seat holder
1. Rubber damper
Tightening torque:
Seat fitting bolt:
16 N·m (1.6 kgf·m, 12 lb·ft)
