Yamaha BOLT - Multi-function Meter Unit Functions

Instrument and control functions
4-3
4
EAU55694
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
 a speedometer
 an odometer
 two tripmeters
 a fuel reserve tripmeter
 a clock
 a self-diagnosis device
TIP
 The key must be turned to “ON”
before you can use the “SELECT”
and “RESET” switches.
 To switch between miles and kilo-
meters, push the “SELECT”
switch for three seconds.
Speedometer
The speedometer shows the vehicle’s
traveling speed.
Odometer, tripmeters, fuel reserve
tripmeter and clock
The odometer shows the total distance
traveled by the vehicle.
The tripmeters show the distance trav-
eled since they were last reset.
The fuel reserve tripmeter shows the
distance traveled on the fuel reserve.
The clock displays time in 12-hour for-
mat.
TIP
 The odometer will lock at 999999.
 The tripmeters will reset and con-
tinue counting after 999.9 is
reached.

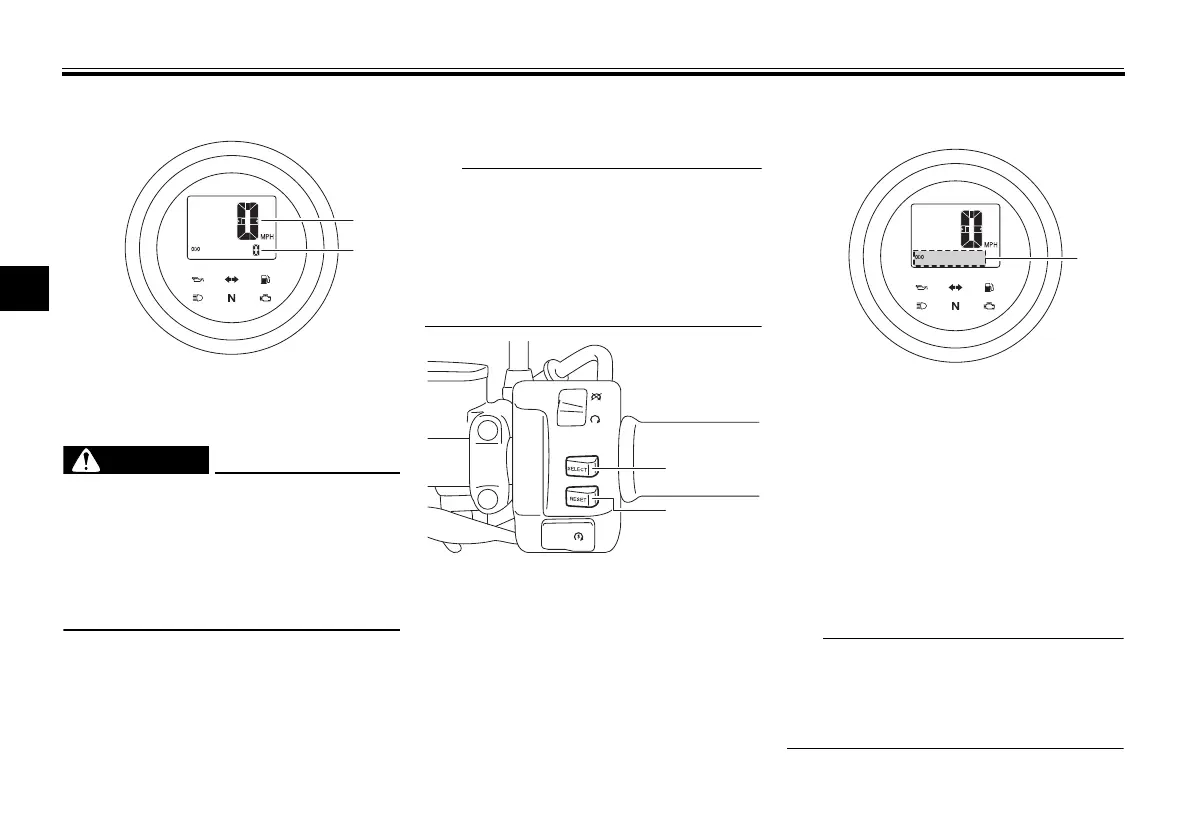

1. Speedometer
2. Odometer/tripmeters/fuel reserve tripme-
ter/clock
2
1
1. “SELECT” switch
2. “RESET” switch
1
2
1. Odometer/tripmeters/fuel reserve tripme-
ter/clock
1
