A belt tension gauge is available at a
Yamaha dealer.
4. Calculate the drive belt slack by
subtracting the measurement not-
ed in step 2 from the measure-
ment noted in step 3.
5. If the drive belt slack is incorrect,
have a Yamaha dealer adjust it.
EAU23098
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Damage to the
outer housing of cables may result
in internal rusting and cause inter-
ference with cable movement. Re-
place damaged cables as soon as
possible to prevent unsafe condi-
tions.
[EWA10712]
EAU49921
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.

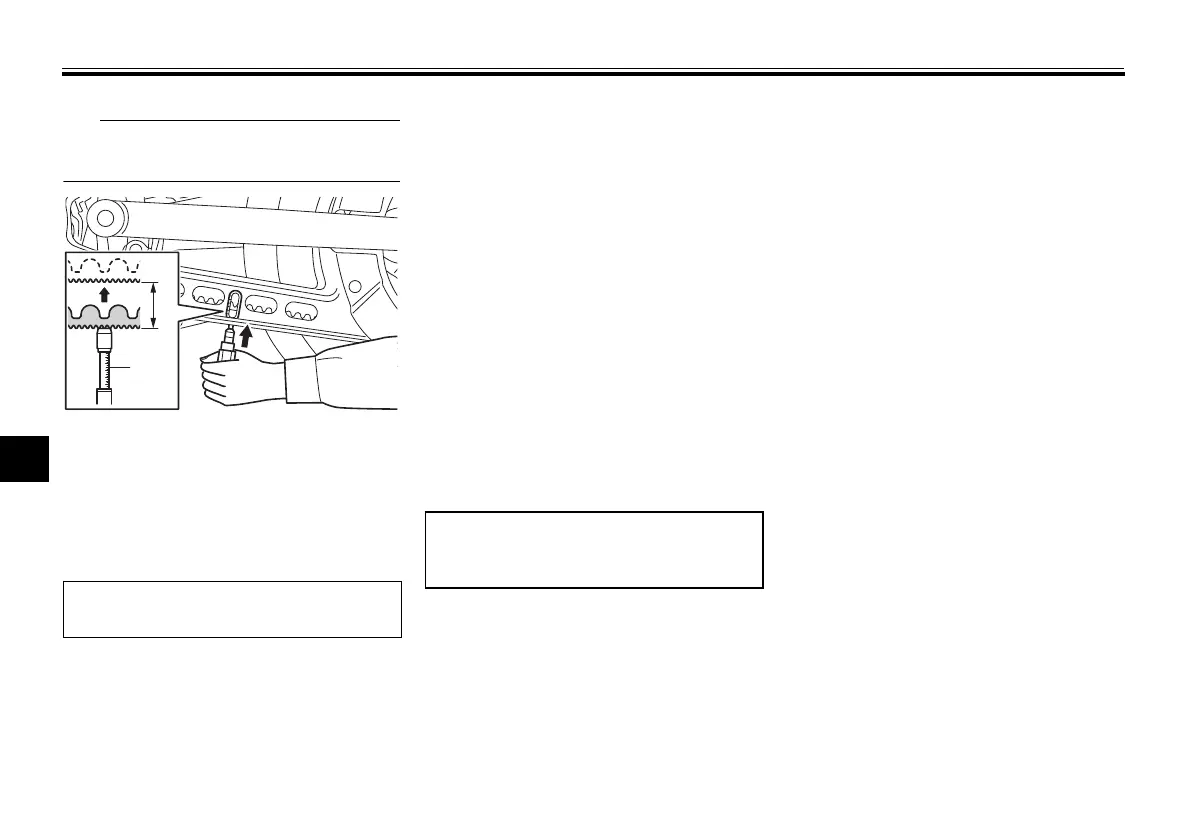

1. Belt tension gauge
2. Drive belt slack
Drive belt slack:
6.0–8.0 mm (0.24–0.31 in)
6 8 10 12 14
Recommended lubricant:
Yamaha cable lubricant or other
suitable cable lubricant
