Yamaha BOLT - Replacing the Headlight Bulb

Periodic maintenance and adjustment
7-31
7
EAU63180
Replacing the headlight bulb
This model is equipped with a halogen
bulb headlight. If the headlight bulb
burns out, replace it as follows.
NOTICE
ECA10661
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-
cohol or thinner.
1. Remove the headlight unit by re-
moving the screws.
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
5. Install the bulb cover, and then
connect the coupler.
TIP
When installing the headlight bulb cov-
er, make sure the “TOP” mark faces
upwards.

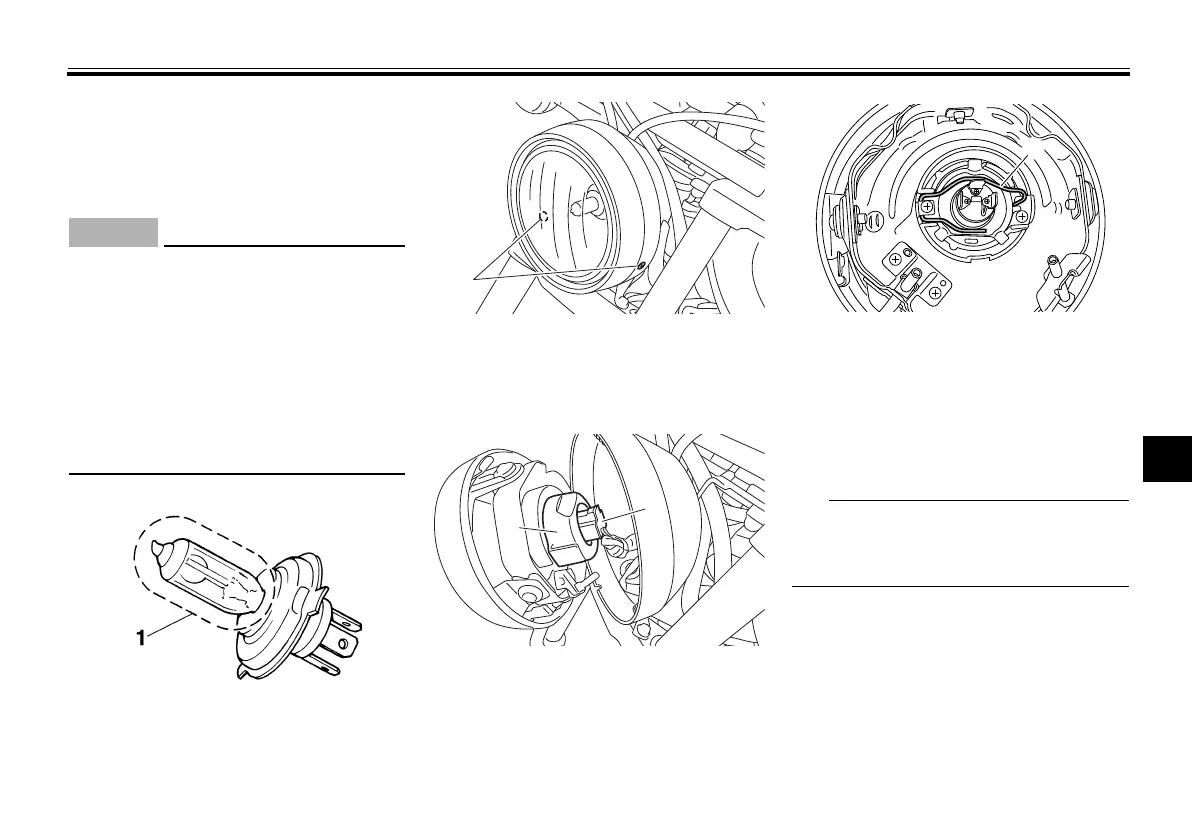

1. Do not touch the glass part of the bulb.
1. Screw
1. Headlight coupler
2. Headlight bulb cover
1
2
1
1. Headlight bulb holder
1
