Periodic maintenance and adjustment
7-13
7
TIP
An oil filter wrench is available at a
Yamaha dealer.
5. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIP
Make sure that the O-ring is properly
seated.
6. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
7. Install the engine oil drain bolt and
its new gasket, and then tighten
the bolt to the specified torque.
8. Refill with the specified amount of
the recommended engine oil.
TIP
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE
ECA11621
 In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
 Make sure that no foreign mate-
rial enters the crankcase.
9. Check the O-ring for damage, and
replace it if necessary.

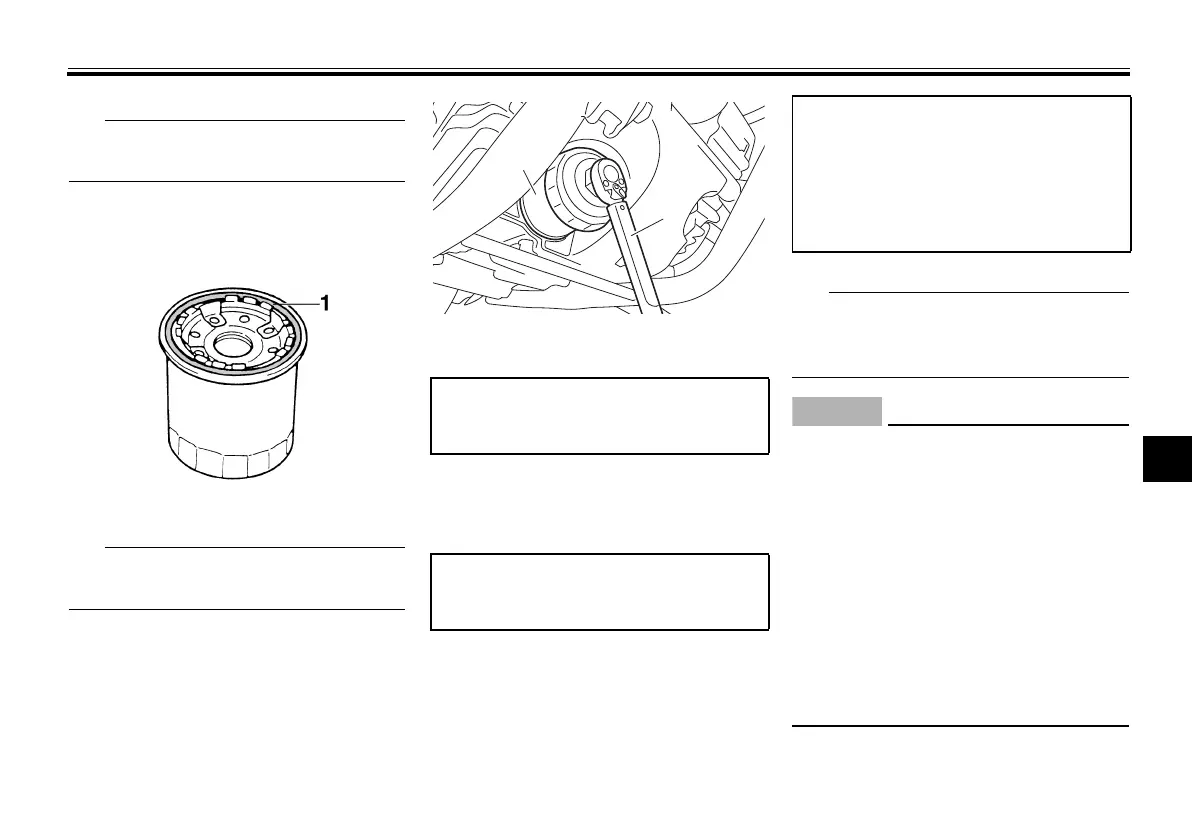

1. O-ring
1. Torque wrench
2. Oil filter cartridge
Tightening torque:
Oil filter cartridge:
17 N·m (1.7 kgf·m, 13 lb·ft)
Tightening torque:
Engine oil drain bolt:
43 N·m (4.3 kgf·m, 32 lb·ft)
1
2
Recommended engine oil:
See page 9-1.
Oil quantity:
Oil change:
3.70 L (3.91 US qt, 3.26 Imp.qt)
With oil filter removal:
4.00 L (4.23 US qt, 3.52 Imp.qt)
