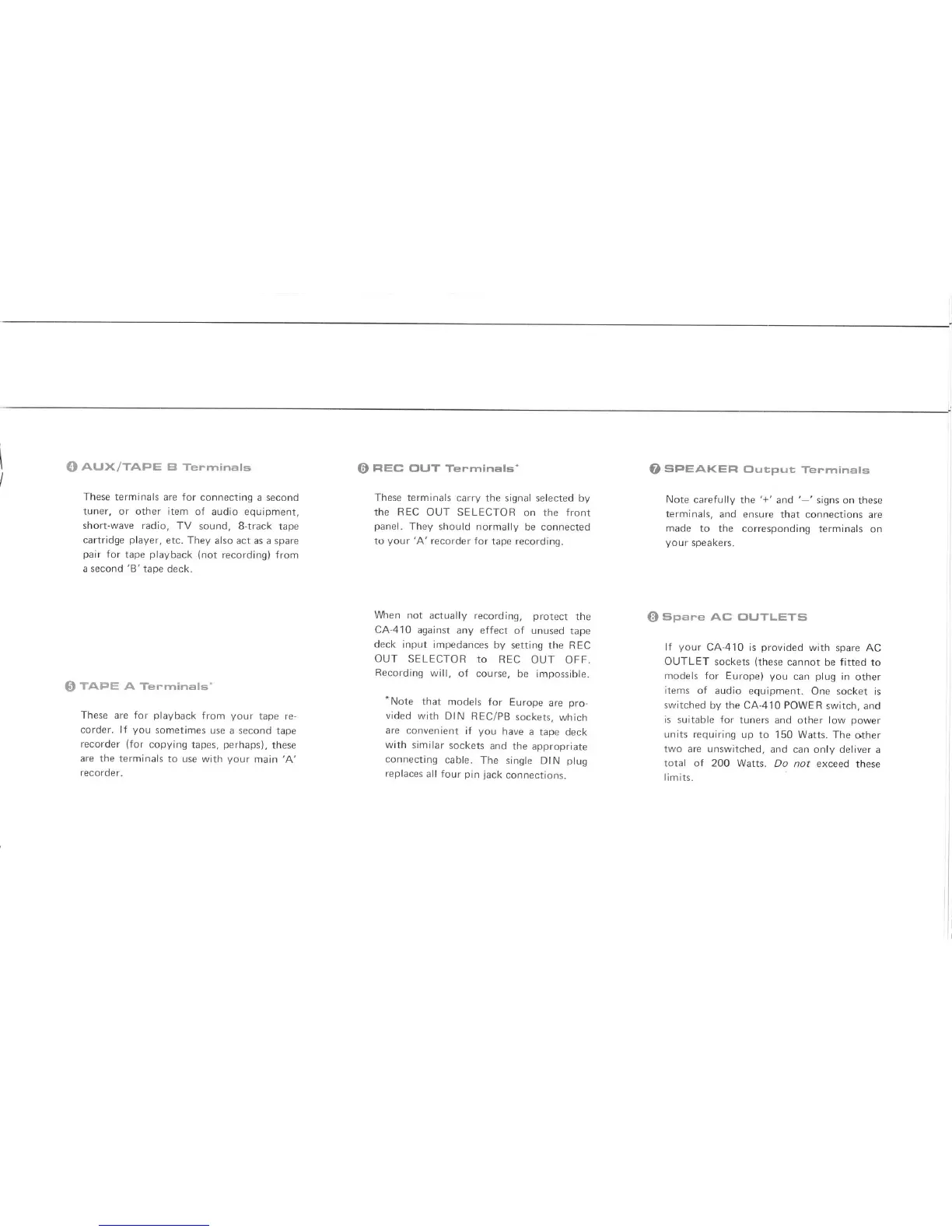

Yamaha ca-410 - Auxiliary, Tape, and Speaker Outputs; Spare AC Outlets

O
AUX/TAPE
El Terrninats
These terminals
are
for
connecting a second
tuner, or other item
of audio equipment,
short-wave radio,
TV
sound,
S,track
tape
cartridge
player,
etc. They
also act as a spare
pair
for
tape
playback
(not
recording)
from
a second
'B'
tape deck.
Gt
TAF,Ê
A Terrrrinats'
These are for
playback
from
your
tape re-
corder. lf
you
sometimes
use a second
tape
recorder
(for
copying
tapes,
perhaps).
these
are the terminals
to use with
your
main'A'
recorder.
O
REc oUT
Terrrrinals*
These
terminals carry
the signal selected by
the
REC
OUT SELECTOR
on the Tront
panel.
They
should normally be connected
to
your
'A'
recorder
Tor tape recording.
\ hen
not actually
recording,
protect
the
CA-4IO
against any effect
of unused
tape
deck
input
impedances by
serting the REC
OUT SELECTOR
tO
REC
OUT OFF.
Recording
will,
of course, be
impossible.
'Note
that models
for Europe
are
pro-
vided
with DIN
REC/PB
sockets, which
are convenient
if
you
have
a
tape deck
with
similar
sockets
and the
appropriate
connecting
cable.
The singte
DIN
plug
replaces
allïour
pin
jack
connections.
f)
SF'EAI<ER
c'urpur TeFrrrinats
Note carefully
the
'+'
and
' '
signs
on these
terminals,
and ensure
that
connections
are
made
to the corresponding
terminals on
your
speakers.
@
Spane AC OUTLETS
lT
your
CA-410
is
provided
with
spare AC
OUTLET
sockets
(these
cannot be fitted to
models for Europe) you
can
plug
in
other
items of
audio equipment.
One socket
ls
switched
by
the
CA-410
POWER
swirch. and
is suitable lor
tuners
and other low
power
units requiring
up to 150 Watts.
The other
two are unswitched,
and can only deliver
a
total of 200 Watts.
Do not exceed
these
lim its.
