Yamaha CS2x Service Manual

CS2X
12
Fig.9
Rubber contact
Fig.10 Fig.11
Rubber contact
Hook
8. Assembling of Keyboard Assembly
8-1 Install the white keys CEGB in the lower notes, then
install the DFA and C’ keys. Afterwards, install the
black keys in the higher notes, and tighten the
twenty-one (21) screws marked [140]. (Fig. 8)

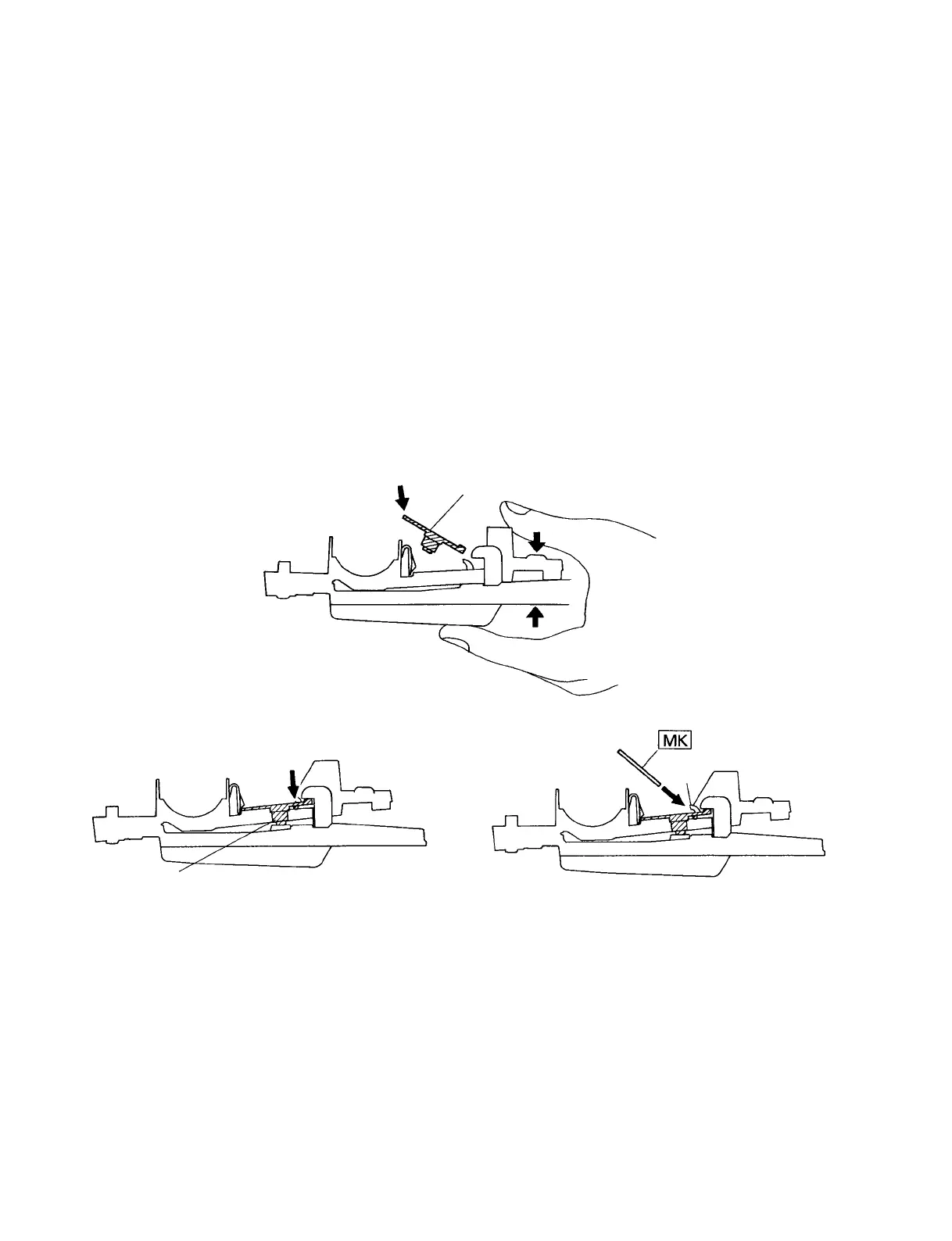

8-2 Install the rubber contacts in the assembly while
pressing the keys as shown in Figure 9.
Check that the rubber contact has been firmly placed
into position in the area indicated by the arrow in
Figure 10.
When fitting the rubber contacts, raise both ends of
the frame so that the keys do not push the rubber
contact up.
Install the MK circuit board in the assembly so that
the hooks hold it as shown in Figure 11.
(Fig. 9, Fig.10, Fig. 11)

Yamaha CS2x Specifications

General

Polyphony	64 voices
Multitimbral Capacity	16 parts
LFO	2 LFOs per voice
Keyboard	61 keys
Velocity Sensitivity	Yes
Aftertouch	No
Control	Pitch bend, Modulation wheel
Weight	6.5 kg
Year Released	1998
Type	Synthesizer
Oscillators	AWM2
Filter	Resonant filter
Effects	Reverb, Chorus, Variation
Storage	Internal memory for patches
MIDI	In, Out, Thru
Outputs	Stereo output, Headphone output
Inputs	Sustain pedal, Foot controller
Memory	128 user voices
Connections	MIDI (In/Out/Thru), Foot Controller, Foot Switch
