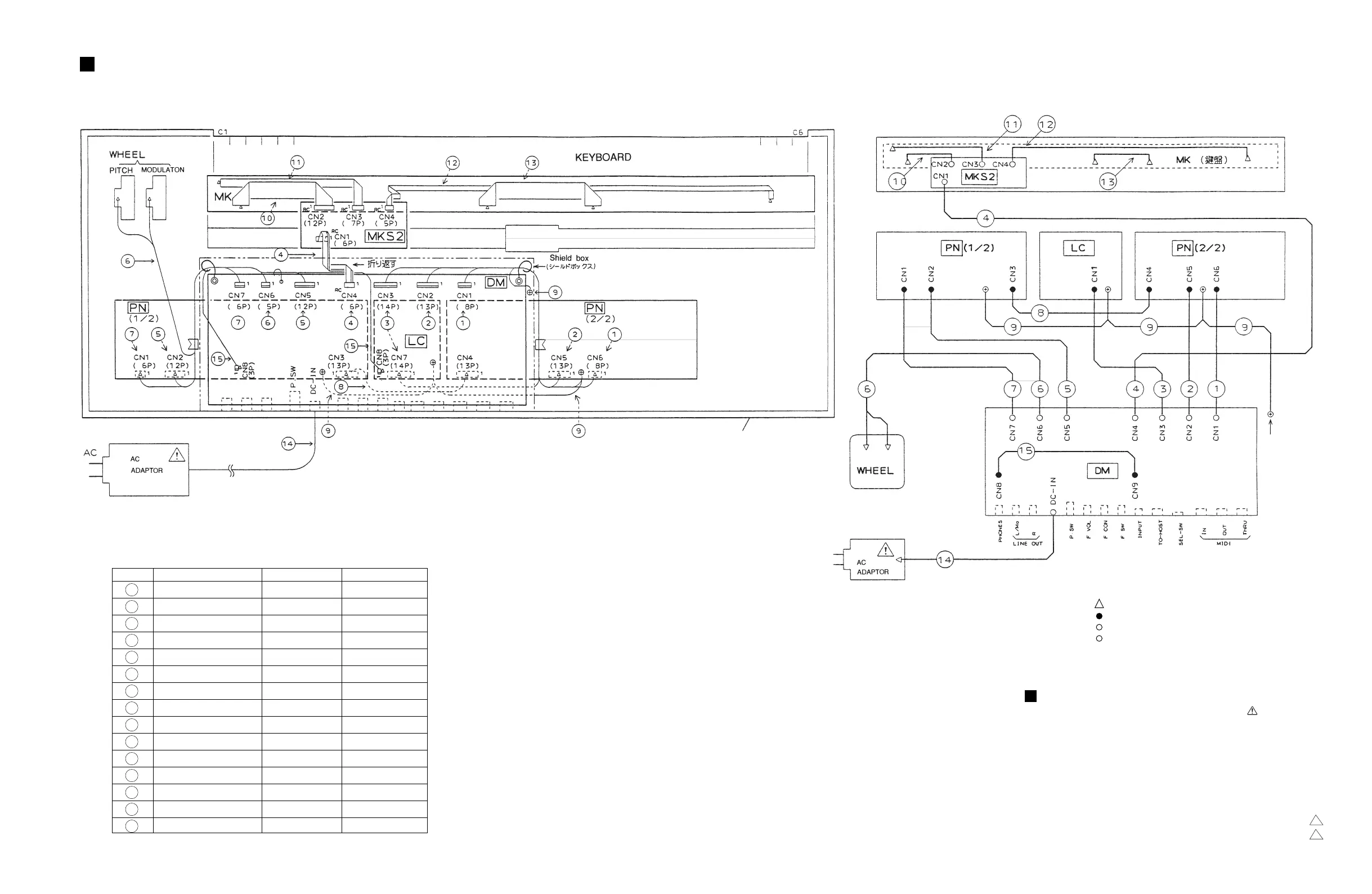

CIRCUIT BOARD LAYOUT
CONNECTOR ASSEMBLY REMARK PART OFLOCATION
5
CS2X
DS-KR 8P/250L PN
DS-KR 13P/300L PN
DS-KR 14P/450L LC
RIBBON CABLE 6P/110L -
DS-KR 12P/300L PN
WHEEL 5P/400L WHEEL
DS-KR 6P/250L PN
DS-DS 13P/160L PN
GND 1P/500L -
RIBBON CABLE 12P/190L KEYBOARD
RIBBON CABLE 7P/250L KEYBOARD
RIBBON CABLE 5P/615L KEYBOARD
RIBBON CABLE 12P/215L KEYBOARD
AC ADAPTOR - -
DM-DM 3P/350L DM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WARNING
Components having special characteristics are marked and
must be replaced with parts having specification equal to those
originally installed.
Upper case assembly
to Shield box
: Solder
: Board-in
: Connector
: Screw
REAR
FRONT
2NC-VU63910-0020 4
8811296 3
