Press a [SCENE] button to display the Scene Control parameters.
2. Press ASSIGN CTRL NO [UP/DOWN] button to select the Control
Change Number and Name.
3. Repeat steps 1 and 2 to assign the Control Change Numbers and
Names to each controller.
n
This function is especially convenient for controlling an external
MIDI device with the CS2x (see page 72).
About The SOUND CONTROL Knobs
Changes made by the SOUND CONTROL knobs can be output
as MIDI messages via the MIDI OUT terminal as assigned using
the ASSIGN CTRL NO function.
The default assignments for the SOUND CONTROL knobs as
set at the factory are as follows:
Knob 1 73: Attack Time
Knob 2 80: General Purpose 5
Knob 3 72: Release Time
Knob 4 17: General Purpose 2
Knob 5 81: General Purpose 6
Knob 6 74: Brightness
Knob 7 71: Harmonic Content
Knob 8 18: General Purpose 3
• When the CS2x receives the data assigned to each SOUND
CONTROL knob from an external MIDI device, the
parameter printed on the panel for the knob will be affected.
For example, when the message for Brightness (74) is
received from an external device, the Attack Time will be
affected when the Brightness (74) is assigned to Knob 1 and
the Attack Time (73) is assigned to Knob 3.
• Both the data assigned to the Knob using the ASSIGN CTRL
NO function and parameter data as printed on the panel for
the Knob are sent to the internal tone generator when turning
the Knob. For example, when you turn Knob 1, both
Brightness (74) and Attack Time will be affected when
Brightness (74) is assigned to Knob 1.
The table below lists the Control Change Numbers and
Names that can be assigned to the various controllers.
n
General Purpose: With the CS2x, General Purpose 1 is for FC, 2 is
for Knob 4 (ASSIGN 1/DATA), 3 is for Knob 8 (ASSIGN 2), 4 is for
no setting, 5 is for Knob 2 (DECAY), 6 is for Knob 5 (HPF CUTOFF)
and 7 and 8 are for no setting.

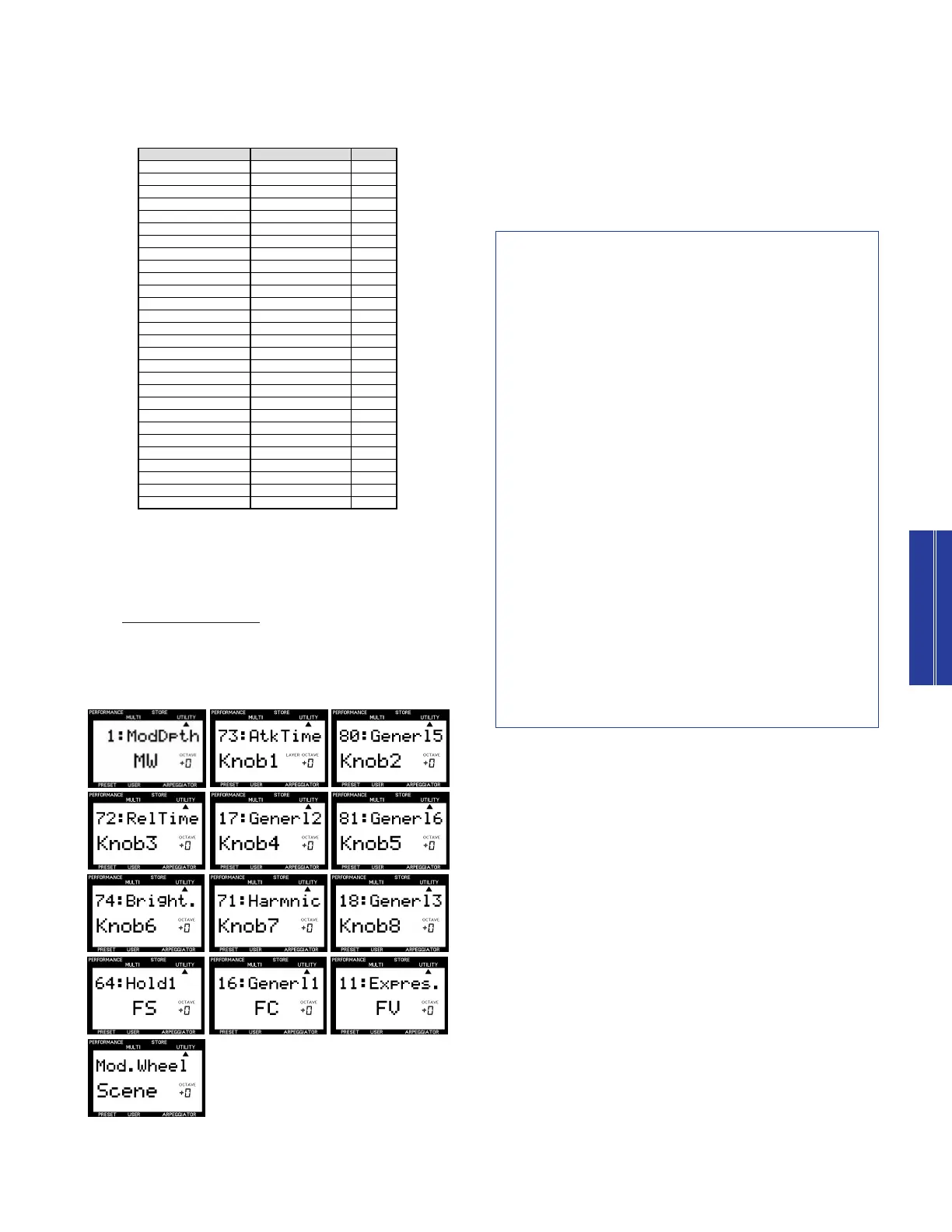

Assigning The Controllers
1. Move the panel controller (i.e. a SOUND CONTROL knob or the
MODULATION wheel) to which the Control Change Number is to
be assigned. The parameters for the controller will appear in the
LCD.
Control Change Number Name LCD
1 Modulation Depth ModDpth
5 Portament Time PortaTm
6 Data Entry MSB DataMSB
7 Main Volume MainVol
10 Panpot Panpot
11 Expression Expres.
16 General purpose1 Generl1
17 General purpose2 Generl2
18 General purpose3 Generl3
19 General purpose4 Generl4
38 Data Entry LSB DataLSB
64 Hold 1(Damper/Sustain) Hold1
65 Portament Switch PortaSW
66 Sostenute Sostnut
67 Soft Pedal Soft
71 Harmonic Contents Harmonic
72 Release Time RelTime
73 Attack Time AtkTime
74 Brightness Bright.
80 General Purpose 5 Generl5
81 General Purpose 6 Generl6
82 General Purpose 7 Generl7
83 General Purpose 8 Generl8
84 Portament Control PortaCt
91 Reverb Depth Reverb
93 Chorus Depth Chorus
94 Variation Depth Vari
Others ------- -------
Assignable Control Change Numbers and Names
