RIVAGE PM7 System Setup Guide
10
Introducing the devices
The RIVAGE PM7 system consists of the following components:
NOTE
• Please refer to the owner’s manual supplied with the host device for information on installing the I/O cards.
• For detailed information on I/O card settings, refer to the owner’s manual for the I/O card.
For the latest information on which I/O cards can be used with the system, visit the Yamaha Pro Audio website at:
http://www.yamaha.com/proaudio/

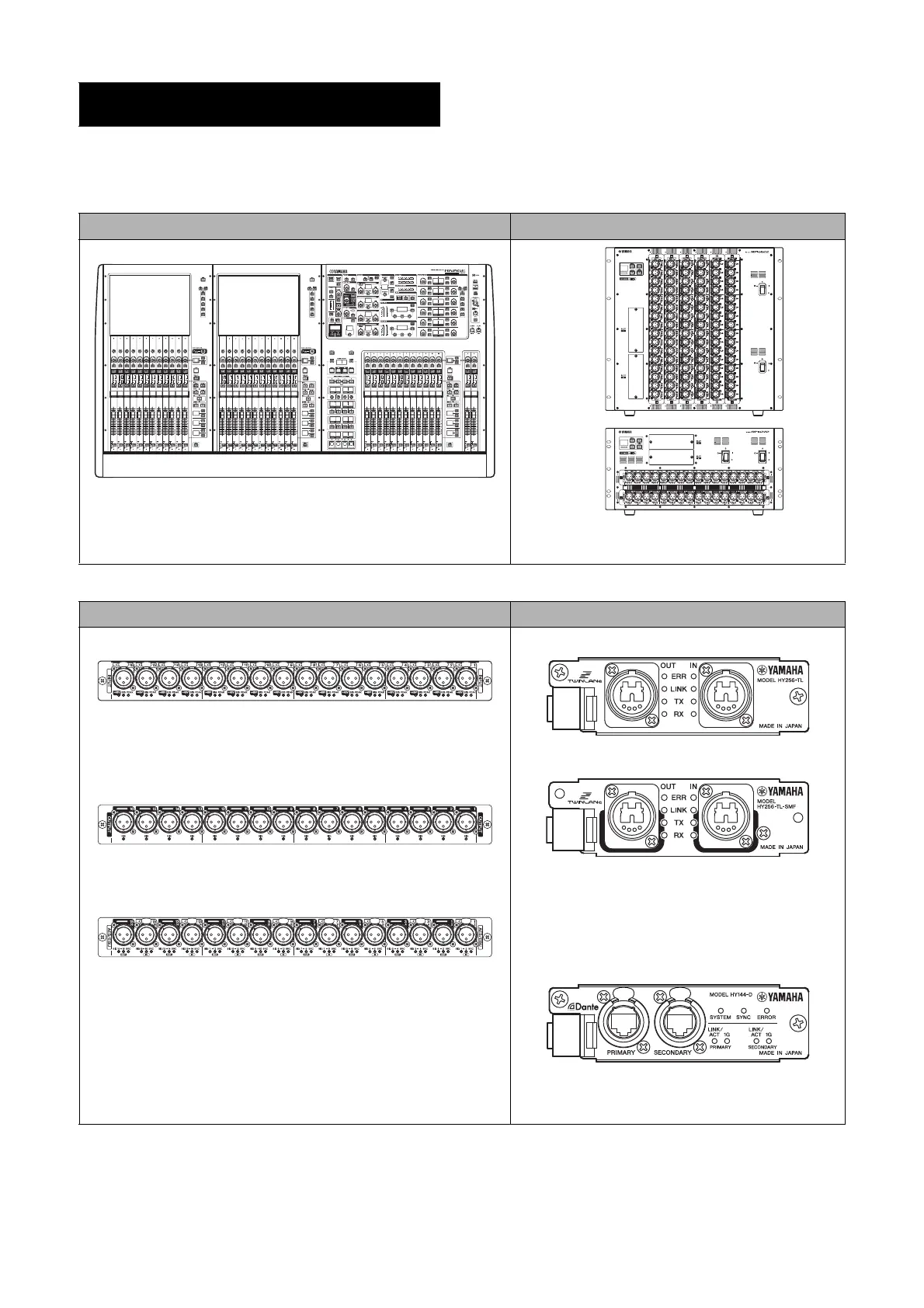

System Overview
Digital mixing console I/O racks
RPio622
RPio222
The control surfaces enable you to perform general operations on the
RIVAGE PM7 system.
The I/O racks input and output analog and digital audio
signals.
RY cards HY cards
RY16-ML-SILK
This is a 16-channel mic/line input card.
It features SILK digital processing technology that has been co-developed
by Rupert Neve Designs and Yamaha.
RY16-DA
This card features 16-channel analog outputs.
RY16-AE
This card features 16-channel digital I/Os that support the AES/EBU format.
A sampling rate converter is built in for both inputs and outputs.
HY256-TL
HY256-TL-SMF
This digital I/O card supports TWINLANe (Yamaha’s
proprietary audio transfer network protocol). It can handle
256 channels and be installed in the HY card slot.
HY256-TL uses multimode fiber optic cables. HY256-TL-
SMF uses singlemode fiber optic cables.
HY144-D
This digital I/O card supports the Dante digital audio
network. It can handle 144 channels and be installed in
the HY card slot.
