RIVAGE PM7 System Setup Guide
34

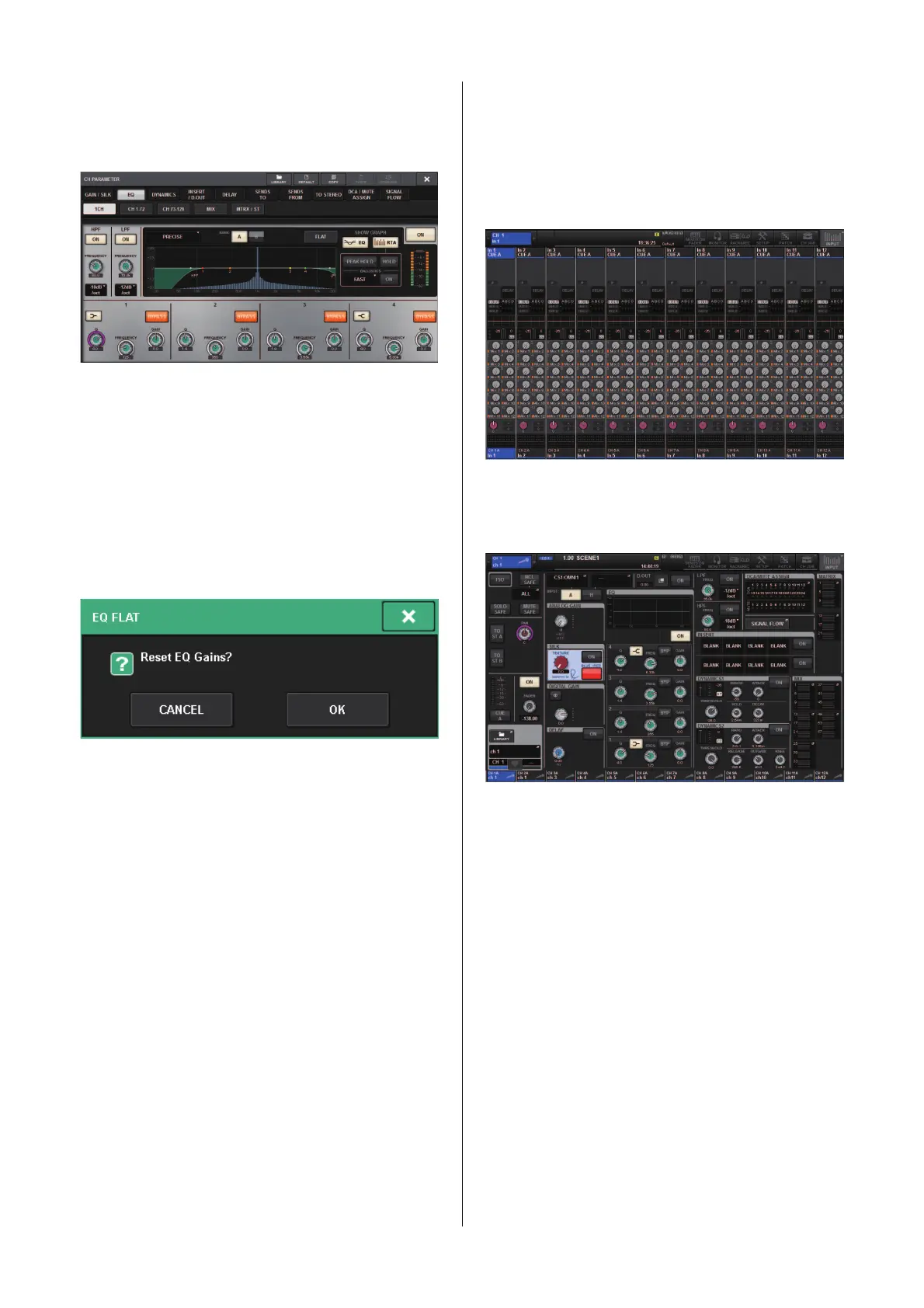

Popup windows
When you press a button or field for a specific parameter
in a screen, a window showing details or a list for that
parameter will appear. These are called “popup windows.
You can switch between popup windows using tabs as
needed. Some popup windows show several buttons called
tool buttons” at the top of the window. You can use these
tool buttons to recall libraries or to perform copy and
paste operations.
Press the “X” symbol located in the upper right corner to
close the popup window and return to the previous screen.
Dialog boxes
A dialog box like the following will appear when you need
to confirm the operation you just performed.
Press the OK button to execute the operation. The
operation will be canceled if you press the CANCEL
button.
Viewing a touch screen
The following examples describe two types of screens
displayed on the touch screens.
OVERVIEW screen
This screen shows the main parameters of 12 channels
selected as a layer.
SELECTED CHANNEL VIEW screen
This screen shows all mix parameters of the currently-
selected channel.
