Yamaha DSP-A492 User Manual

11
English
DSP-A592 only

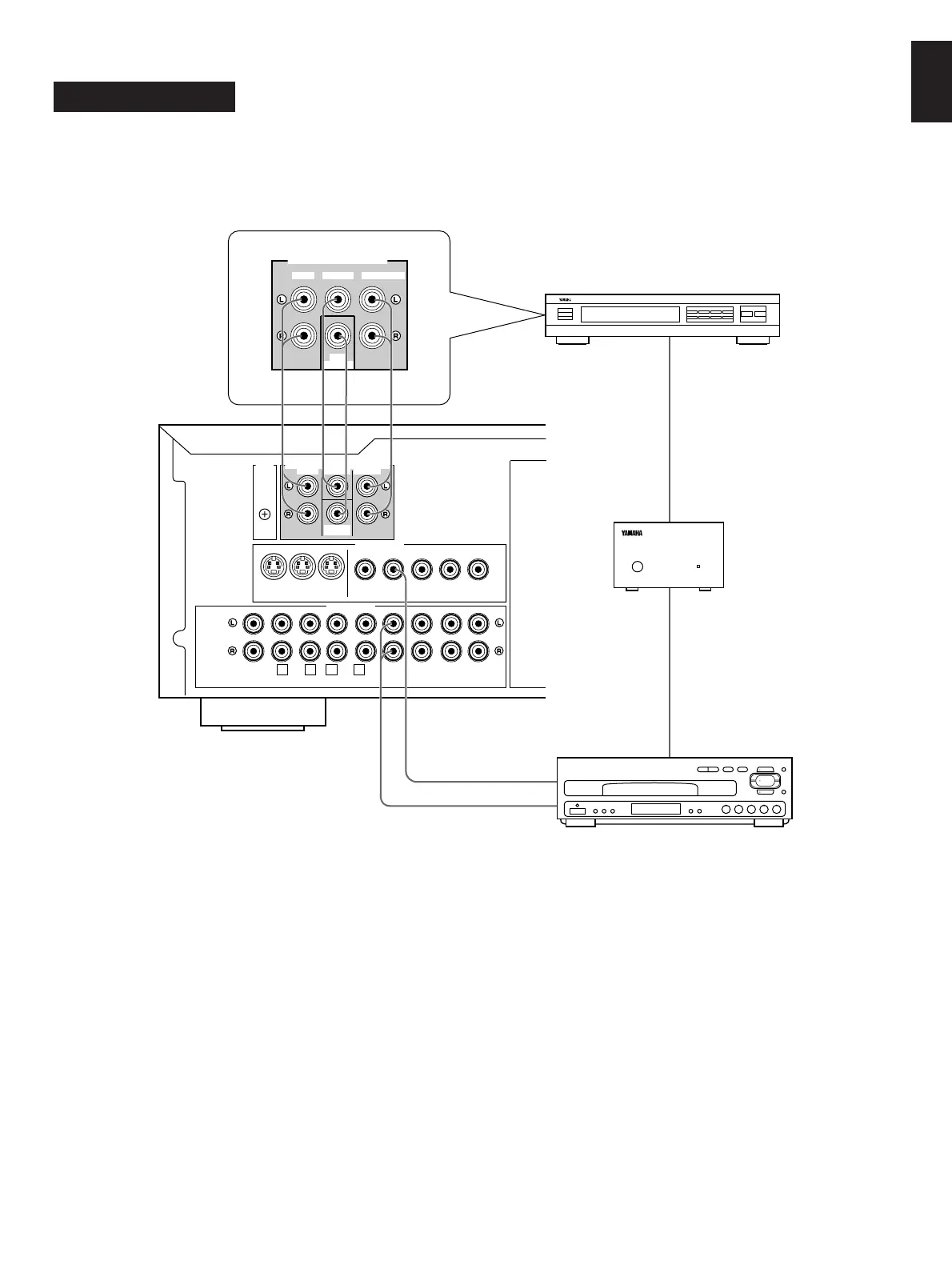

Connecting with a Dolby Digital (AC-3) Decoder
If you have a Dolby Digital (AC-3) Decoder unit or an LD player etc. which incorporates a Dolby Digital (AC-3) Decoder, its discrete
outputs can be connected to this unit.
Notes
• The laserdisc player (or another unit) must be also
connected to the DVD/LD (or TV/DBS) AUDIO SIGNAL input
terminals of this unit for playing a source with the Dolby Pro
Logic Surround decoded or in normal stereo (or monaural).
• The discrete signals input to this unit cannot be recorded by
a tape deck, MD recorder or VCR. To record a source played
on the laserdisc player (or another unit), it must be
connected to the DVD/LD (or TV/DBS) AUDIO/VIDEO
SIGNAL input terminals of this unit.
• If you made no connection to the SUBWOOFER input
terminal of this unit or you will not use a subwoofer, you
should make a setting for distributing signals at the LFE
channel to the right and left MAIN output terminals on the
Dolby Digital (AC-3) Decoder unit.
(For details, refer to the owner’s manual for the Dolby Digital
(AC-3) Decoder unit.
GND
MONITOR
OUT
DVD/LD
TV/DBS
VIDEO
IN OUT
VCR
VIDEO SIGNAL
PHONO CD TAPE ( MD ) DVD/LD TV/DBS VCR
TAPE
PB
REC
OUT
IN OUT
AUDIO SIGNAL
1
TUNER
2 3 4
6CH DISCRETE INPUT DVD/LD TV/DBS
SURROUND CENTERMAIN
SUB
WOOFER
MONITOR
OUT
S VIDEO
IN OUT
VCR
AC-3 RF
OUT
AC-3 RF
IN
DIGITAL
IN
DIGITAL
OUT
VIDEO OUT
AUDIO OUT
6CH DISCRETE OUTPUT
CENTER SURROUND
SUB
WOOFER
MAIN
Dolby Digital (AC-3) Decoder unit
RF Demodulator
Laserdisc player with AC-3 RF output or
another unit with AC-3 RF output
