Yamaha DSP-A492 User Manual

9
English
GND
MONITOR OUT DVD/LD TV/DBSIN OUTVCR
VIDEO SIGNAL
CD
TAPE
( MD )
DVD/LDPHONO TV/DBS VCR TAPE
PB
REC
OUT
IN OUT
AUDIO SIGNAL
3 4
1
TUNER
2
CENTER
OUTPUT
SUB
WOOFER
REAR
CENTER
CD
DUAL
SINGLE
CAUTION SEE INSTRUCTION MANUAL FOR CORRECT SETTING.
MAIN
SPEAKERS
A
B
MAINS
REAR 6ΩMIN./SPEAKER
SINGLE : 6ΩMIN./SPEAKER
DUAL :3ΩMIN./SPEAKER
A OR B :4ΩMIN./SPEAKER
A B :8ΩMIN./SPEAKER
CENTER
MAIN
REAR
8ΩMIN./SPEAKER
SINGLE : 8ΩMIN./SPEAKER
DUAL :4ΩMIN./SPEAKER
A OR B :8ΩMIN./SPEAKER
A B : I6 Ω MIN./SPEAKER
CENTER
MAIN
IMPEDANCE SELECTOR
GND
OUTPUT
AUDIO IN
VIDEO IN
AUDIO OUT
VIDEO OUT
VIDEO IN
AUDIO OUT
VIDEO OUT
I00W MAX. TOTAL
SWITCHED
AC OUTLETS
LINE OUT LINE IN OUTPUT OUTPUT VIDEO OUT AUDIO OUT
l0 dB 0 dB
l
MAIN
LEVEL

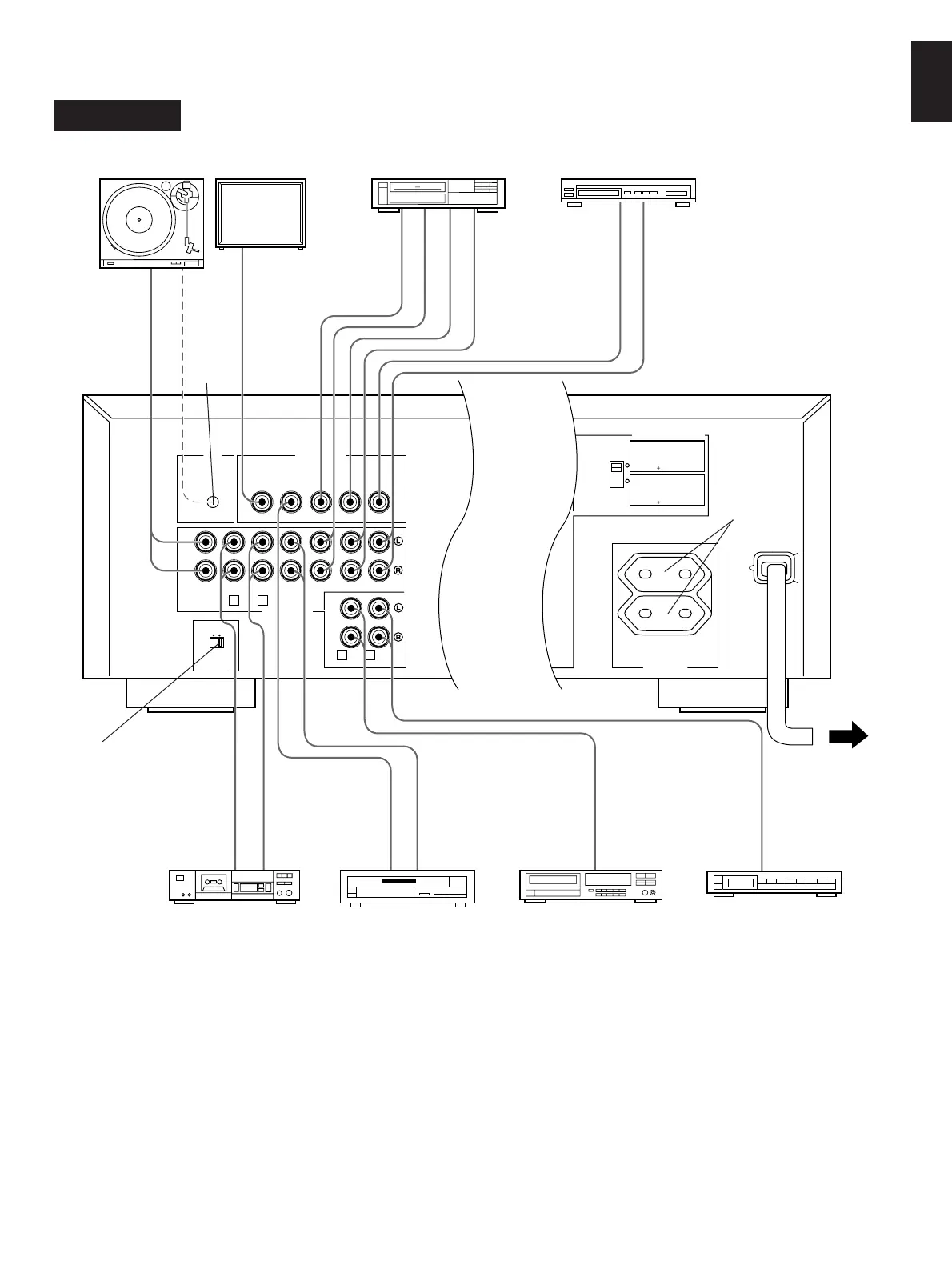

(Europe model)
To AC outlet
Turntable
LD player etc.
Video cassette recorder
TV/Satellite tuner
Tape deck,
MD recorder, etc.
See page 13.
CD player
Tuner
Monitor TV
*
2
*
1
DSP-A492
AC OUTLET(S) (SWITCHED)
(Europe and General models) .......... 2 SWITCHED OUTLETS
(U.K. model) ........................................ 1 SWITCHED OUTLET
Use these to connect the power cords from your components
to this unit.
The power to the SWITCHED outlets is controlled by this unit’s
POWER switch or the provided remote control transmitter’s
POWER key. These outlets will supply power to any
component whenever this unit is turned on.
The maximum power (total power consumption of components)
that can be connected to the SWITCHED AC OUTLET(S) is
100 watts.
GND terminal (For turntable use)
Connecting the ground wire of the turntable to the GND
terminal will normally minimize hum, but in some cases better
results may be obtained with the ground wire disconnected.
*
1
*
2
