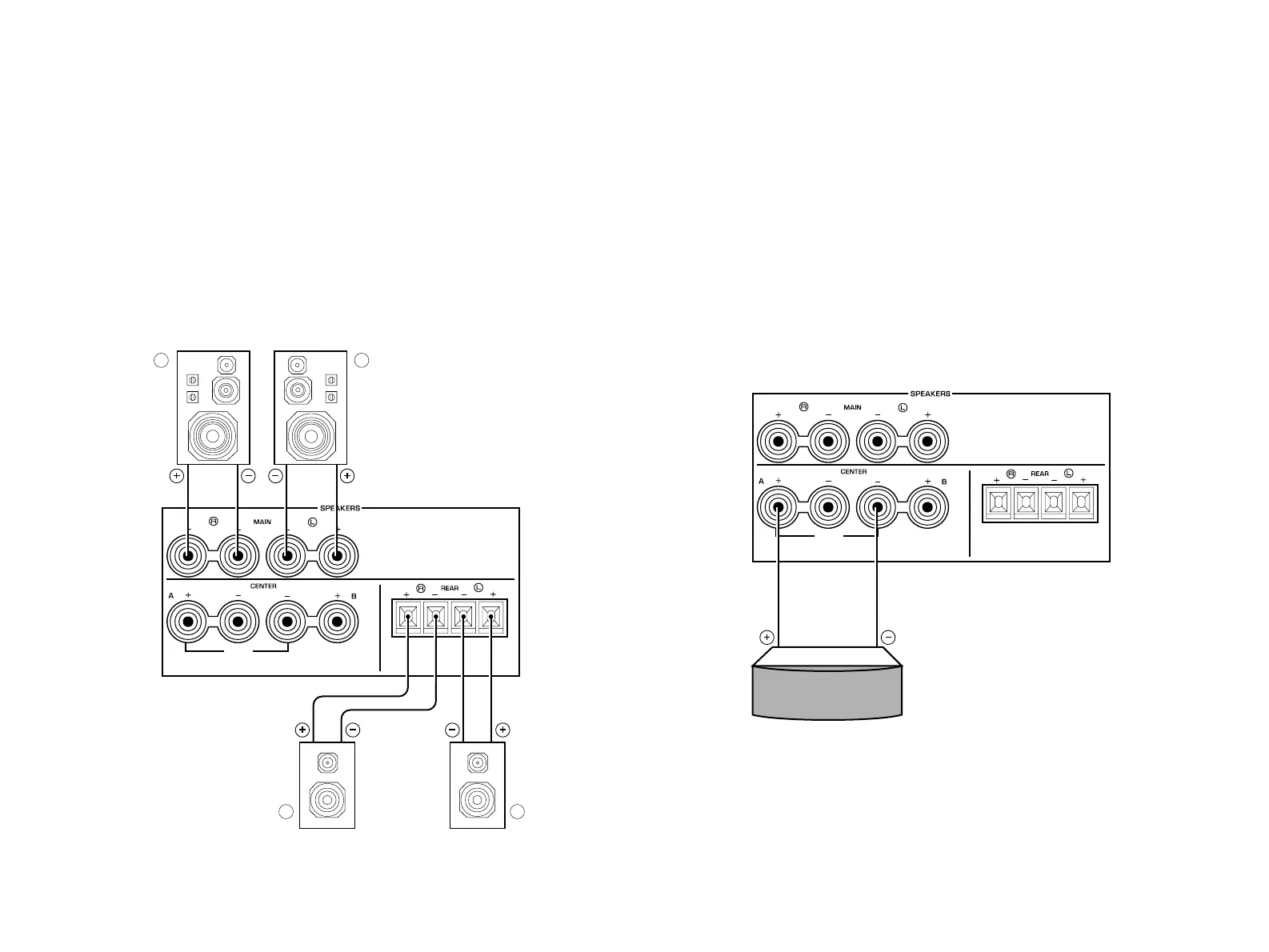

CONNECTING THE MAIN SPEAKERS AND THE
REAR EFFECT SPEAKERS TO THIS UNIT
Connect the MAIN speakers to the MAIN SPEAKERS terminals
of this unit.
Connect the REAR effect speakers to the REAR SPEAKERS
terminals of this unit.
CONNECTING THE CENTER SPEAKER(S) TO THIS
UNIT
Connect the CENTER speaker to the CENTER SPEAKERS
terminals. One or two CENTER speakers can be connected to this
unit. For the respective connections, follow the methods figured
below. If, however, you will not be using a CENTER speaker, be sure
to set the Center Mode to “PHNTM” (phantom). (See page 22.)
