Yamaha DTX6K-X - Assembling the snare and tom pads

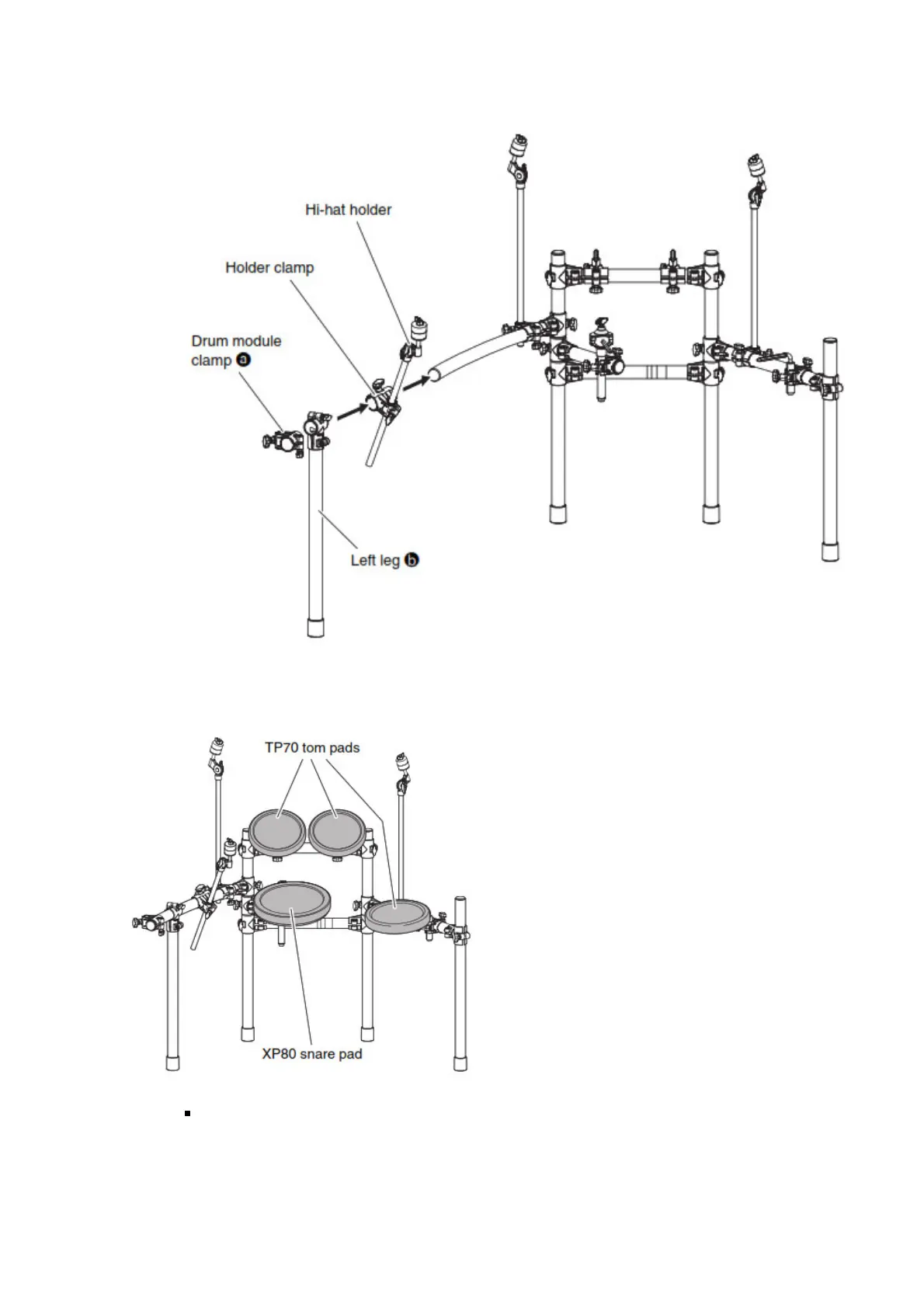

2. Assemble the holder clamp for the hi-hat holder, ensuring that it is oriented as shown in the
figure.
Following this, reassemble the left leg b and the drum module clamp a.
Assembling the snare and tom pads
Snare pad
1. Attach a clamp bolt to the snare pad and provisionally tighten (by five or six
turns).
