Yamaha DVD-E600MK2 - Internal View

DVD-E600MK2
7
DVD-E600MK2
GENERAL
Dimensions (W x H x D)
217 x 108 x 346 (8-9/16" x 4-1/4" x 13-5/8")
Weight Approx. 2.6 Kg (5 lbs. 12 oz.)
Finish
Gold color G, E models
Silver color B, G, E models
Power Supply AC230V, 50Hz
Power Consumption 14W
Standby Power Consumption (reference data) 1W
ACCESSORIES
Remote Control x 1, Battery x 2, System Control Cable x 1,
Audio Pin Cable x 1, Video Pin Cable x 1
* Specifications subject to change without prior notice.
B ....... British model
G ....... European model
E ....... South European model

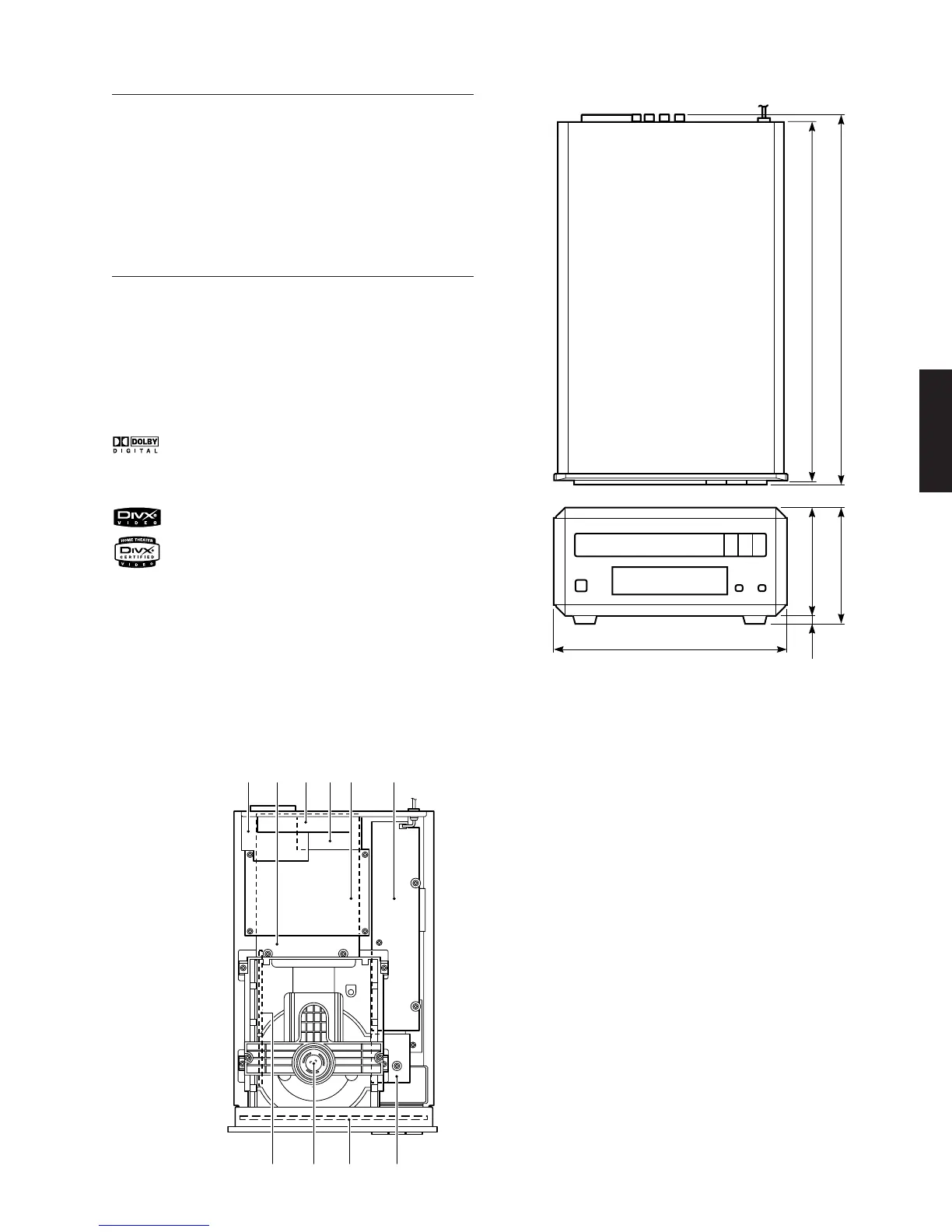

● DIMENSIONS
■ INTERNAL VIEW
Unit: mm (inch)
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
DivX, DivX Certified, and associated logos are
trademarks of DivXNetworks, Inc and are used
under license.
Kodak is a trademark of Eastman Kodak Company.
7 9
1 4 6532
1
2
3
4
5
6
7
8
9
0
MAIN (2) P.C.B.
MAIN (5) P.C.B.
MAIN (3) P.C.B.
MAIN (4) P.C.B.
MONO BOARD
POWER SUPPLY UNIT
MAIN (7) P.C.B.
DVD MECHANISM UNIT
MAIN (1) P.C.B.
MAIN (6) P.C.B.
80
217 (8-9/16")
100 (3-15/16")
8
(5/16")
108 (4-1/4")
335 (13-3/16")
346 (13-5/8")
