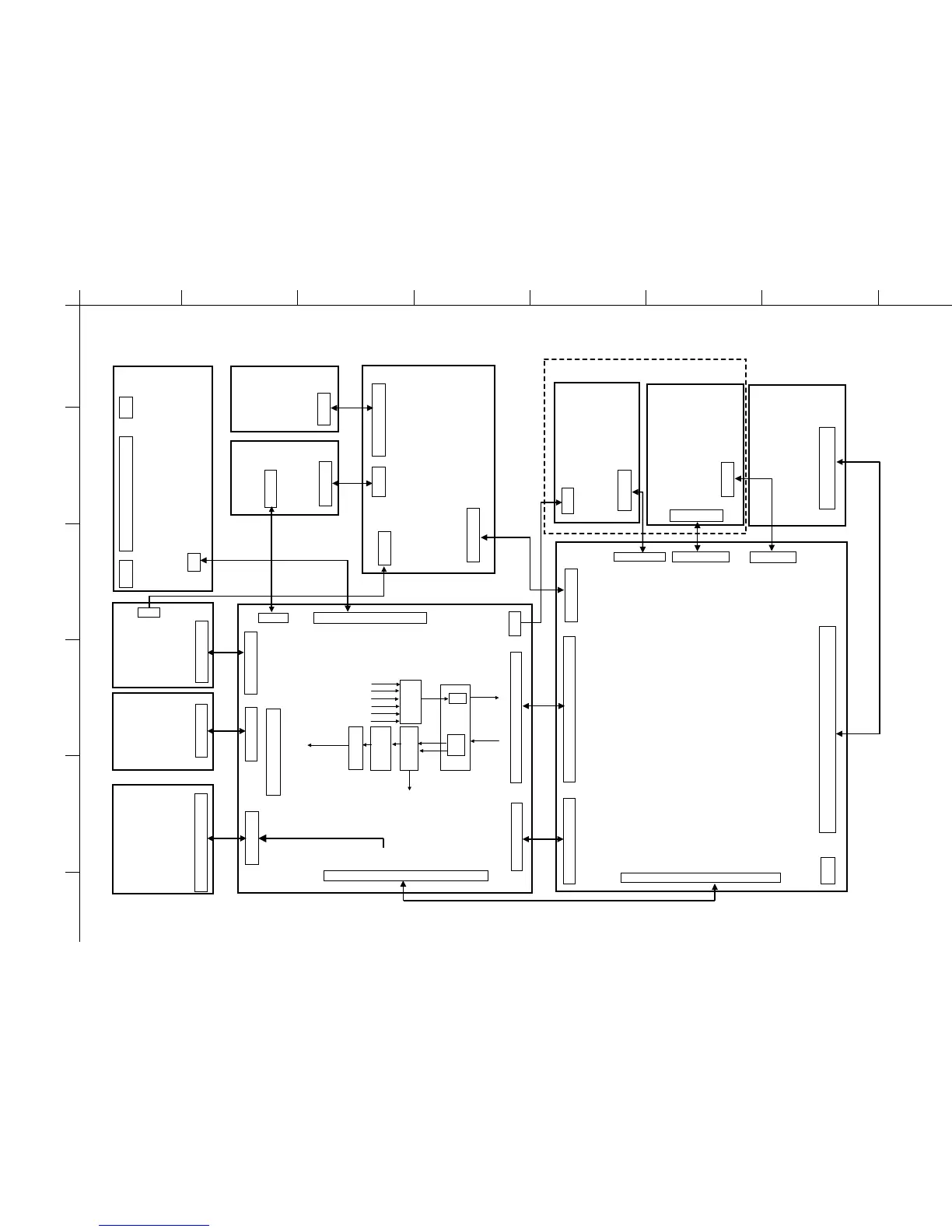

■ WIRING DIAGRAM
MONO P.C.B.
SD6.5 HDMI
1 GND
2 PCM_LR
3 GND
4 PCM_LSRS
5 GND
6 PCM_Cfe
7 GND
8 PCM_Cs (not use)
9 GND
10 SCL
11 SDA
12 GND
13 Tu-SD
14 Video_Sel (not use)
15 SDA_XM (TXD)
16 TU_STEREO
17 SCL_XM (RXD)
18 GND
19 SPDIF_IN
20 GND
21 Source_Sel1 (not use)
22 Source_Sel2 (not use)
23 MUTE_TV (S1) (not use)
24 Source_Sel3 (not use)
25 DAC_RST
26 HP_DET(Line_Det) (not use)
27 GND
28 RDS_CLK(DAC_STB) (not use)
29 RDS_DAT(MIC_DET)(not use)
30 GND
1 GND
2 GND
3 +5V_HDMI
4 +1V8
5 +1V8
6 +5VL
7 +5VL
8 +5VL
9 GND
10 +3VD
11 GND
12 STBY
13 RDS_CLK (DAC-STB not use)
14 VSCK (not use)
15 VSDA (not use)
16 GND
1 Int_Req (VSTB not use)
2 SDA_Front (VSDA not use)
3 SCL_Front (VSLK not use)
4 GND
5 LR-CLK (not use)
6 RC
7 STBY
8 VOLA (STBY not use)
9 VOLB (STBY_DET not use)
1 GND
2 P+
3 P-
4 +5V
SD5.5
Changer Controller
Tranverse KHM313
Tuner TM10VE
Power
Supply
Unit
1 +5V_XM
2 GND_D
3 +5VL
4 +5VL
5 GND_D
6 +12VA
7 GND_A
8 -12VA
9 STBY
10 IPFAIL
11 +12VL
12 GND_D
13 +5Vstby
20 GND_V
19 SY
18 GND_V
17 SC
16 GND_V
15 CVBS
14 GND_V2
13 Y
12 GND_V
11 U
10 GND_V1
9 V
8 GND_V1
7 +5VIDD
6 GND_V1
5 NC (-8Va)
4 0/2/5
3 GND_V1
2 DIG_IN
1 GND_D
1 DISC1_G
2 DISC2_G
3 DISC3_G
4 DISC4_G
5 DISC5_G
6 GND_FD
7 +5VL
8 DISC1_Y
9 DISC2_Y
10 DISC3_Y
11 DISC4_Y
12 DISC5_Y
13 GND_FD
14 KEY_B02
15 STDBY_LED
1 KEY_B01
2 GND_FD
3 KEY_B03
4 VOL_A
5 VOL_B
6 +5VL
7 GND_FD
8 Pbox_CTRL
9 Ipod_CTRL
1 +12V
2 GMD
1 GND 2 NC 3 D2-L2/NC 4 S1/L3 5 S0 6 AV_MUTE 7 GND_V 8 Y 9 GND_V 10 C 11 GND_V 12 CVBS 13 GND_V 14 G_Y 15 GND_V 16 Pb 17 GND-V 18 Pr 19 GND 20 PCM_SCLK 21 PCM_DATA0 22 GND 23 PCM_MCLK 24 PCM_LRCLK 25 GND 26 SPDIF-O 27 GND 28
PCM_AUX_IN
29 GND 30 MIC_Det
(MCU_IRQ#)
Video out
1 Pbox_CTRL
2 NC
3 NC
4 Center
5 GND_Cen
6 GND_D
7 GND-D
8 GND
9 Subwoofer
10 GND_SL_SR
11 F_L
12 F_R
13 GND_LR
14 S_R
15 S_L
1300
XM-Ready/iPod Dock
HDMI P.C.B.
MT1392
1 GND
2 +5V
3 3V3
4 +1V8
5 GND
6 SPDIF
7 GND
8 PCM_LR (not use)
9 PCM_LSRS (not use)
10 PCM_Cfe (not use)
11 PCM_CS (not use)
12 GND
13 PCM_LRCLK (not use)
14 PCM_SCLK (not use)
15 GND
16 PCM_MCLK
17 GND
18 Y7
19 GND
20 Y6
21 GND
22 Y5
23 GND
24 Y4
25 GND
26 Y3
27 GND
28 Y2
29 GND
30 Y1
31 GND
32 Y0
33 GND
34 54MHz
35 GND
36 HSYN
37 VSYN
38 GND
39 27MHz
40 GND
41 SCL
42 SDA
43 HDMI_SCL
44 HDMI_SD
45 GND
46 DAC_RST (HDMI_RST)
47 S0_L3_0 (not use)
48 S1_L2_0 (not use)
49 L2 (not use)
50 MUTE_TV (S1) (not use)
CS42418
DAC
I2S
Audio Switch
ADC
L/R
TV_in
AUX_in
XM_in
Line_in
Tuner_in
I2S
5.1CH
Pre-AM
P
Volume Ctr. PT2258
Pre-AMP From 1V to 3V
To POW
2CH
Line out
1 GND 2 +5V_XM 3 R_XM 4 GND_A 5 L_XM 6 DAC_RST 7 GND_V 8 iPod_CVBS 9 -12V 10 +12V 11 GND 12 3V3_XM 13 GND 14 +5V_iPod 15 +5V_iPod 16 SDA_XM(TXD) 17 SCL_XM(RXD) 18 MCU_IRQ 19 iPod_R 20 GND_A 21 iPod_L
4-LAYER, CLASS-5
2-LAYER, CLASS-5
1 +5VL
2 +12VL
3 GND_FD
4 +5V_EVER
5 -VKK (-24V)
iPod_in
1 Line In_L
2 GND_LineIn
3 Line In_R
4 IPod_CTRL
5 PBox_CTRL
6 Line_Det
7 GND_LineIn
15P/220
BD
8001
9P/180
AD
8000
7P/480 BD
8007
21P/80 BD
8011
5P/400 HR
8010
10P/80
AD
8009
13P/560
PH
8006
20P/280
BD Fold
8003
1100
1400
1103
1300
1302
1303
1100
1209
1102
30P Fold /280 BD
8005
16P/220
AD
8004
30P/60
BD
8002
1201
1302
9P/400 AD
8008
50P/280 AD Fold
8012
1404
1305 1101 1102
1105
1301
1101
1104
1 GND
2 VCC
3 NC (FM-Det)
4 Rch
5 STEREO
6 Lch
7 TUNED
8 SDA
9 SCL
10 PORT SEL
1502
1306
1401
1501
CN
A
CN B
1 +5V_XM
2 GND_D
3 +5VL
4 +5VL
5 GND_D
6 +12VA
7 GND_A
8 -12VA
9 STBY
10 POWER_DN
11 +12VL
12 GND_D
13 +5V_iPod
1101
1102 To XM Radio
1 +5V3
2 TR-
3 TR+
4 GND
5,6,7,8 GND
1101
1104 To iPod Dock
1 USB_PWR
2 USB_GND
3 ACC_DET
4 iPod_DET
5 NC
6 CVBS_GND
7 PLAY/REC
8 GND
9 L_iPod_AUD
10 R_iPod_AUD
11 C
12 Y
13 CVBS
14 TX_from_iPod
15 GND_AUD
16 REMOTE SENSE
17 NC
18 RX_from_iPod
19 ACC Indication
20 NC
1105 Flash Writing Port
1 +3V3
2 HOST_RX
3 HOST_TX
4 GND
5 EXT_RAM_OE
1101
XM P.C.B.
FRONT (2) P.C.B.
Standby/On key
FRONT (1) P.C.B.
Open/Close key
FRONT (3) P.C.B.
Display
FRONT (4)
P.C.B.
Video I/O and
Digital In
AV P.C.B.
Audio I/O
2-LAYER, CLASS-5
DVD 5-Disc Changer Module
1304
1301
SYSTEM CONNECTOR
