Yamaha DVR-C310 - Internal View; Repair Notes; DVD 5-Disc Changer Module; PCB Assembly Replacement

8
DVR-C310
DVR-C310
■ REPAIR NOTES
1. DVD 5-Disc Changer Module
The DVD 5-disc changer module consists of the CM
unit and tray ass'y. The DVD 5-disc changrer module
is supplied as a whole. Neither the CM unit nor tray
ass'y can be supplied independently.
2. P.C.B. ASS'Y
None of the components of the following unit can be
supplied separately. Each unit must be replaced as a
whole in case of a failure.
MONO P.C.B.
FRONT P.C.B.
AV P.C.B.
XM P.C.B.
HDMI P.C.B.
Power Supply Unit
3. Power Supply Unit
Never touch the potentiometer (VR1) installed to the
power supply unit.
VR1
Power Supply Unit

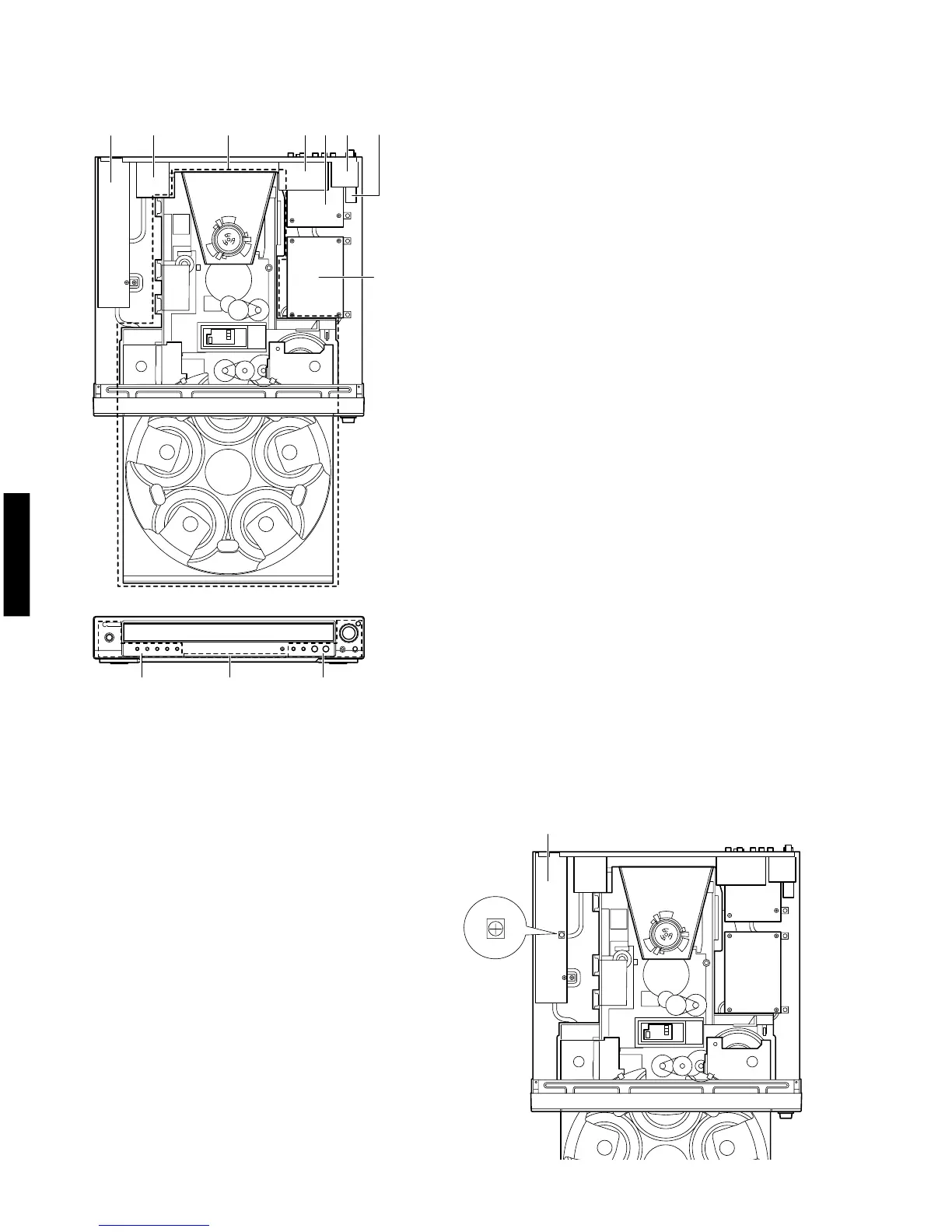

■ INTERNAL VIEW
q POWER SUPPLY UNIT
w FRONT (4) P.C.B.
e DVD 5-DISC CHANGER MODULE
r XM P.C.B.
t AV P.C.B.
y HDMI P.C.B.
u TUNER
i MONO P.C.B.
o FRONT (2) P.C.B.
!0 FRONT (3) P.C.B.
!1 FRONT (1) P.C.B.
qew r ytu
i
o!0 !1
