Yamaha DVR-C310 - Printed Circuit Board Layouts; MONO PCB Layouts

14
DVR-C310
■ PRINTED CIRCUIT BOARDS
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)

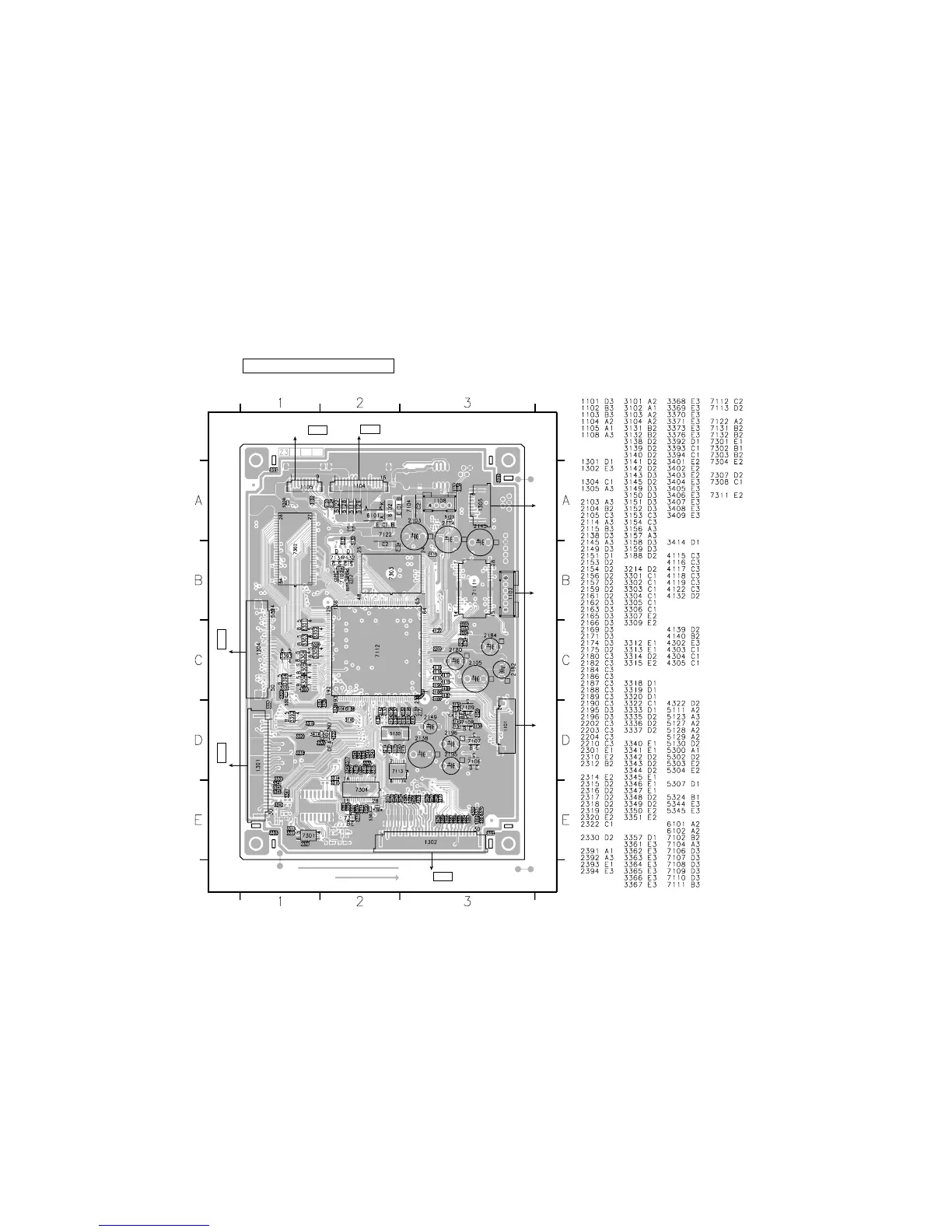

MONO Top View
AV 1101
FRONT (3) 1301
DVD 5-Disc Changer ModuleDVD 5-Disc Changer Module
DVD 5-Disc Changer Module
AV 1102
AV 1201
HDMI 1101
