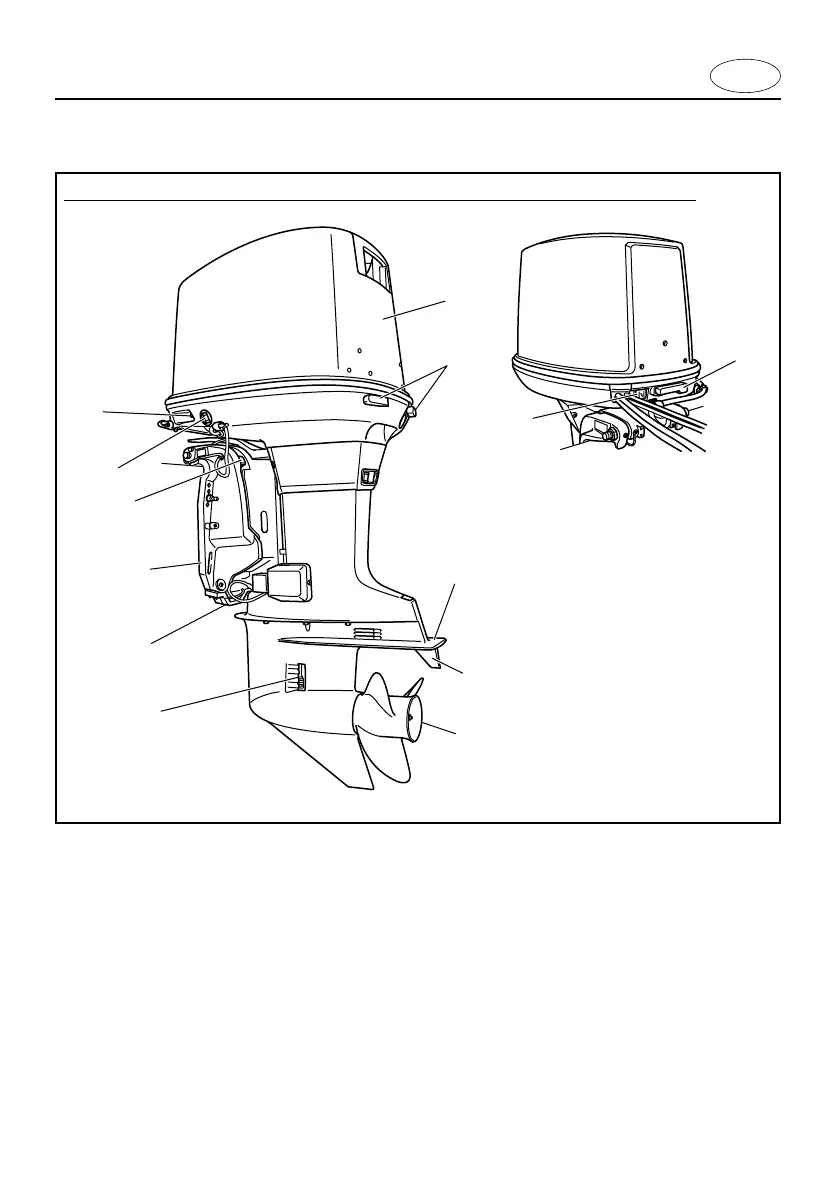

MAIN COMPONENTS
1 Top cowling
2 Cowling lock levers
3 Anti-cavitation plate
4 Trim tab(Anode)
5 Propeller
6 Cooling water inlet
7 Anode
8 Clamp bracket
9 Tilt support lever
0 Power trim/tilt switch
q Fuel joint
w Choke knob
* May not be exactly as shown; also may not be
included as standard equipment on all mod-
els.
2
w
1
2
3
4
5
6
7
8
9
0
q
E115AET, 115BET, 140BET, 150AET, L150AET, 175AET, 200AET, L200AET
