Components
34
EMU26164

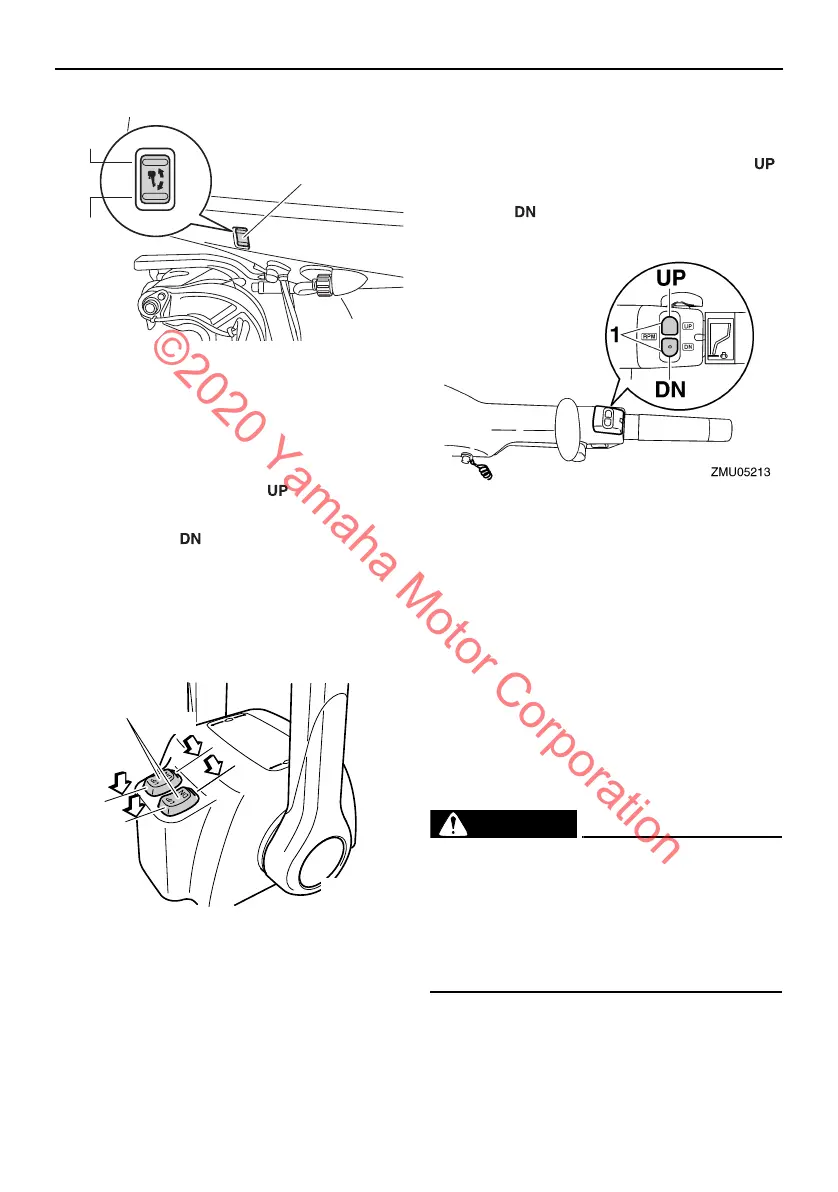

Power trim and tilt switches (twin bin-
nacle type)
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pushing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Press-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position. For instructions
on using the power trim and tilt switches, see
pages 70 and 72.
On the dual engine control, the switch on the
remote control grip controls both outboard
motors at the same time.
EMU30903
Variable trolling RPM switches
The trolling speed can be adjusted when the
outboard motor is trolling. Press the “ ”
switch to increase the trolling speed and
press the “ ” switch to decrease the trolling
speed.
The trolling speed changes approximately
50 r/min each time a switch is pressed.
If the trolling speed has been adjusted, the
engine returns to the normal trolling speed
when the engine is stopped and restarted
or when the engine speed exceeds ap-
proximately 3000 r/min.
For instructions on using the variable troll-
ing RPM switches, see page 69.
EMU26246
Trim tab with anode
EWM00841
An improperly adjusted trim tab could
cause difficult steering. Always test run af-
ter the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
1. Power trim and tilt switch
1. Power trim and tilt switch
1. Variable trolling RPM switch
