Yamaha F15 - Engine Control System; Alert System Functionality

Components
30

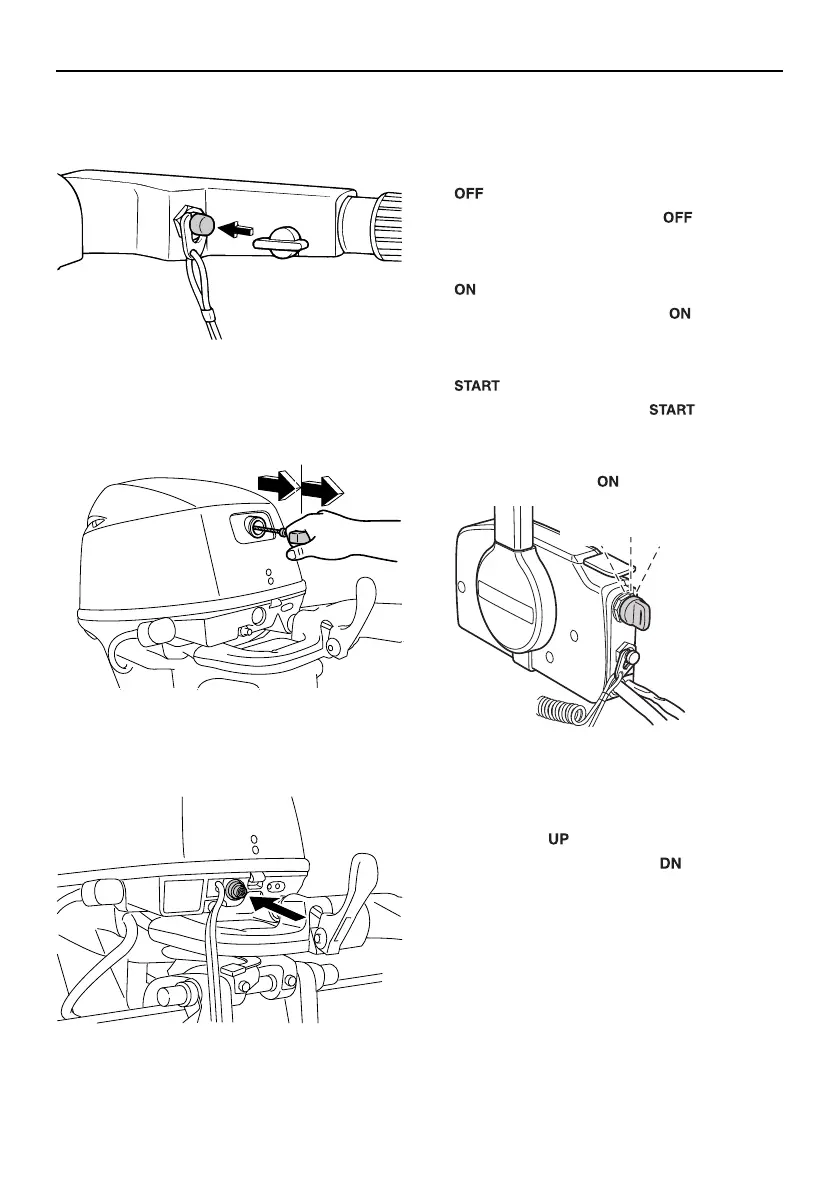

EMU26075
Manual starter handle
The manual starter handle is used to crank
and start the engine.
EMU26082
Starter button
To start the engine with the electric starter,
push the starter button.
EMU26092
Main switch
The main switch controls the ignition system;
its operation is described below.
 “” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
 “” (on)
With the main switch in the “ ” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed.
 “” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
EMU26103
Power tilt switch
The power tilt system adjusts the outboard
motor angle in relation to the transom. Push-
ing the switch “ ” (up) tilts the outboard mo-
tor up. Pressing the switch “ ” (down) tilts
the outboard motor down. When the switch is
released, the outboard motor will stop in its
current position.
ZMU02083
ZMU05536
ZMU05521
ON
STARTOFF
ZMU01718
