Operation
73
The outboard motor could shake
loose from the tilt support and fall. If
the motor cannot be trailered in the
normal running position, use an addi-
tional support device to secure it in
the tilt position. For more detailed in-
formation, see page 76.
[ECM01642]
4. Once the outboard motor is supported
with the tilt support lever, press the pow-
er trim and tilt switch “ ” (down) to re-
tract the trim rods. NOTICE: Make sure
that the trim rods retract completely
during mooring. This protects the rods
from marine growth and corrosion,
which could damage the power trim
and tilt mechanism.
[ECM00254]
EMU42702
Procedure for tilting down
1. Push the power trim and tilt switch “ ”
(up) until the outboard motor is support-
ed by the tilt rod and the tilt support lever
becomes free.
2. Release the tilt support lever.
3. Push the power trim and tilt switch “ ”
(down) to lower the outboard motor to
the desired position.

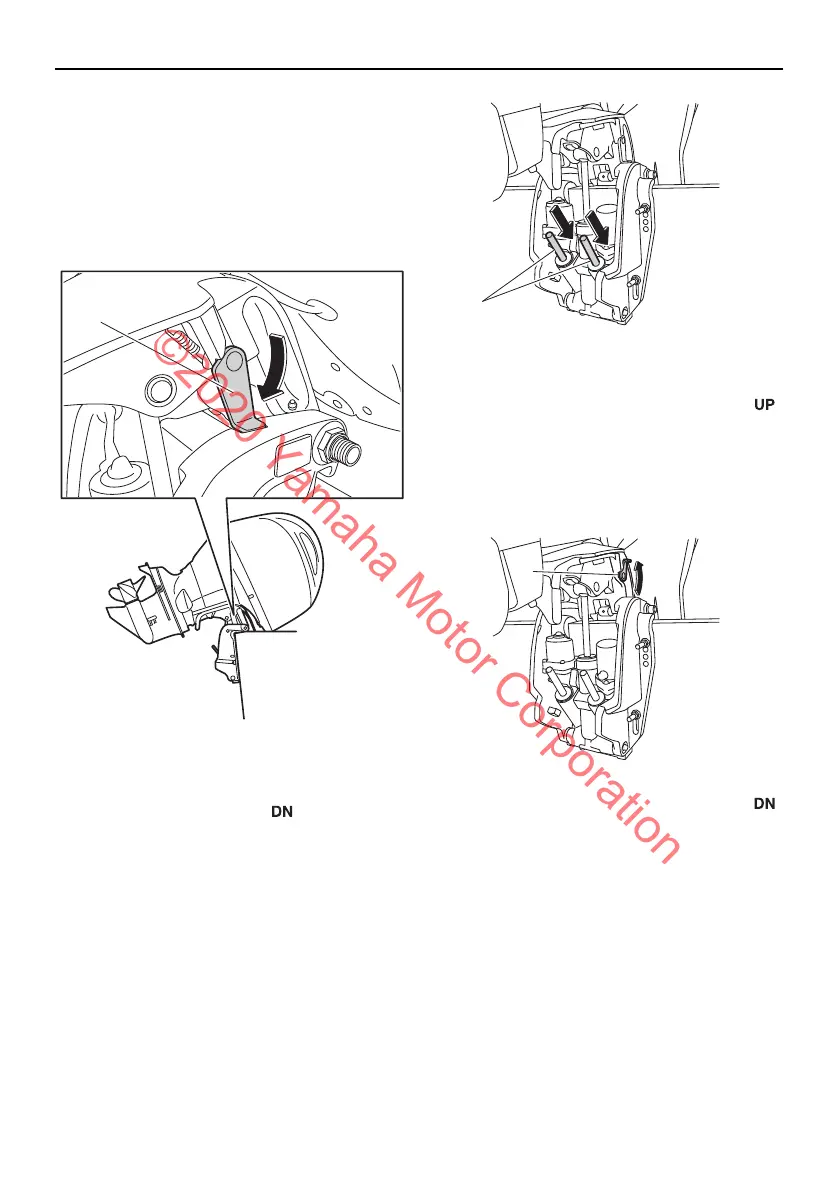

1. Tilt support lever
1
ZMU07744
1. Trim rod
1. Tilt support lever
1
ZMU07764
1
ZMU07770
