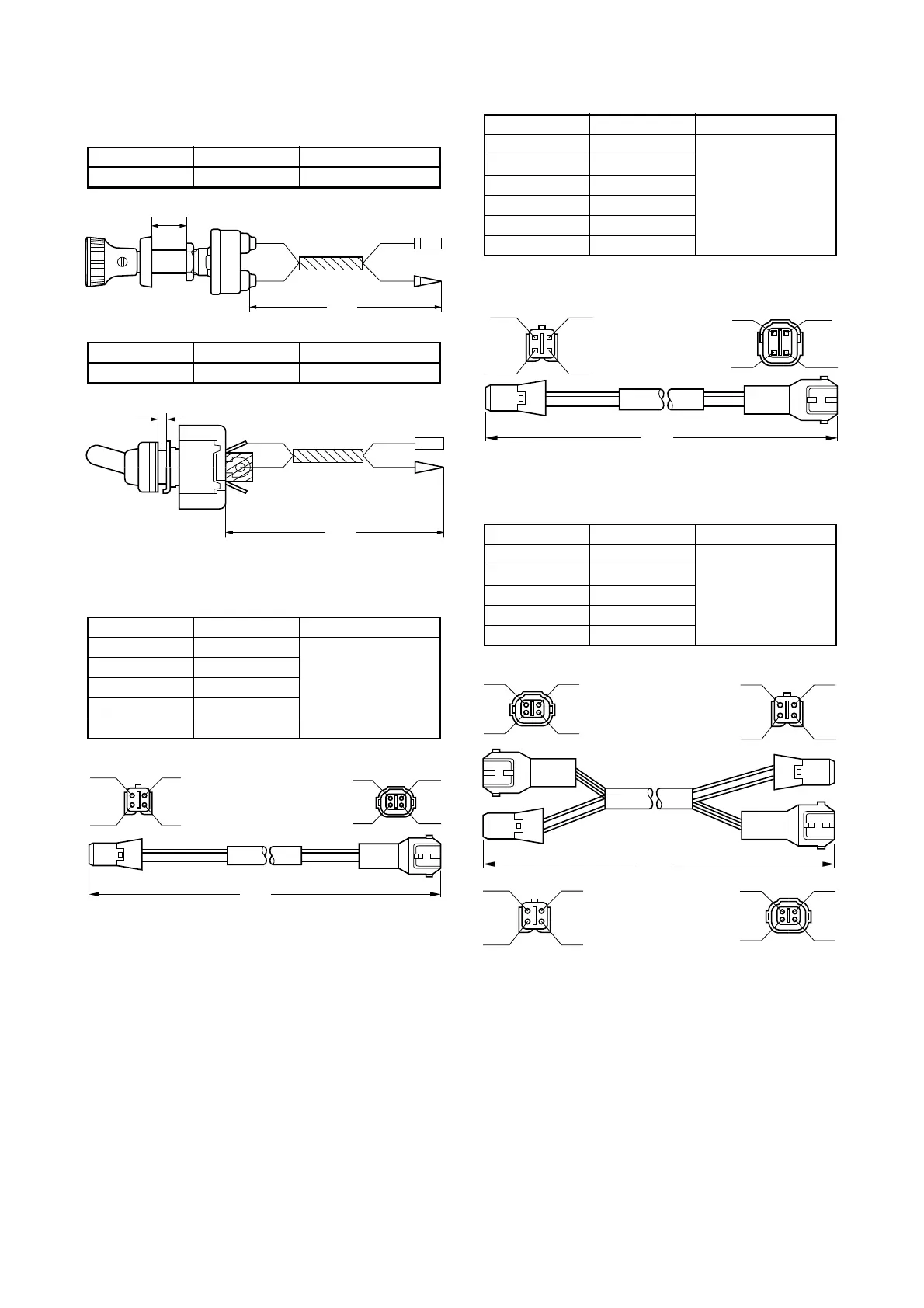

WIRE HARNESSES
LAMP SWITCH
TRIM METER LEAD
TRIM AND OIL LEAD
(*1) Mechanical RC
COMBINATION TRIM AND OIL LEAD
Part No. Length (L) Remarks
688-82520-00 10 cm (4 in) t = Max.15 mm
Part No. Length (L) Remarks
688-82526-00 10 cm (4 in) t = Max.3 mm
Part No. Length (L) Remarks
6R3-82553-30 3 m (10 ft)
Premixed models
w/ PTT
(Flat type harness)
6R3-82553-50 5 m (16 ft)
6R3-82553-70 7 m (23 ft)
6R3-82553-80 8 m (26 ft)
6R3-82553-90 9 m (29 ft)
t
L
Y
( L )
t
L
Y
( L )
Gy
P
OrB
P
Gy
BOr
( L )
Part No. Length (L) Remarks
6Y5-83653-00 5 m (16 ft)
Above F30
(*1)
,
Above 40 (3-cyl) w/
oil injection
(Unified 4-pin cou-
pler)
6Y5-83653-10 6 m (19 ft)
6Y5-83653-20 7 m (23 ft)
6Y5-83653-30 8 m (26 ft)
6Y5-83653-40 9 m (29 ft)
6Y5-83653-50 10.5 m (34 ft)
Part No. Length (L) Remarks
68F-82553-50 5 m (16 ft)
250G, L250G
68F-82553-70 7 m (23 ft)
68F-82553-80 8 m (26 ft)
68F-82553-90 9.5 m (29 ft)
68F-82553-A0 10.5 m (34 ft)
GG/R
GyP
P
Gy
G/RG
( L )
Or
Gy
B
P
B
P
Or
Gy
GG/R
G/RG
( L )
(TRIM)
(TACH)
L/W
W/R
W/RL/W

Yamaha F150BET Specifications

General

Compression Ratio	10.0:1
Full Throttle RPM Range	5000 - 6000 RPM
Lubrication System	Wet Sump
Starting System	Electric
Gear Ratio	1.86:1
Gear Shift	F-N-R
Cooling	Water Cooled
Steering	Remote
Engine Type	4-Stroke
Max Output	150 hp
Operating Range	5000 - 6000 rpm
Fuel Induction System	Electronic Fuel Injection (EFI)
Ignition System	TCI (Transistor Controlled Ignition)
Alternator Output	50 Amp
Exhaust	Through Propeller Hub (Jet Prop)
Shaft Length	25 in
Recommended Fuel	Regular unleaded gasoline (minimum 87 octane)
