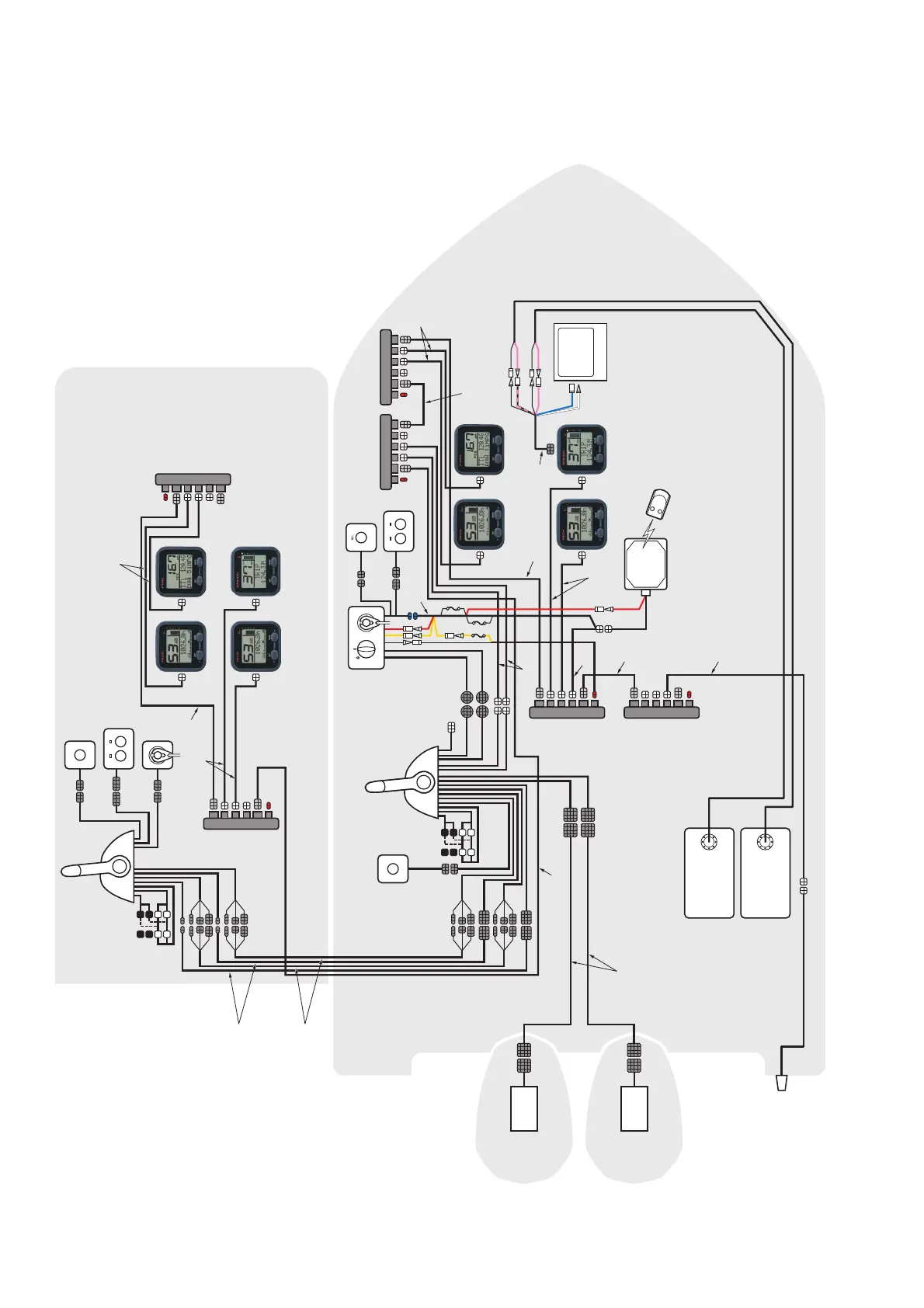

NETWORK WIRING DIAGRAMS
DUAL STATION W/ 6Y8 GAUGE TWIN ENGINE APPLICATION

Yamaha F150BET Specifications

General

Compression Ratio	10.0:1
Full Throttle RPM Range	5000 - 6000 RPM
Lubrication System	Wet Sump
Starting System	Electric
Gear Ratio	1.86:1
Gear Shift	F-N-R
Cooling	Water Cooled
Steering	Remote
Engine Type	4-Stroke
Max Output	150 hp
Operating Range	5000 - 6000 rpm
Fuel Induction System	Electronic Fuel Injection (EFI)
Ignition System	TCI (Transistor Controlled Ignition)
Alternator Output	50 Amp
Exhaust	Through Propeller Hub (Jet Prop)
Shaft Length	25 in
Recommended Fuel	Regular unleaded gasoline (minimum 87 octane)
