GB
2-5
EMU00060

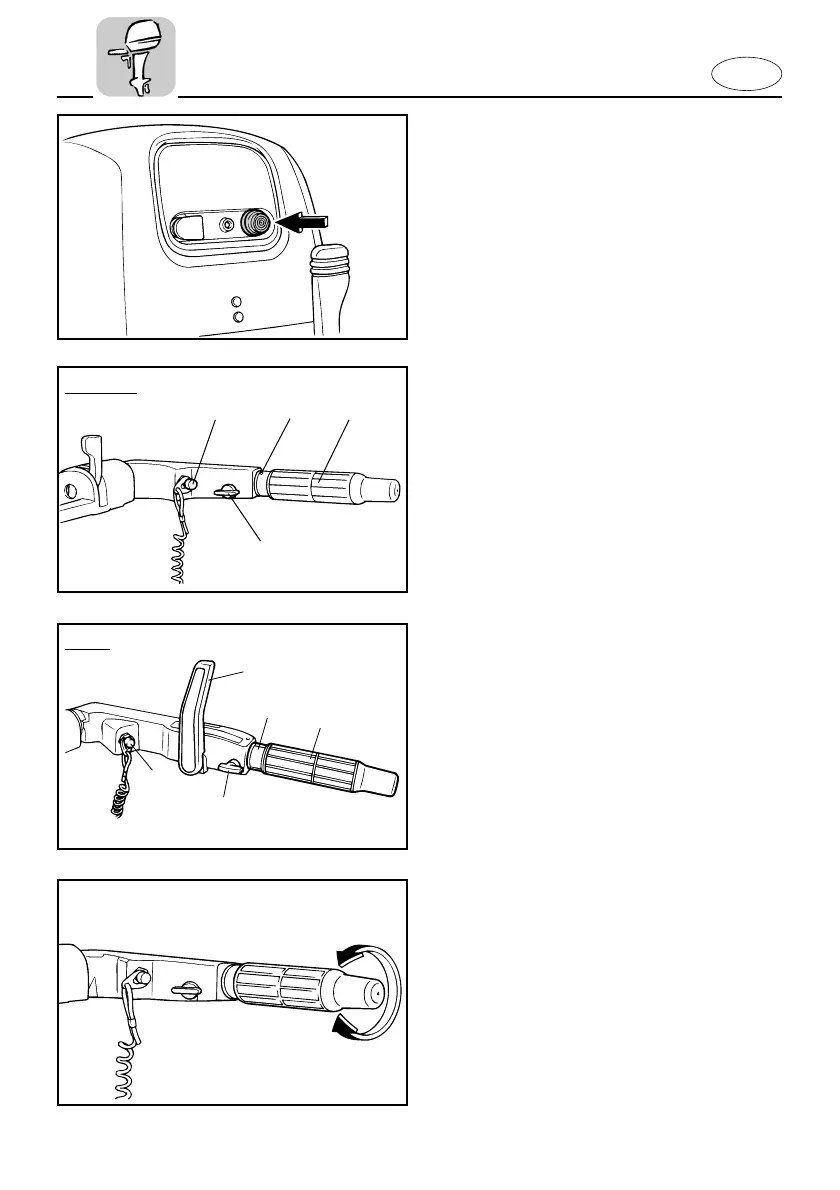

STARTER BUTTON
(for Tiller control model)
When you push the starter button, the
electric starter motor cranks the engine to
start it.
EMU00943
TILLER HANDLE
(for Tiller control model)
Moving the tiller handle sideways to
adjust the steering direction. In addition,
this handle contains the functions as fol-
lows.
1 Throttle control grip
2 Throttle indicator
3 Throttle friction adjusting knob/screw
4 Engine stop button / Engine stop lanyard
switch
5 Gear shift lever
EMU00065
Throttle Control Grip
The throttle control grip is on the tiller
handle. Turn the grip counterclockwise to
increase speed and clockwise to decrease
speed.
q
w
e
r
508015
503034
t
q
w
e
r
F9.9/F15
FT9.9
