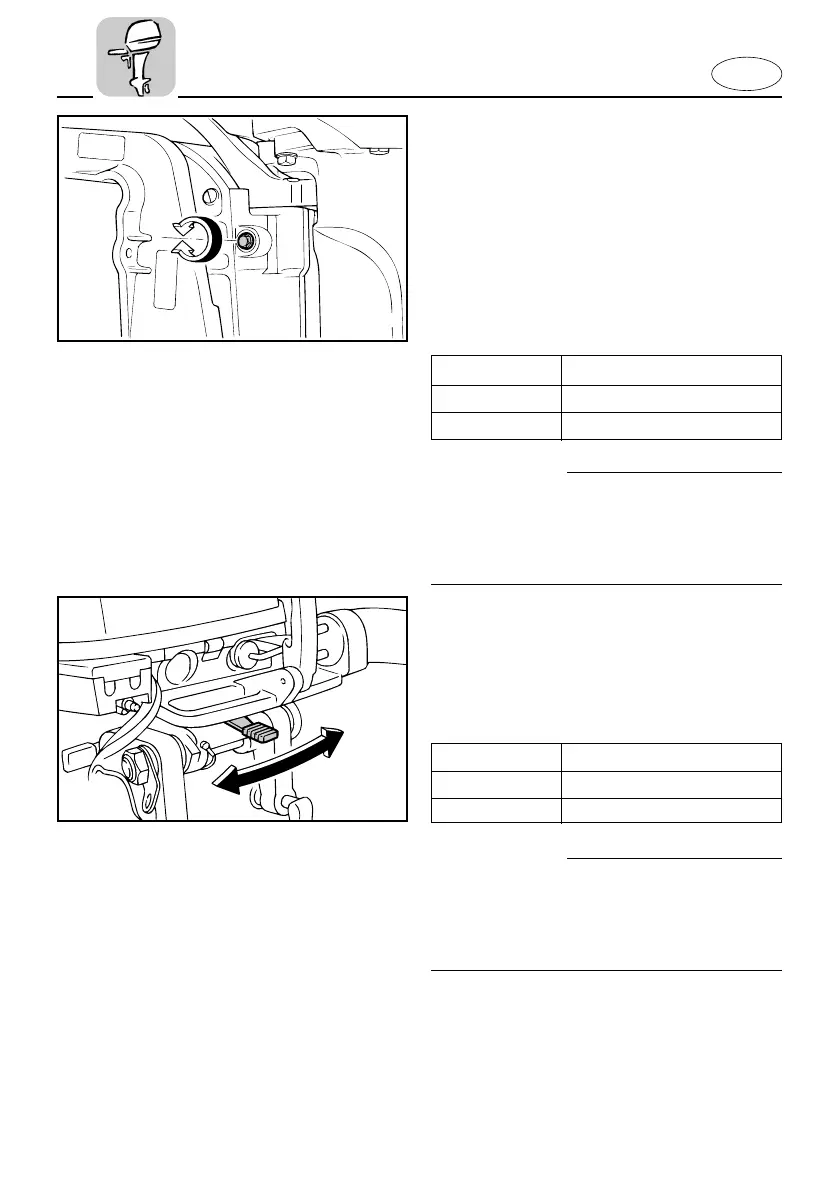

STEERING FRICTION ADJUSTING
SCREW(for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel brack-
et.
EMU01296
Adjustment
w
Do not over tighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
Resistance Screw/Bolt
Increase Turn clockwise
Decreased Turn counterclockwise
408032
Resistance Lever
Increase Turn to port
Decrease Turn to starboard
EMU01295
STEERING FRICTION ADJUSTING
LEVER
A friction device provides resistance to
steering movement. This is adjustable
according to operator preference.
w
Do not overtighten the friction adjusting
lever. If there is too much resistance, it
may be difficult to steer, which could
result in an accident.
